Maverick and Comet Repair

BRAKES - DRUM BRAKES

BRAKE SYSTEM
Self-adjusting, internal expanding duo-servo drum brakes are standard equipment on all 1970-75 Maverick and Comets. Sliding caliper front disc brakes are available as optional equipment on 1974-75 models and standard on 1976-77 models. Power assist is used on disc brake models.

DRUM BRAKES

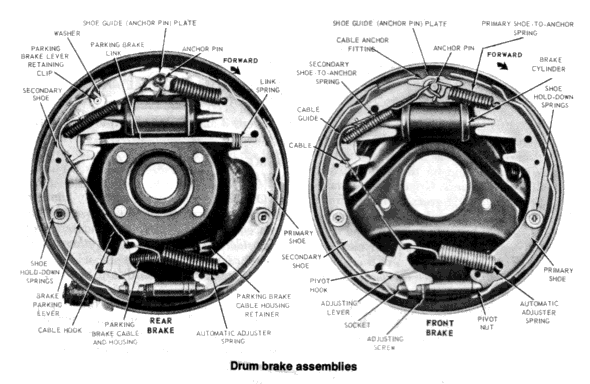

Drum brakes on all Mavericks and Comets employ single-anchor, internal-expanding, and self-adjusting brake assemblies. The automatic adjuster continuously maintains correct operating clearance between the linings and the drums by adjusting the brake in small increments in direct proportion to lining wear. When applying the brakes while backing up, the linings tend to follow the rotating drum counterclockwise, thus forcing the upper end of the primary shoe against the anchor pin. Simultaneously, the wheel cylinder pushes the upper end of the secondary shoe and cable guide outward, away from the anchor pin. This movement of the secondary shoe causes the cable to pull the adjusting lever upward and against the end of the tooth on the adjusting screw starwheel. As lining wear increases, the upward travel of the adjusting lever also increases. When the linings have worn sufficiently to allow the lever to move upward far enough, it passes over the end of the tooth and engages it. Upon release of the brakes, the adjusting spring pulls the adjuster lever downward, turning the star-wheel and expanding the brakes.
