Maverick and Comet Repair

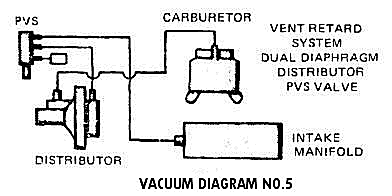

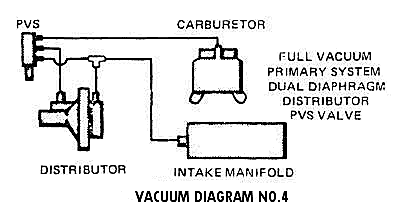

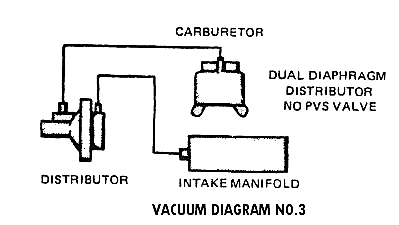

1970-1972 Vacuum Diagrams

1970- Vacuum control system will vary considerably, depending upon; type of carburetor, single or dual diaphragm distributor, and weather or not a filter is employed on system.

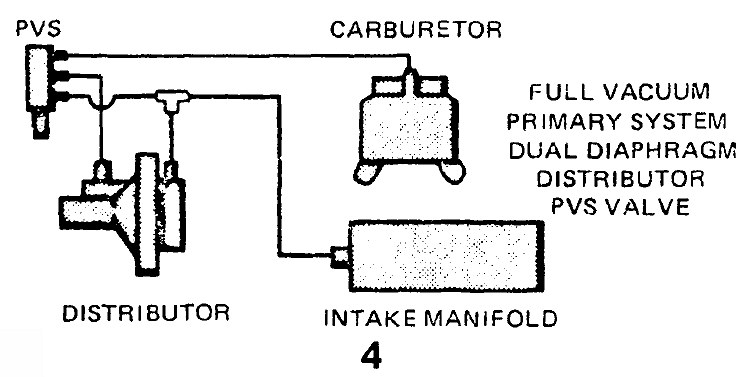

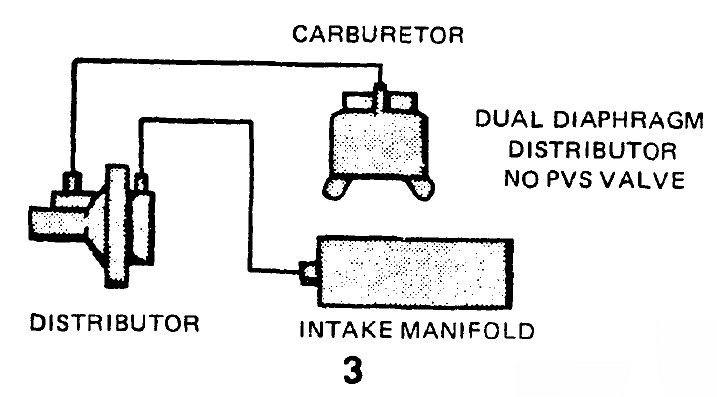

1971-72- System shown below are used depending upon engine, carburetor, and transmission, see charts below to determine usage.

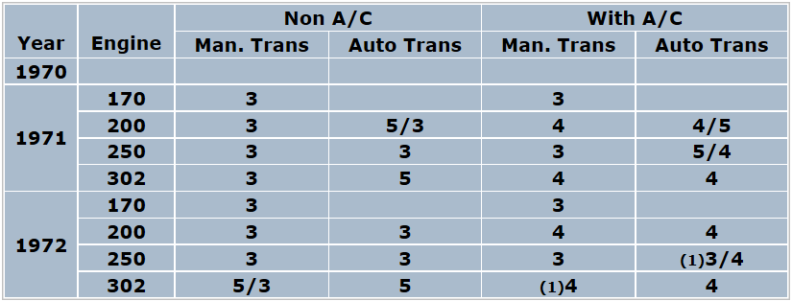

VACUUM SYSTEM USAGE

(1) - If system does not have PVS (Ported Vacuum Switch) valve, system 3 is used
