Maverick Steering
|

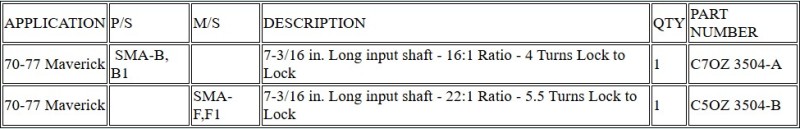

3504 - GEAR ASSY. - STEERING |
| APPLICATION | P/S | M/S | DESCRIPTION | QTY | PART NUMBER |
| 70-77 Maverick | SMA-B, B1 | 7-3/16" Long input shaft - 16:1 Ratio - 4 Turns Lock to Lock | 1 | C7OZ 3504-A | |
| 70-77 Maverick | SMA-F,F1 | 7-3/16" Long input shaft - 22:1 Ratio - 5.5 Turns Lock to Lock | 1 | C5OZ 3504-B |
|

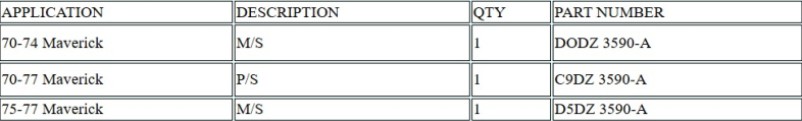

3590 ARM - STEERING GEAR SECTOR SHAFT - |
| APPLICATION | DESCRIPTION | QTY | PART NUMBER |
| 70-74 Maverick | M/S | 1 | DODZ 3590-A |
| 70-77 Maverick | P/S | 1 | C9DZ 3590-A |
| 75-77 Maverick | M/S | 1 | D5DZ 3590-A |
|

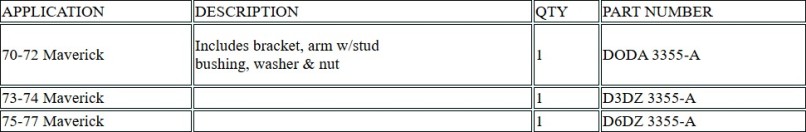

3355 ARM & BRACKET- (STEERING IDLER) |
| APPLICATION | DESCRIPTION | QTY | PART NUMBER |
| 70-72 Maverick | Includes bracket, arm w/stud bushing, washer & nut |
1 | DODA 3355-A |
| 73-74 Maverick | 1 | D3DZ 3355-A | |
| 75-77 Maverick | 1 | D6DZ 3355-A |
