Maverick and Comet Repair

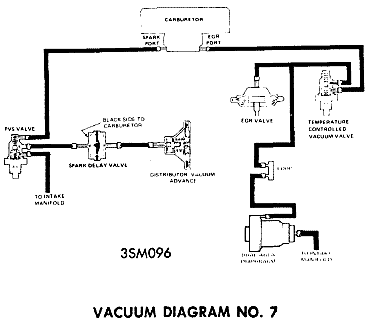

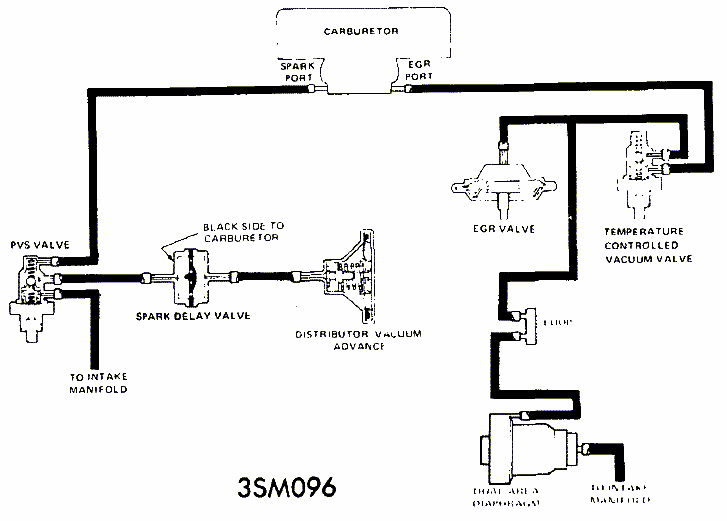

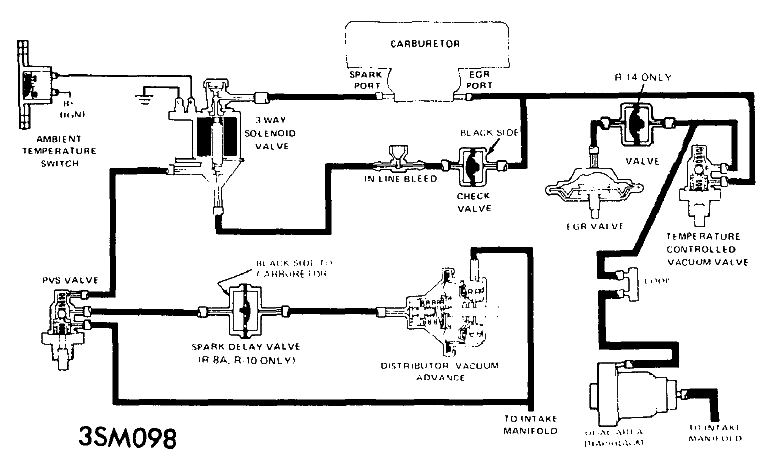

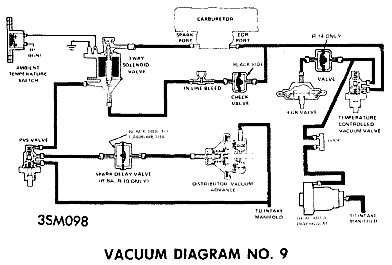

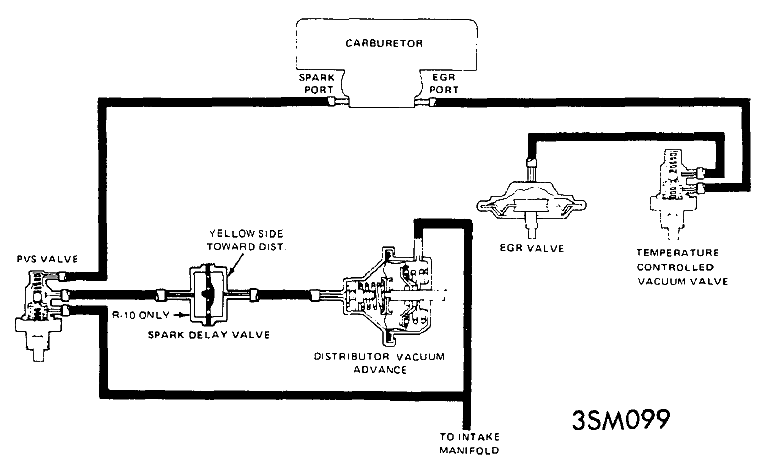

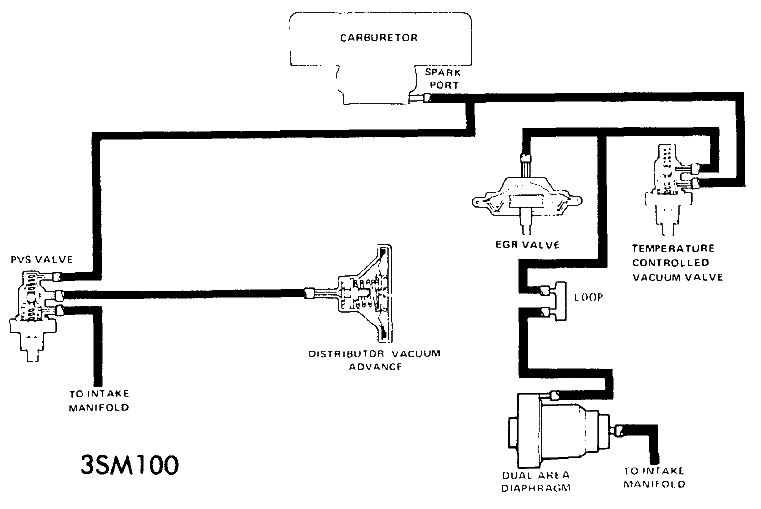

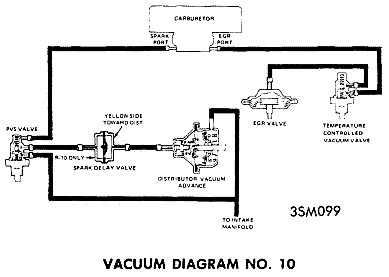

1973 Vacuum Diagrams

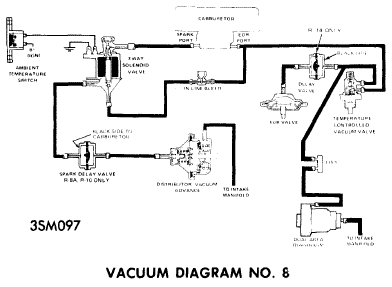

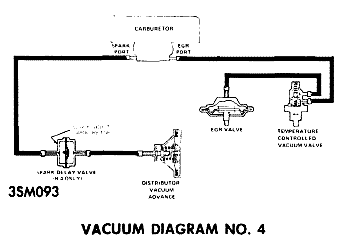

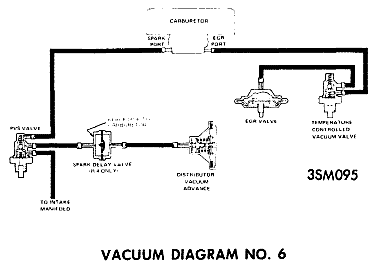

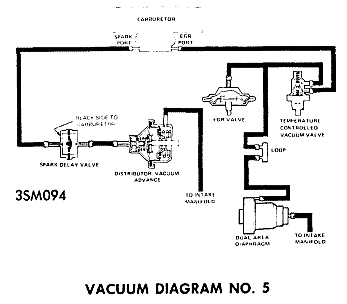

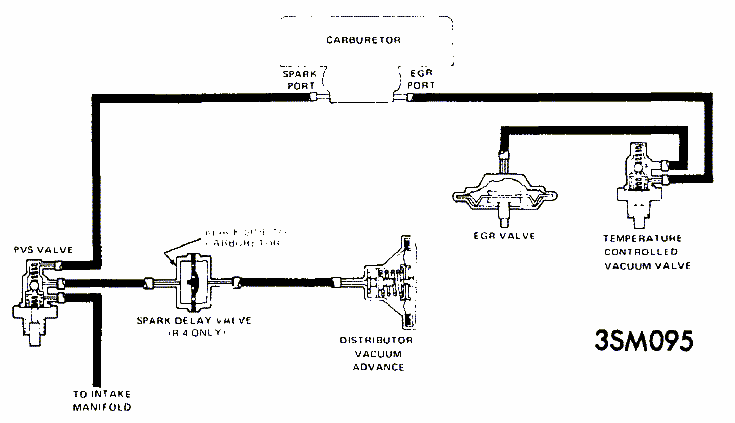

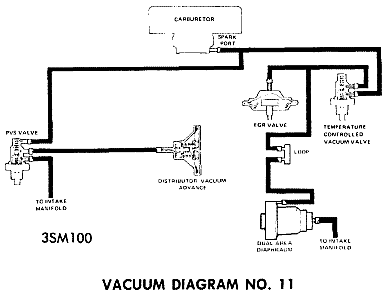

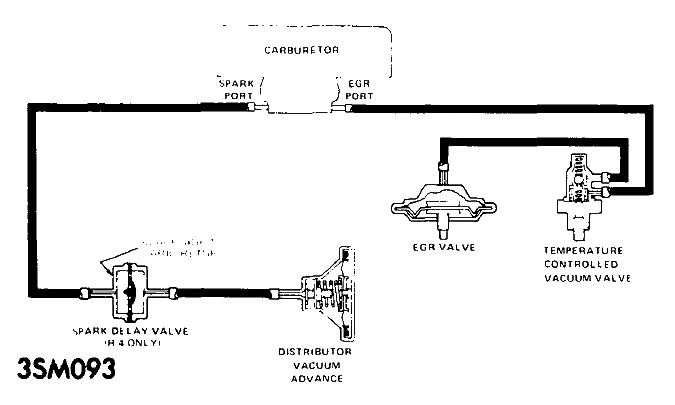

System shown below are used depending upon engine, carburetor and transmission.
See charts below to determine usage.
 |
 |
 |
 |
 |
 |
 |
 |
System shown below are used depending upon engine, carburetor and transmission.
See charts below to determine usage.
|
|
|
|
|
|
|
|
|
|
|
|
