Maverick and Comet Repair
1976 Vacuum Diagrams with A/C

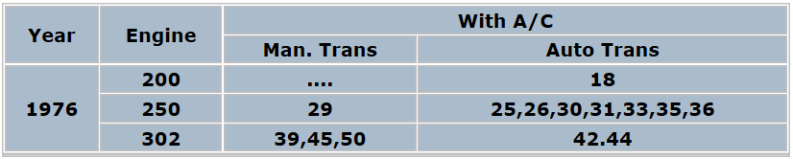

1976 System shown below are used depending upon engine, carburetor, and transmission, see charts below to determine usage.
Click Thumbnail For Larger View

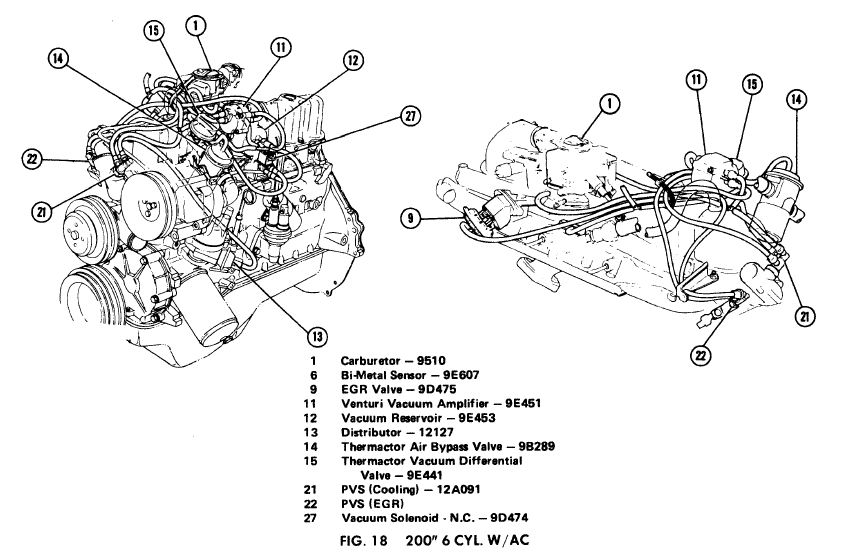

 Vacuum Diagram No.18 |
 Vacuum Diagram No.25 |

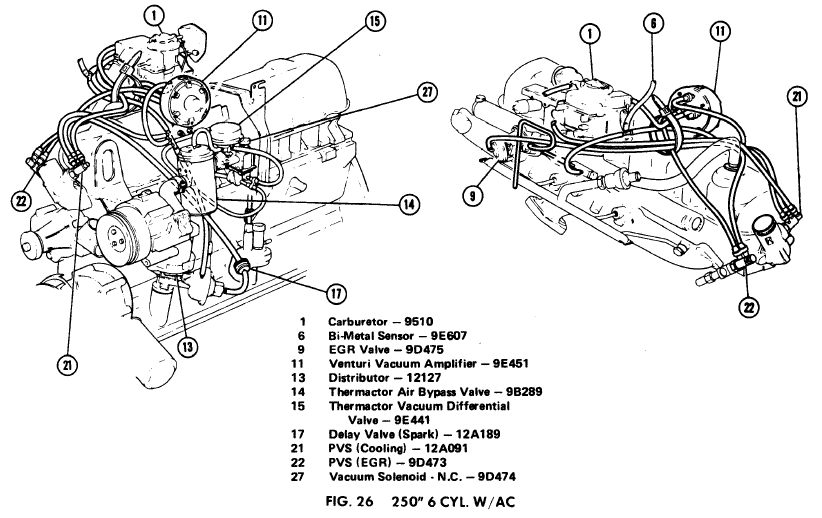

 Vacuum Diagram No.26 |

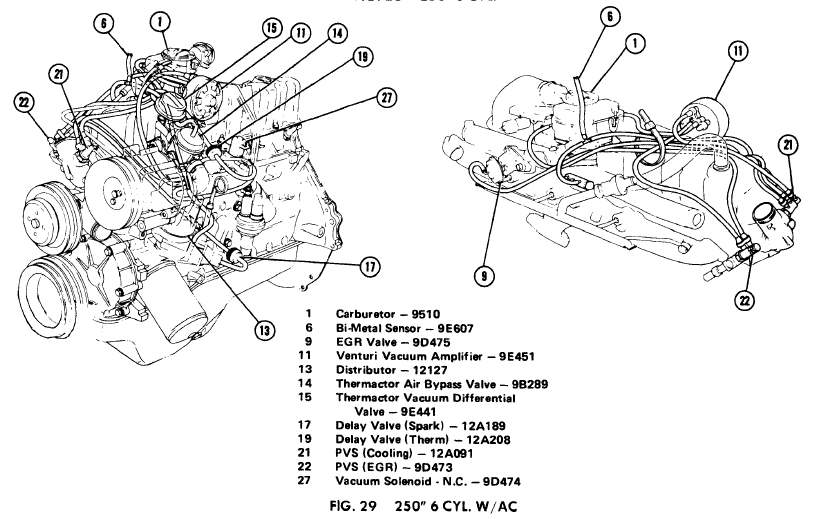

 Vacuum Diagram No.29 |
 Vacuum Diagram No.30 |
 Vacuum Diagram No.31 |
 Vacuum Diagram No.33 |
 Vacuum Diagram No.35 |
 Vacuum Diagram No.36 |
 Vacuum Diagram No.39 |
 Vacuum Diagram No.42 |
 Vacuum Diagram No.44 |
 Vacuum Diagram No.45 |
 Vacuum Diagram No.50 |
