Maverick and Comet Repair
1976 Vacuum Diagrams without A/C

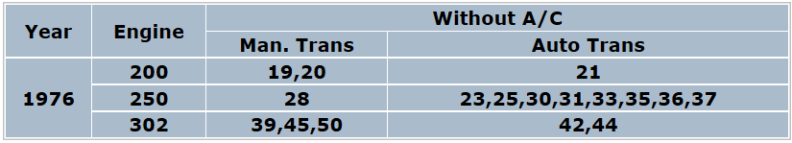

1976 System shown below are used depending upon engine, carburetor, and transmission, see charts below to determine usage.

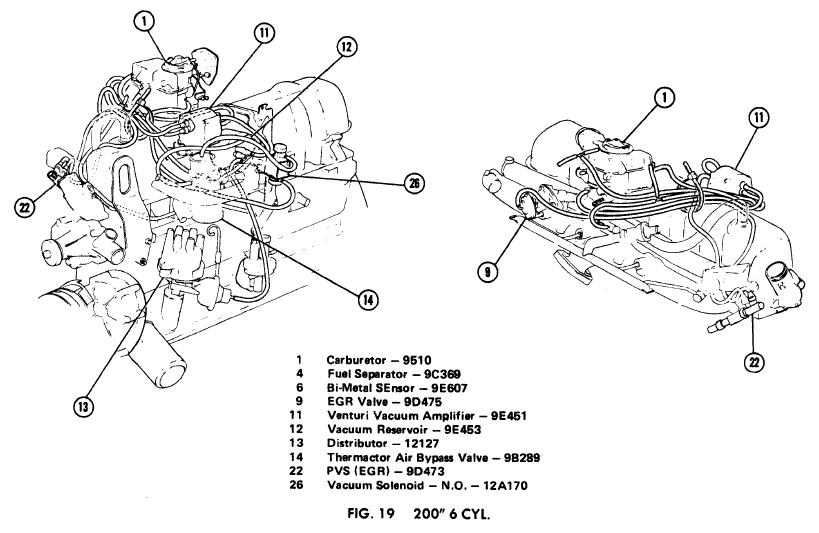

 Vacuum Diagram No.19 |

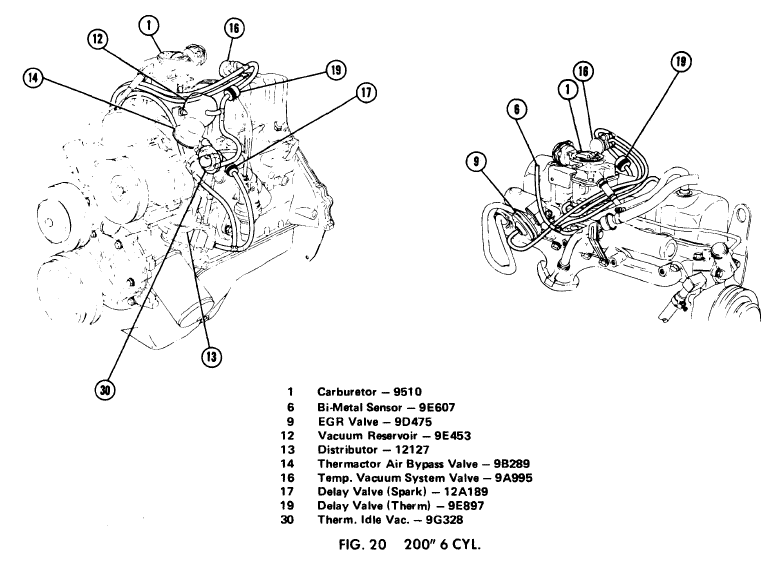

 Vacuum Diagram No.20 |

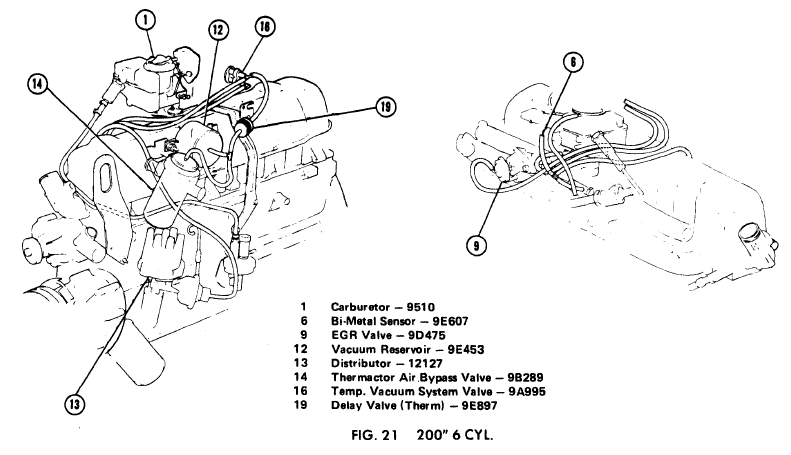

 Vacuum Diagram No.21 |

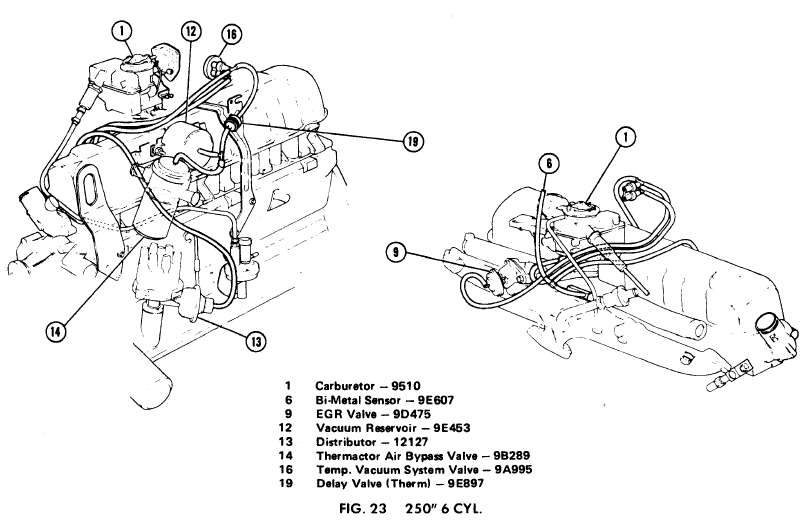

 Vacuum Diagram No.23 |

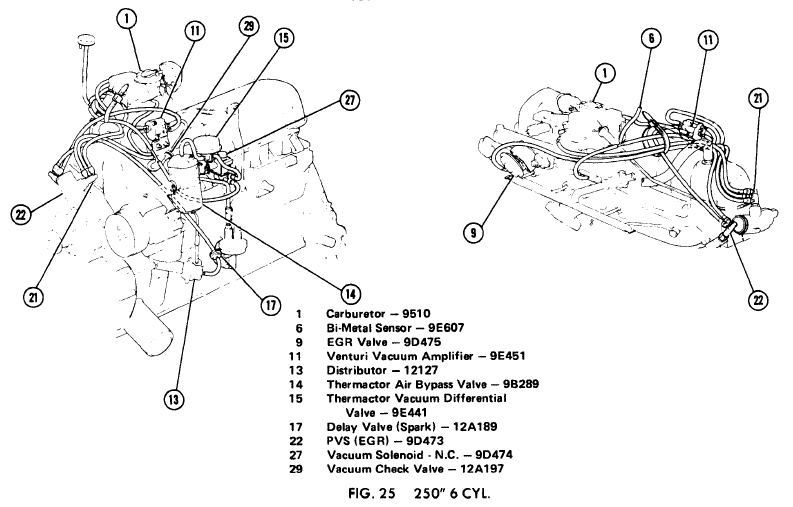

 Vacuum Diagram No.25 |

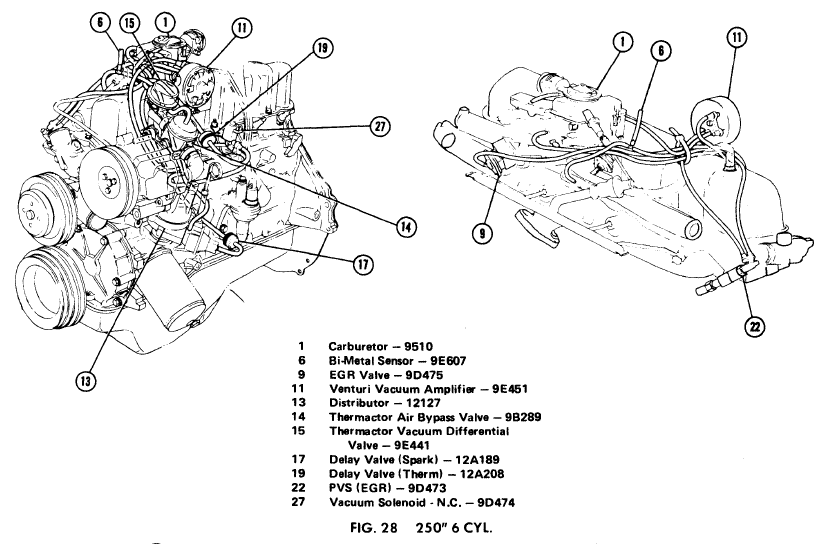

 Vacuum Diagram No.28 |

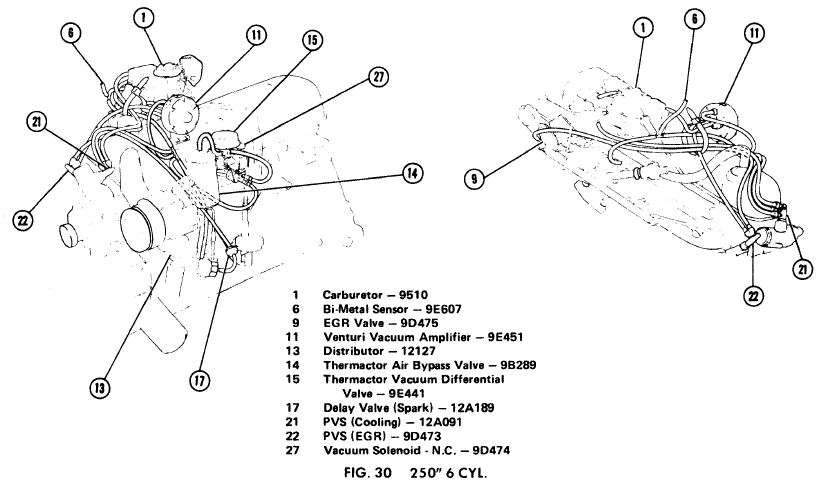

 Vacuum Diagram No.30 |

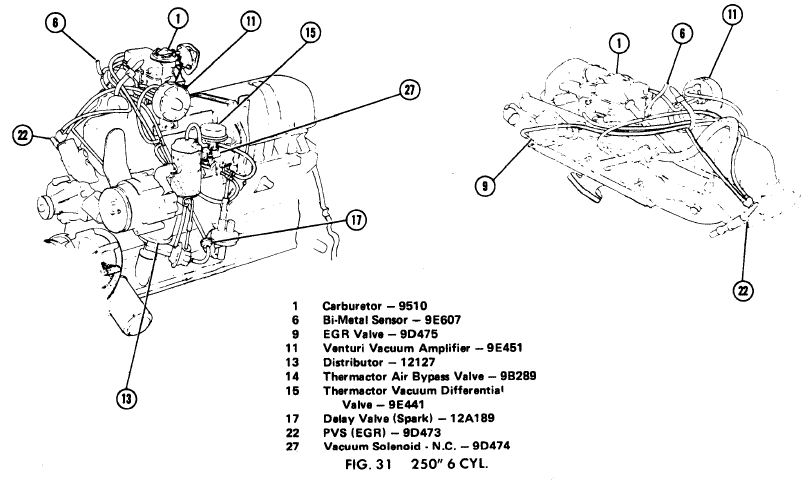

 Vacuum Diagram No.31 |

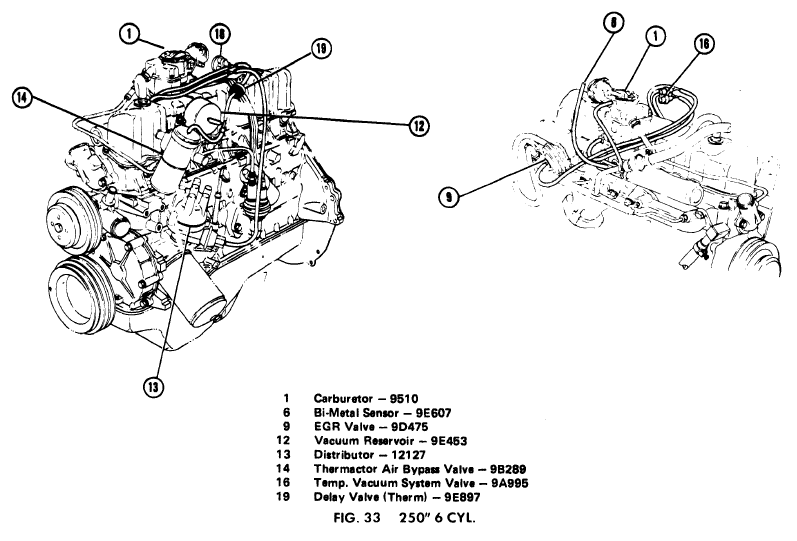

 Vacuum Diagram No.33 |

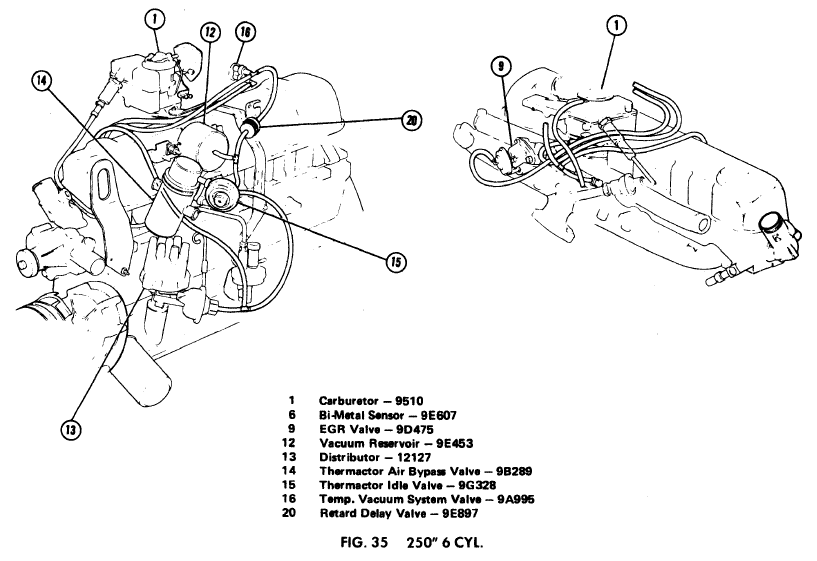

 Vacuum Diagram No.35 |

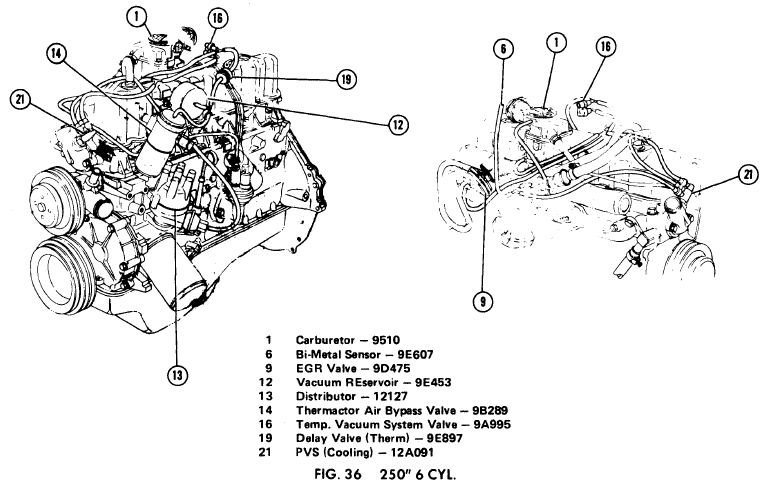

 Vacuum Diagram No.36 |

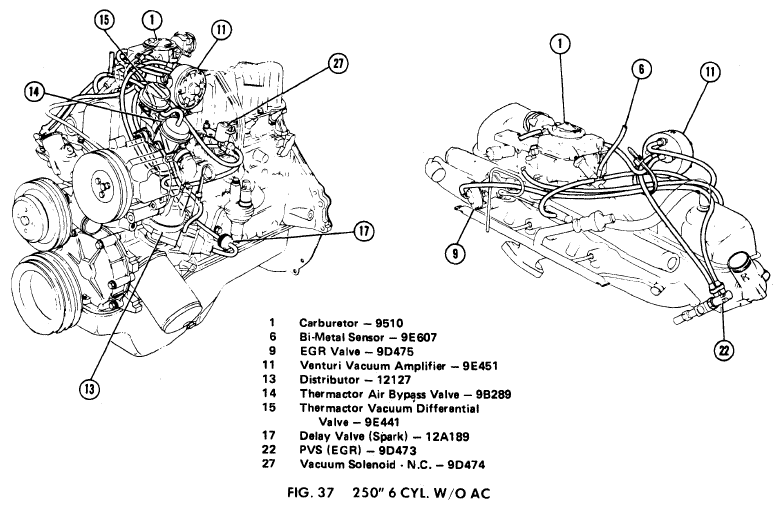

 Vacuum Diagram No.37 |

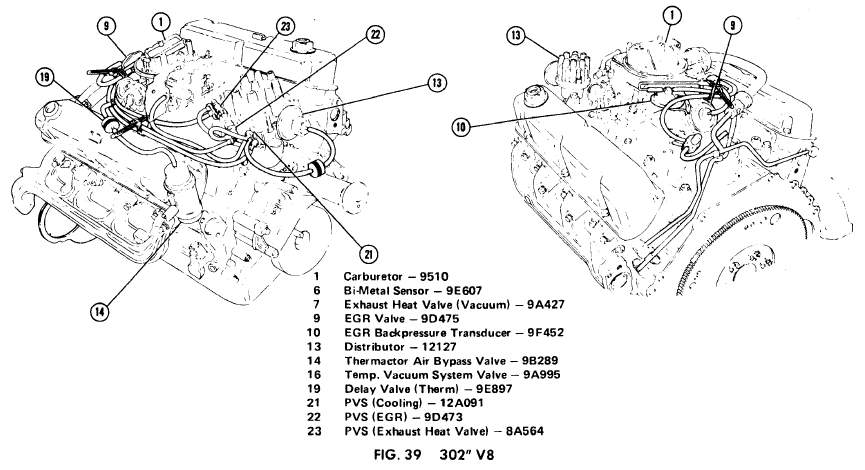

 Vacuum Diagram No.39 |

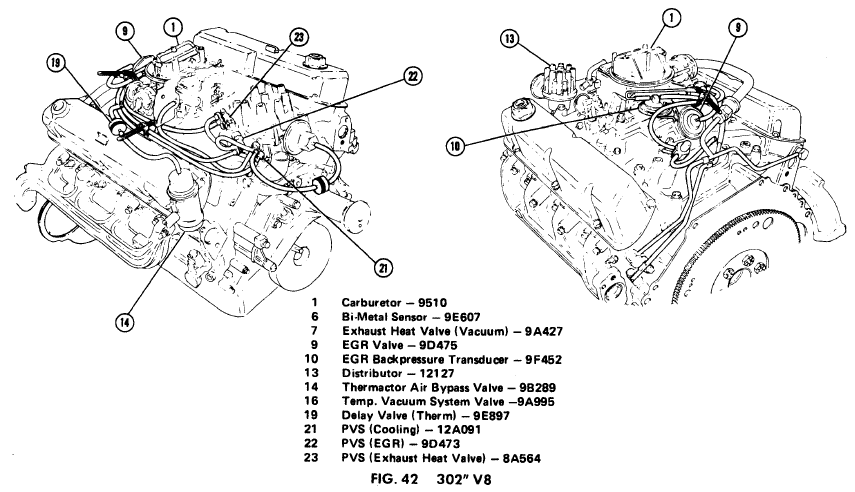

 Vacuum Diagram No.42 |

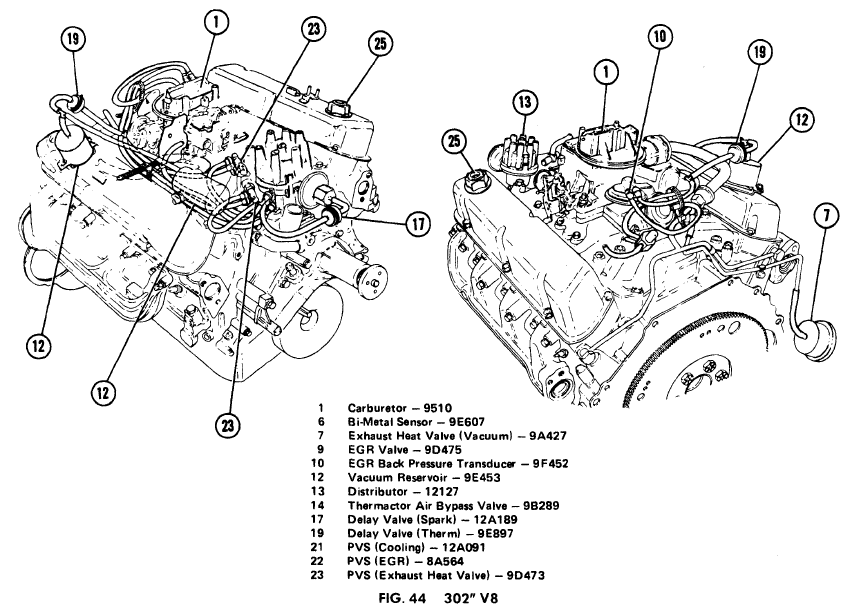

 Vacuum Diagram No.44 |

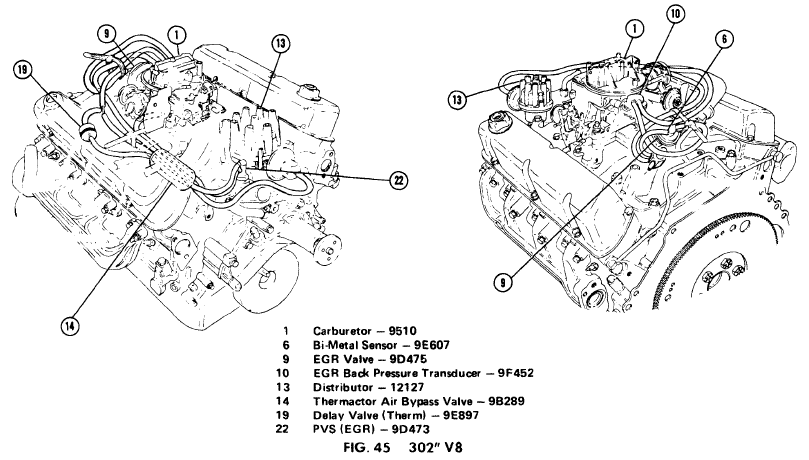

 Vacuum Diagram No.45 |

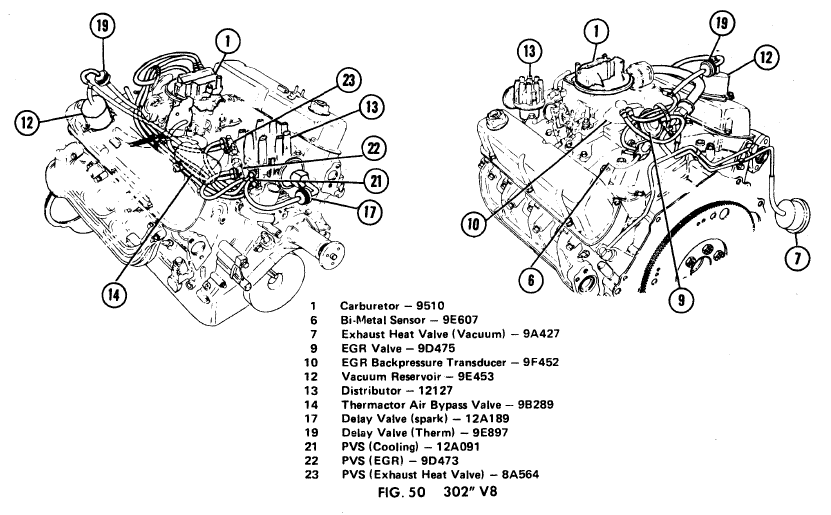

 Vacuum Diagram No.50 |
