BRAKES - DRUM BRAKES
INSPECTION
- Raise the front or rear of the car and support the car with safety stands. Make sure that the parking brake is not on.
- If you are going to check the rear brakes, remove the lug nuts that attach the wheels to the axle shaft and remove the tires and wheels from the car. Using a pair of pliers, remove the tinnerman nuts from the wheel studs. Pull the brake drum off the axle shaft. If the brakes are adjusted too tightly to remove the drum, see Step 4. If you can remove the drum, see Step 5.
- If you are going to check the front brakes, then the front tire, wheel and brake drum can be removed as an assembly. Remove the hub cap, then either pry the dust cover off the spindle with a screwdriver or pull it off with a pair of channel-lock pliers. Remove the cotter pin from the spindle. Slide the nut lock off the adjusting nut, then loosen the adjusting nut until it reaches the end of the spindle. Do not remove the adjusting nut yet. Grab the tire and pull it out toward yourself, then push it back into position. This will free the outer wheel bearing from the drum hub. If the brakes are adjusted up too tightly to allow the drum to be pulled off them, go to Step 4 and loosen up the brakes, then return here. Remove the adjusting nut, washer and outer bearing from the spindle. Pull the tire, wheel, and brake drum off the spindle.
- If the brakes are too tight to remove the drum, get under the car (make sure that you have safety stands under the car to support it) and remove the rubber plug from the bottom of the brake backing plate. Shine a flashlight into the slot in the plate. You will see the top of the adjusting screw starwheel and the adjusting lever for the automatic brake adjusting mechanism. To back off on the adjusting screw, you must first insert a small, thin screwdriver or a piece of firm wire (coat-hanger wire) into the adjusting slot and push the adjusting lever away from the adjusting screw. Then, insert a brake adjusting spoon into the slot and engage the top of the star-wheel. Lift up on the bottom of the adjustment spoon to force the adjusting screw star-wheel downward. Repeat this operation until the brake drum is free of the brake shoes and can be pulled off.

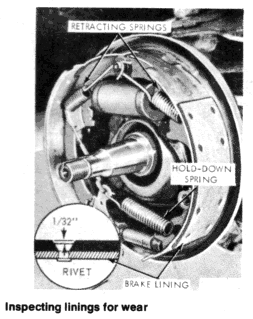

- Clean the brake shoes and the inside of the brake drum. There must be at least 1/16 in. of brake lining above the heads of the brake shoe attaching rivets. The lining should not be cracked or contaminated with grease or brake fluid. If there is grease or brake fluid on the lining, it must be replaced and the source of the leak must be found and corrected. Brake fluid on the lining means leaking wheel cylinders. Grease on the brake lining means a leaking grease retainer (front wheels) or axle seal (rear brakes). If the lining is slightly glazed but otherwise in good condition, it can be cleaned up with medium sandpaper. Lift up the bottom of the wheel cylinder boots and inspect the ends of the wheel cylinders. A small amount of fluid in the end of the cylinders should be considered normal. If fluid runs out of the cylinder when the boots are lifted, however, the wheel cylinder must be rebuilt or replaced. Examine the inside of the brake drum; it should have a smooth, dull finish. If excessive brake shoe wear caused grooves to wear in the drum it must be machined or replaced. If the inside of the drum is slightly glazed, but otherwise good, it can be cleaned up with medium sandpaper.
- If no repairs are required, install the drum and wheel. If the brake adjustment was changed to remove the drum, adjust the brakes until the drum will just fit over the brakes. After the wheel is installed it will be necessary to complete the adjustment. See "Brake Adjustment" later in this chapter. If a front wheel was removed, tighten the wheel bearing adjustment nut to 17-25 ft. lbs. while rotating the wheel. This will seat the bearing. Loosen the adjusting nut 1/2 turn, then retighten it to 10-15 ft. lbs.
