Maverick and Comet Exploded Views

BODY

Click Thumbnail for Larger View...Use Back Button to Return
Might have to left click image again to see full size if your settings are set to auto resize

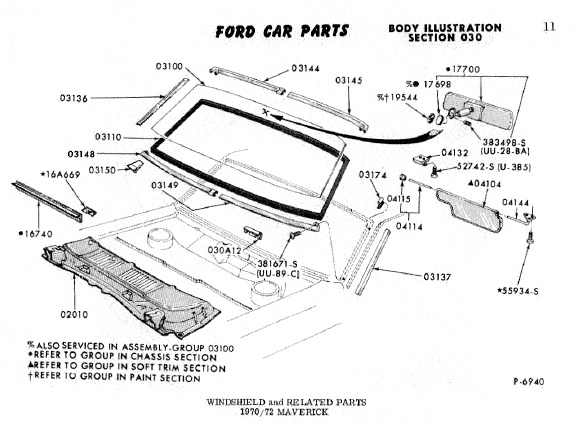

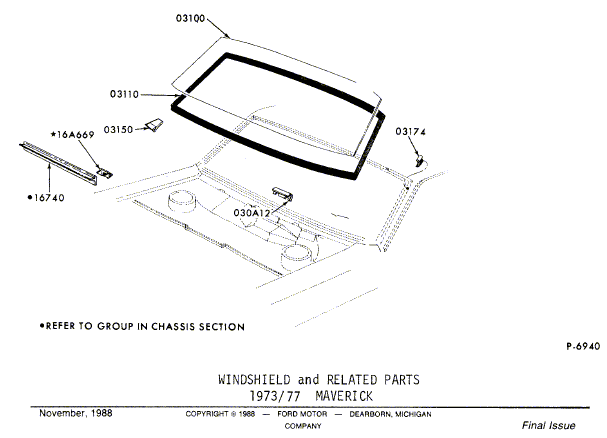

70-72 Windshield	73-77 Windshield	70-72 Rear Glass Body Code 54	70-72 Rear Glass Body Code 62

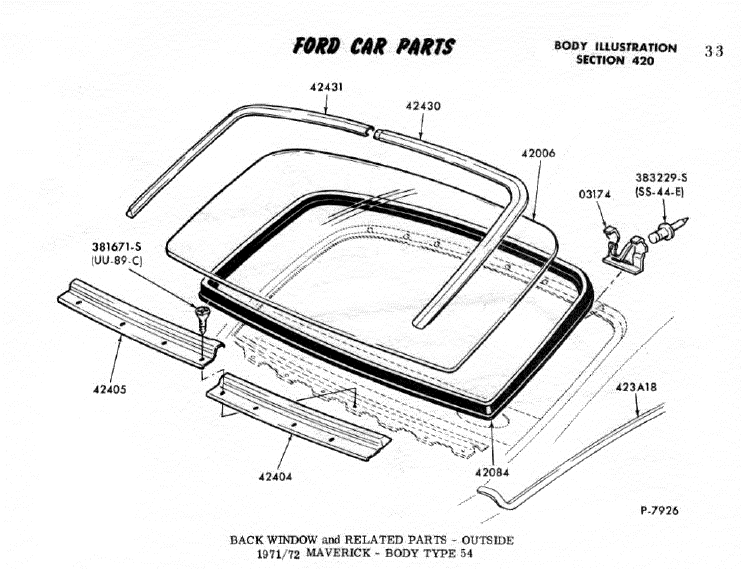

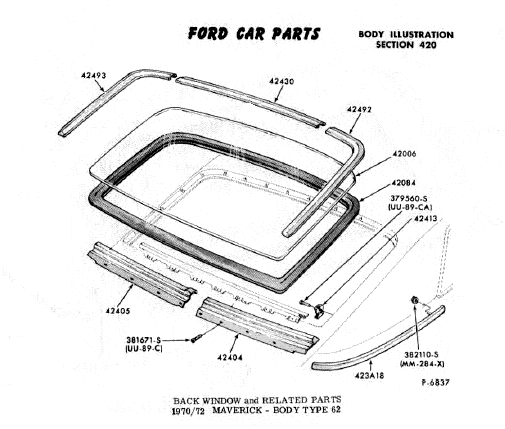

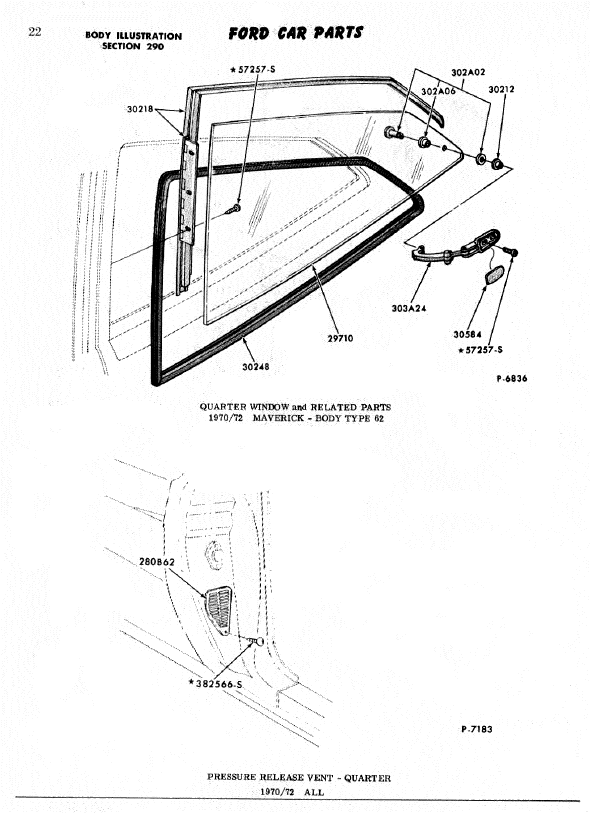

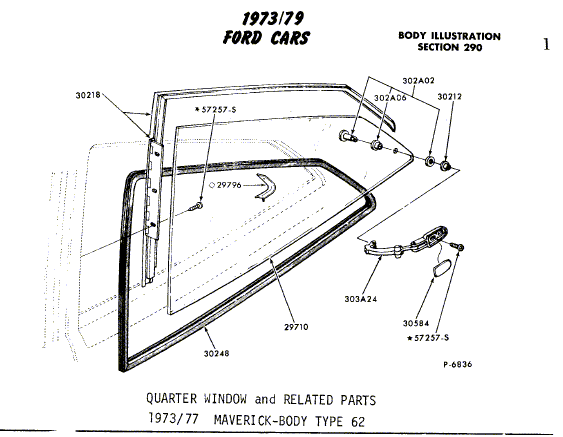

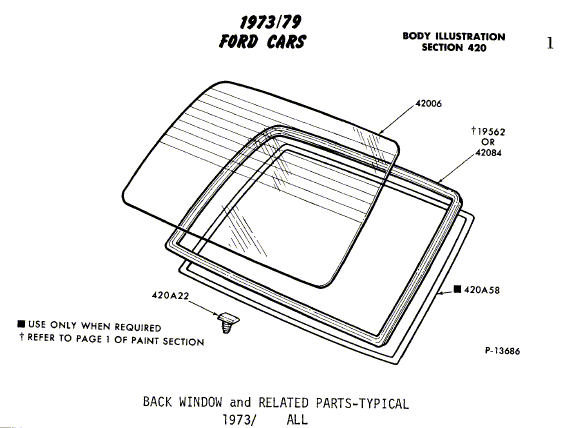

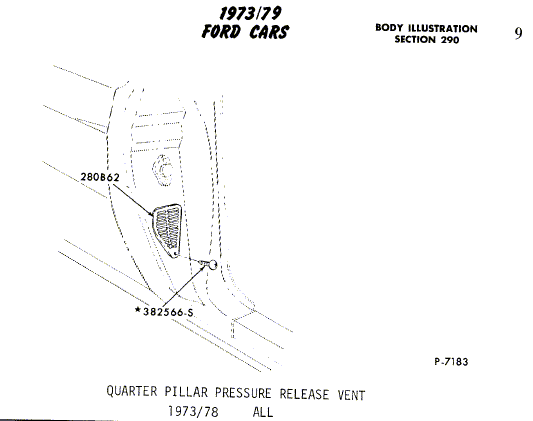

73-77 Back Window (All)	70-72 Quarter Glass	73-77 Quarter Glass	73-77 Quarter Pressure Release Vent

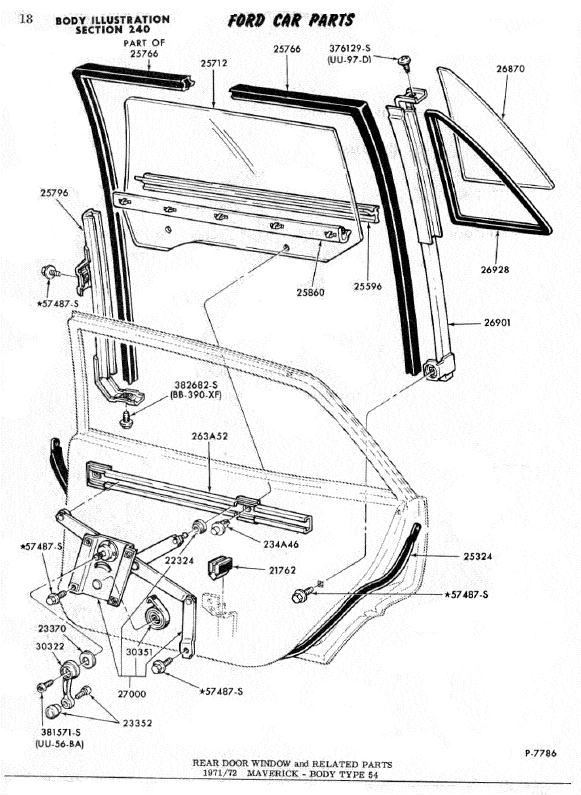

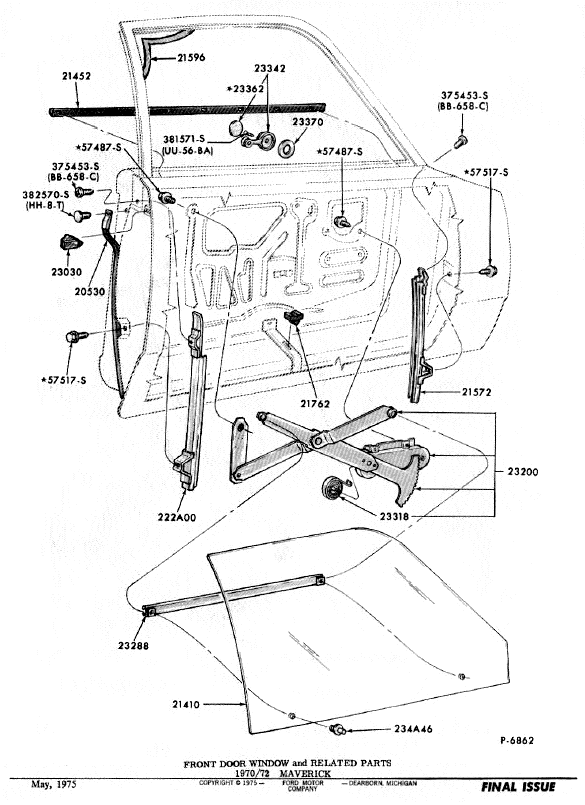

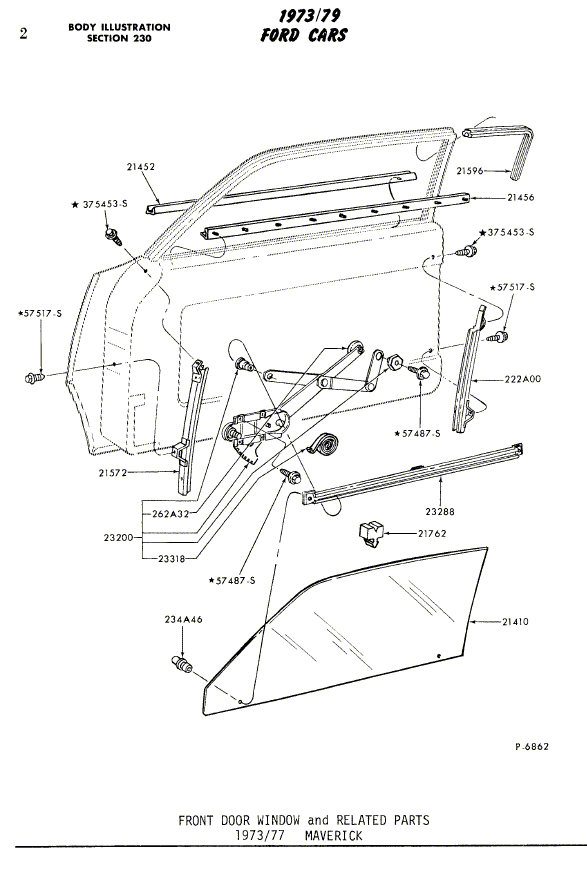

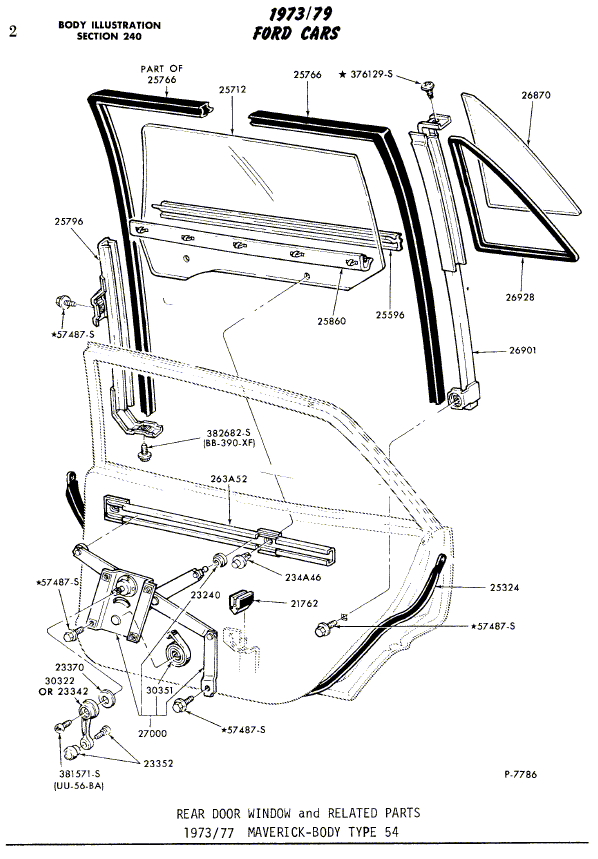

70-72 Front Door Window	73-77 Front Door Window	70-72 Rear Door Window	73-77 Rear Door Window

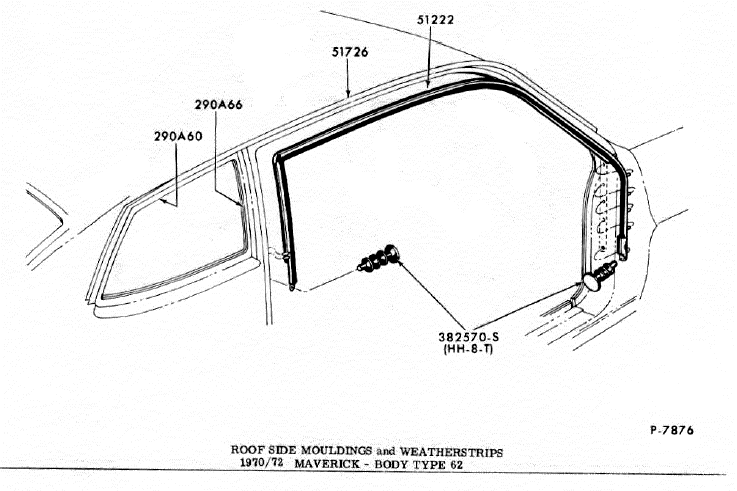

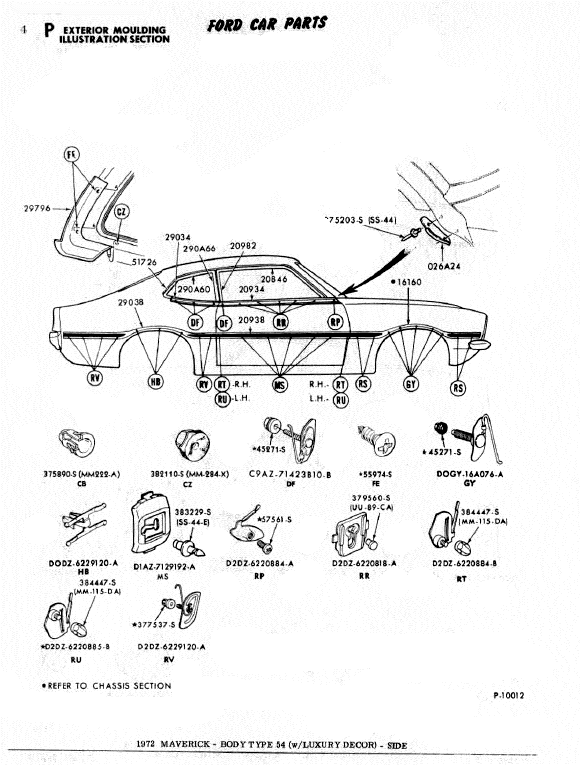

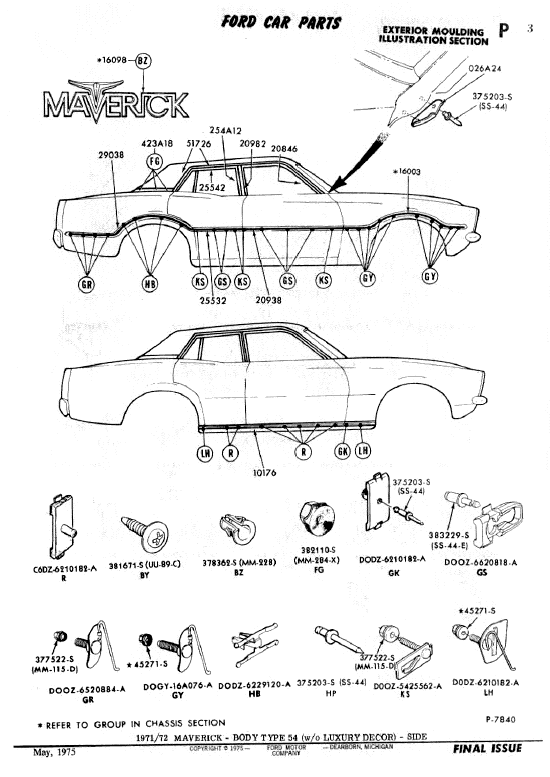

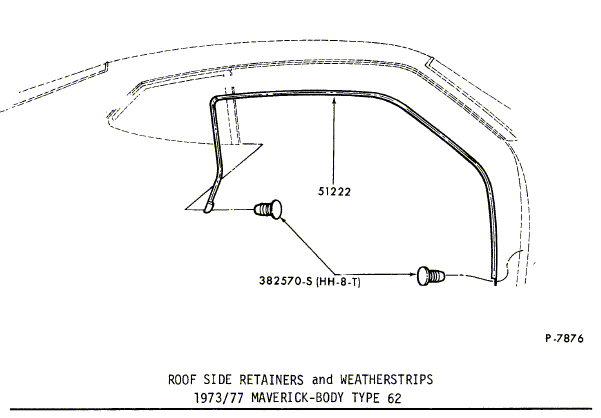

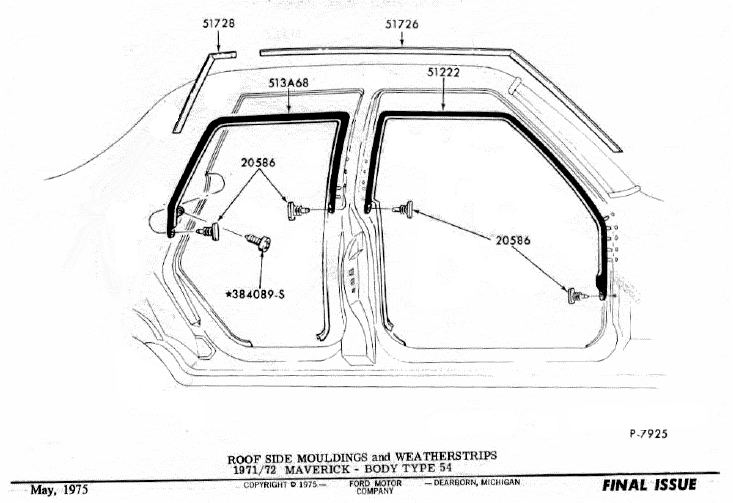

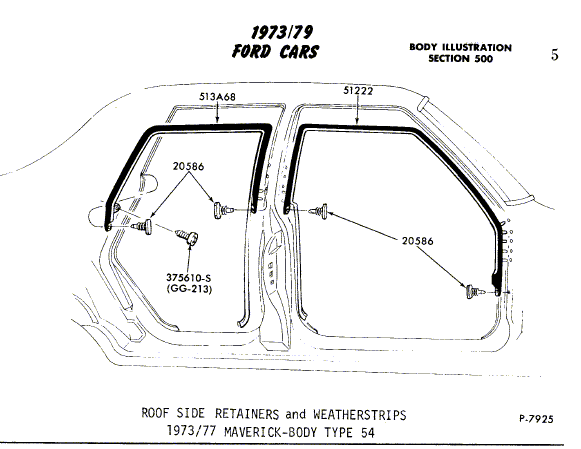

71-72 Weather Stripping Body Code 54	70-72 Weather Stripping Body Code 62	73-77 Weather Stripping Body Code 54	73-77 Weather Stripping Body Code 62

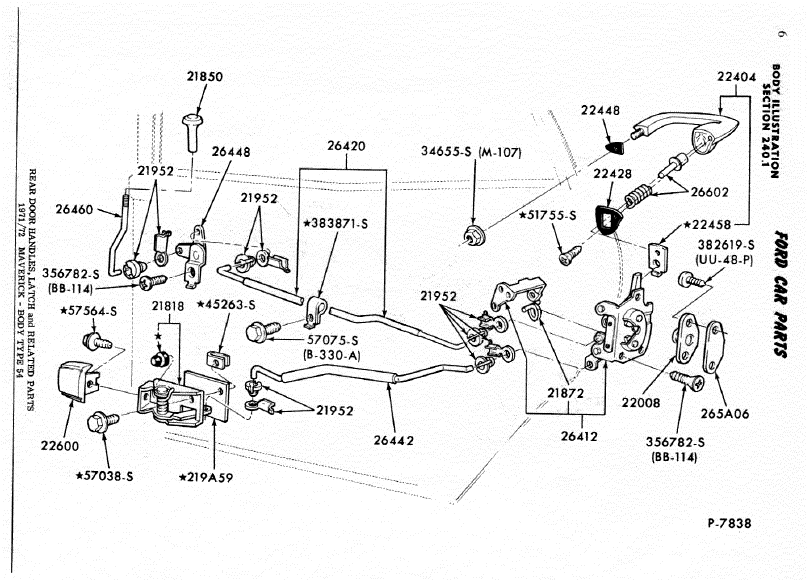

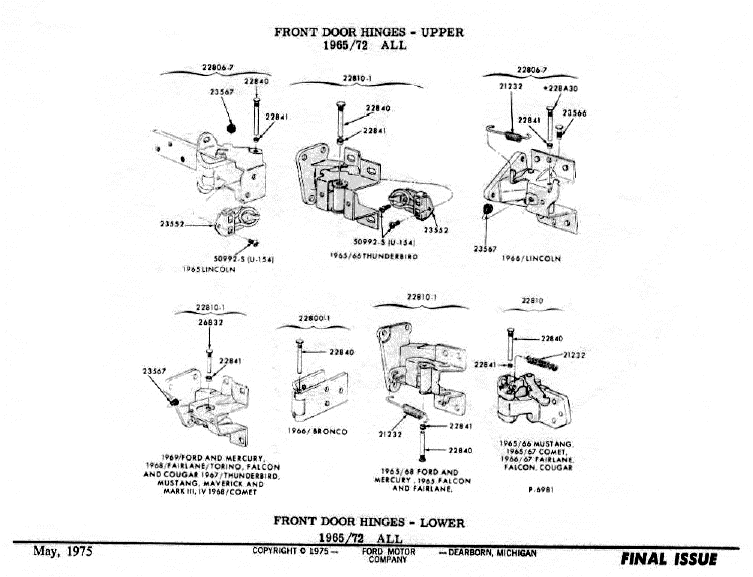

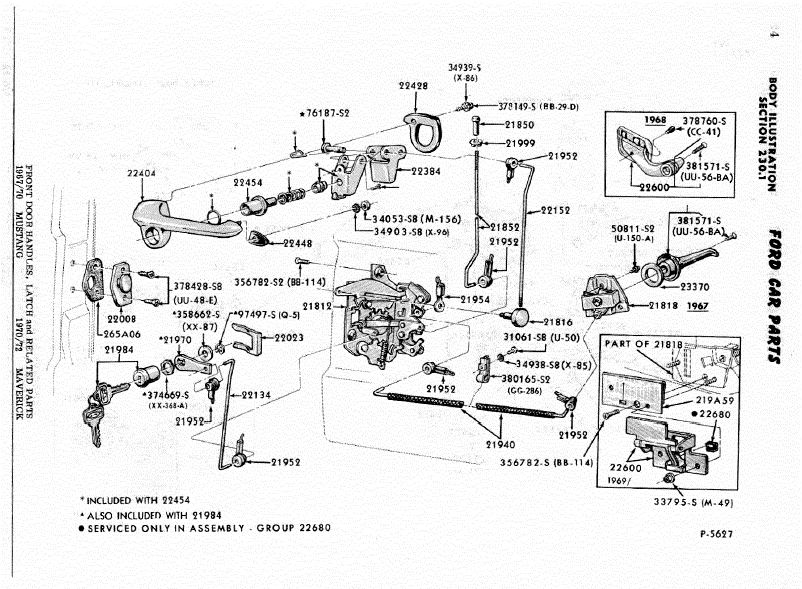

Lower Front Door Hinges	70-72 Front Door Latch	73-77 Front Door Latch	70-72 Rear Door Latch

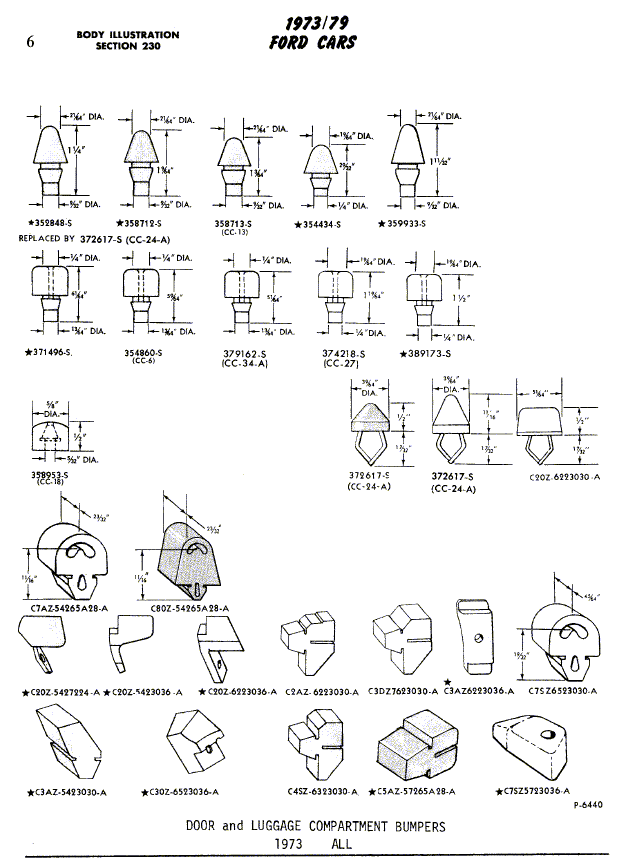

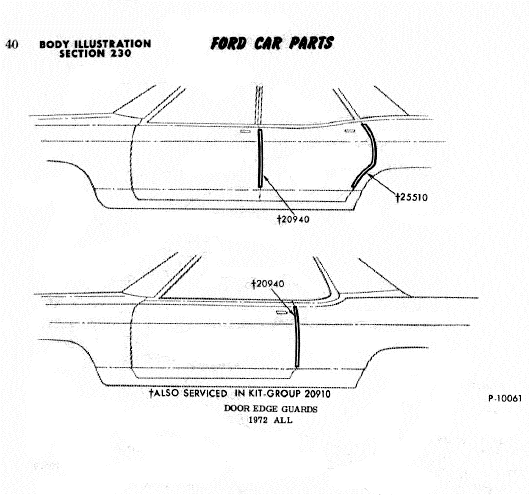

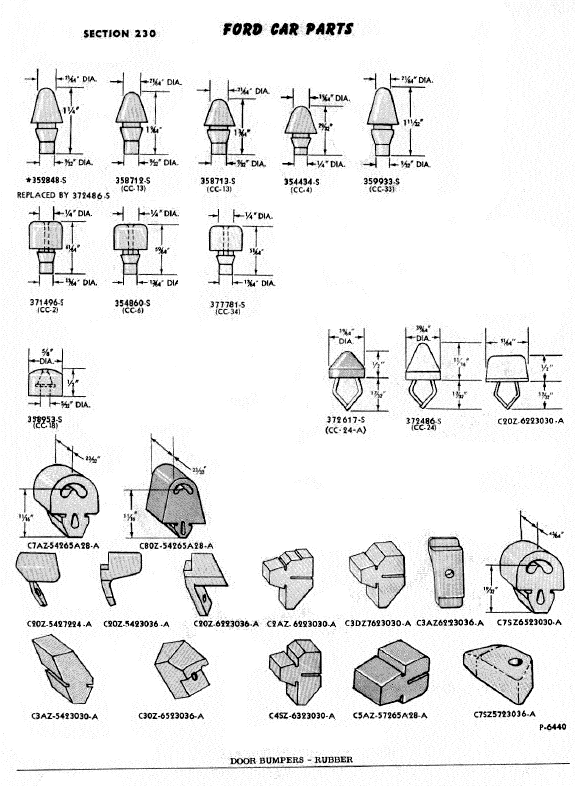

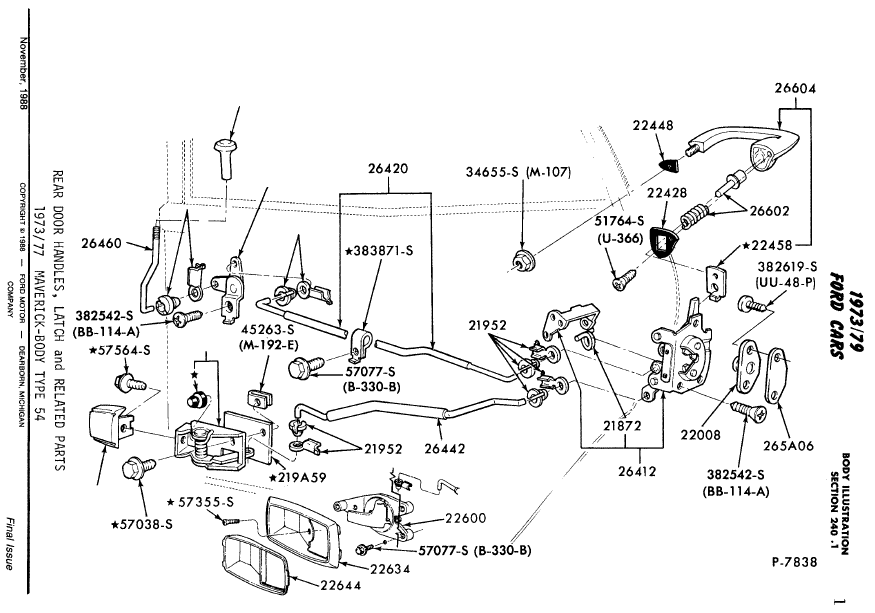

73-77 Rear Door Latch	70-72 Door Bumpers	73-77 Door Bumpers	72 Door Edge Guards

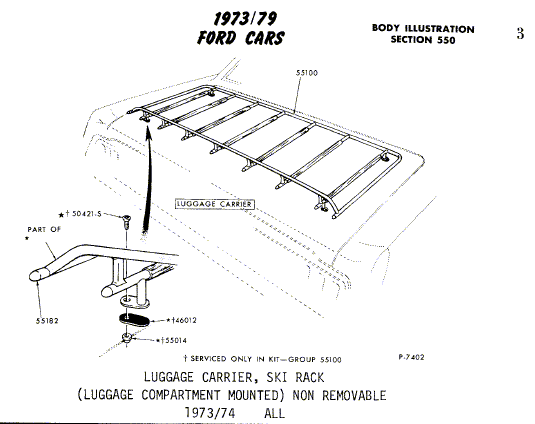

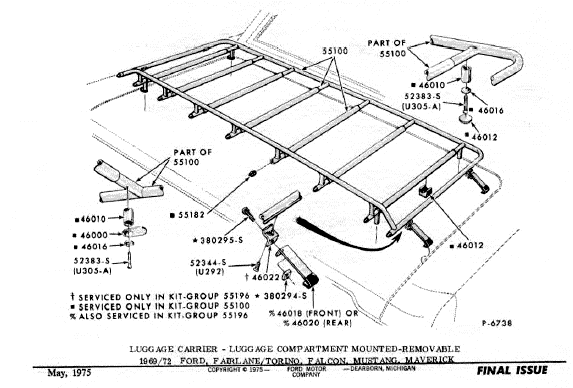

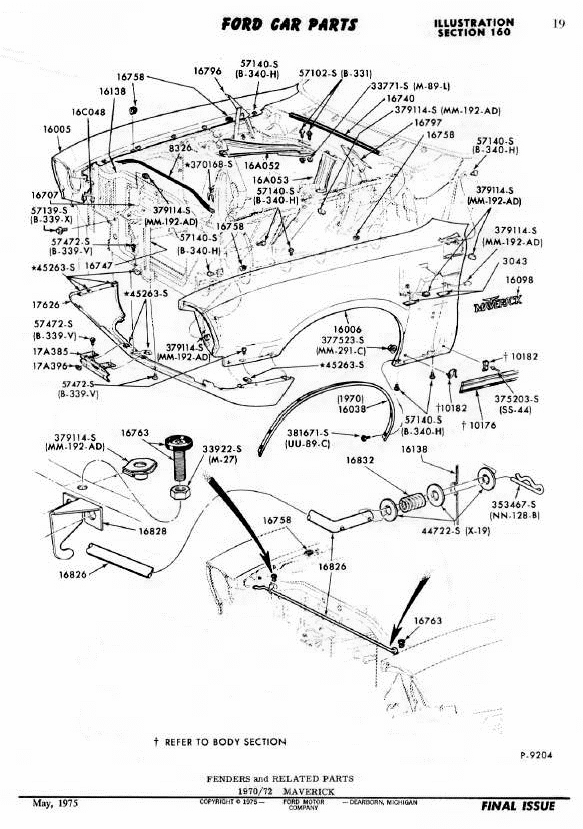

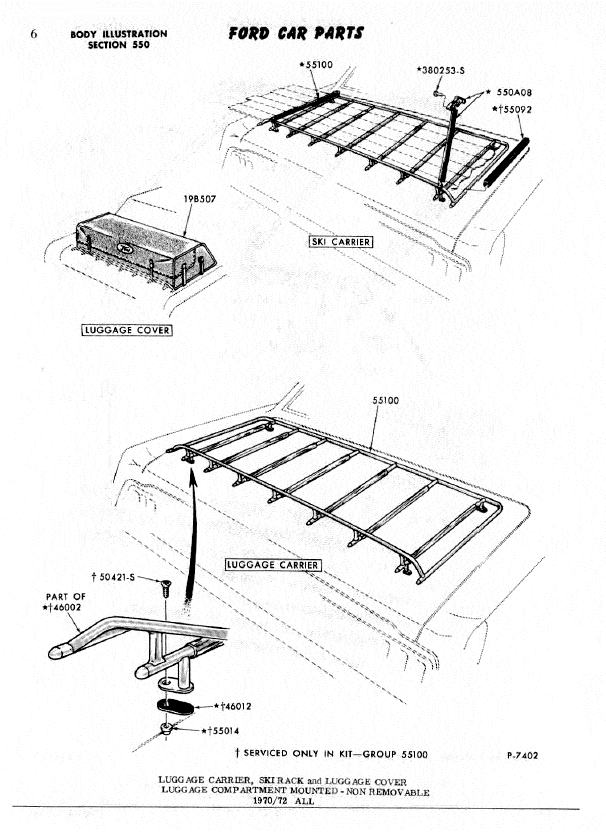

Luggage Carrier Removable	70-72 Luggage Carrier Non Removable	73-74 Luggage Carrier Non Removable	70-72 Front Fender

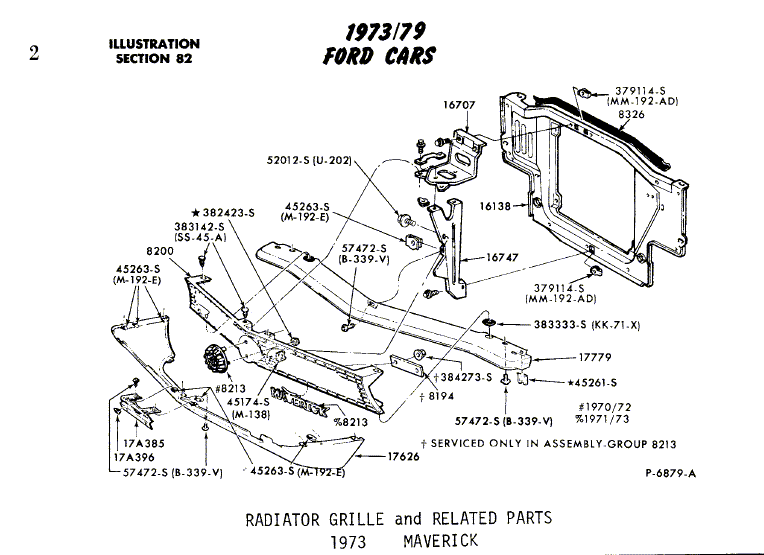

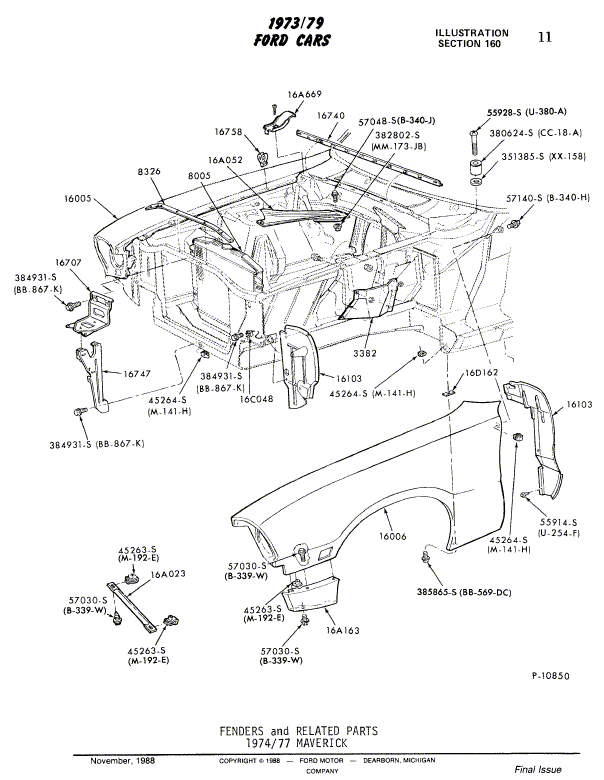

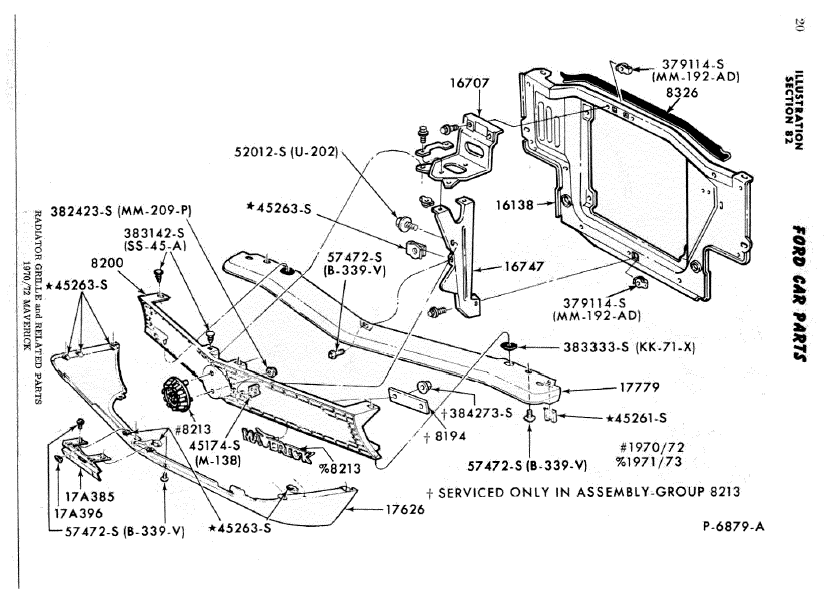

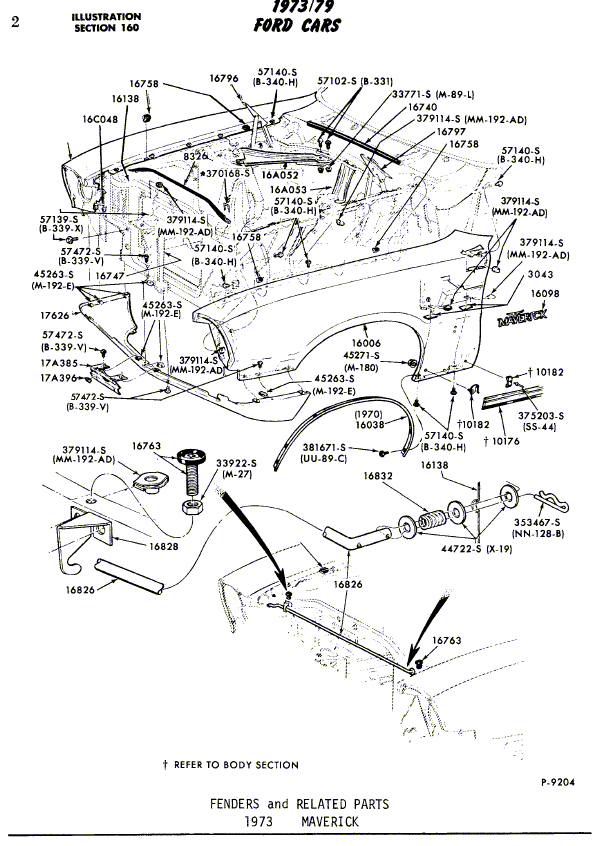

73 Front Fender	74-77 Front Fender	70-72 Radiator Support & Valance	73-77 Radiator Support & Valance

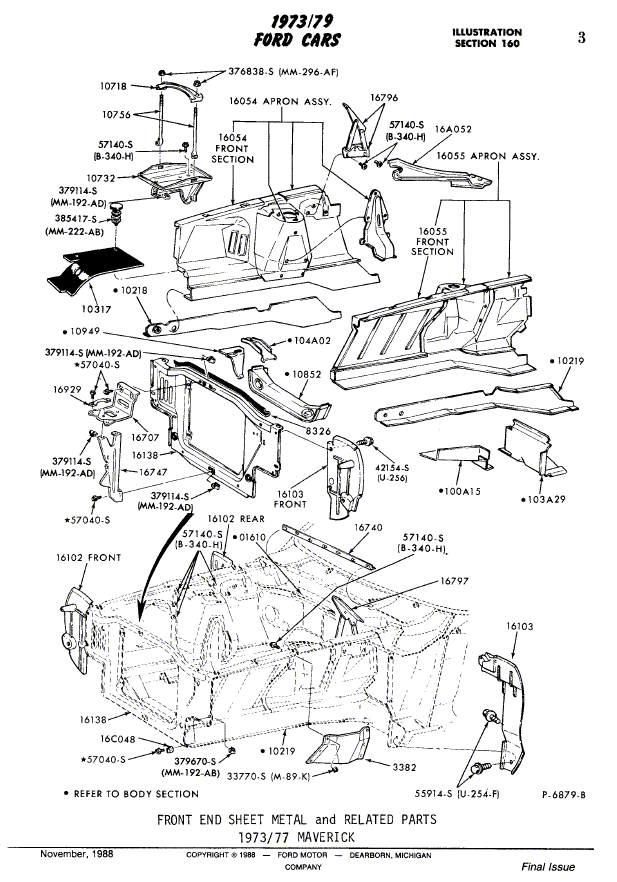

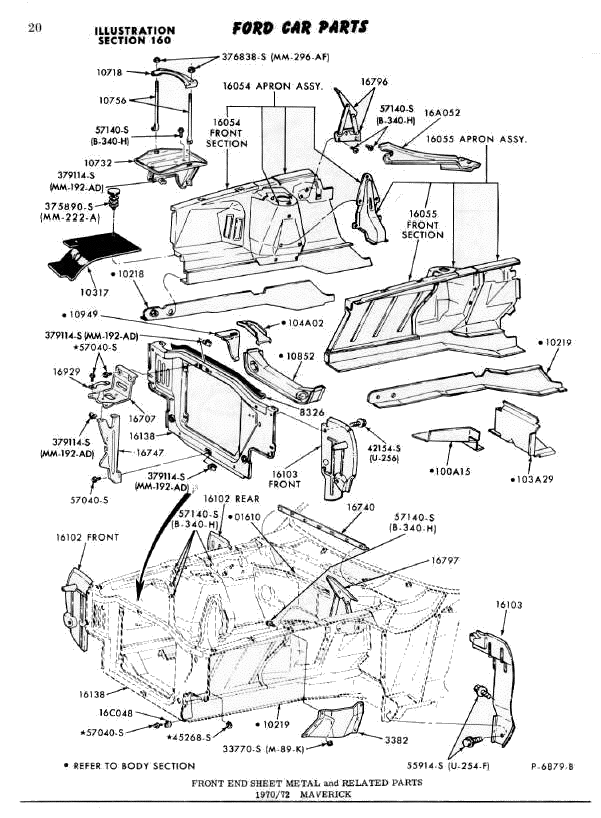

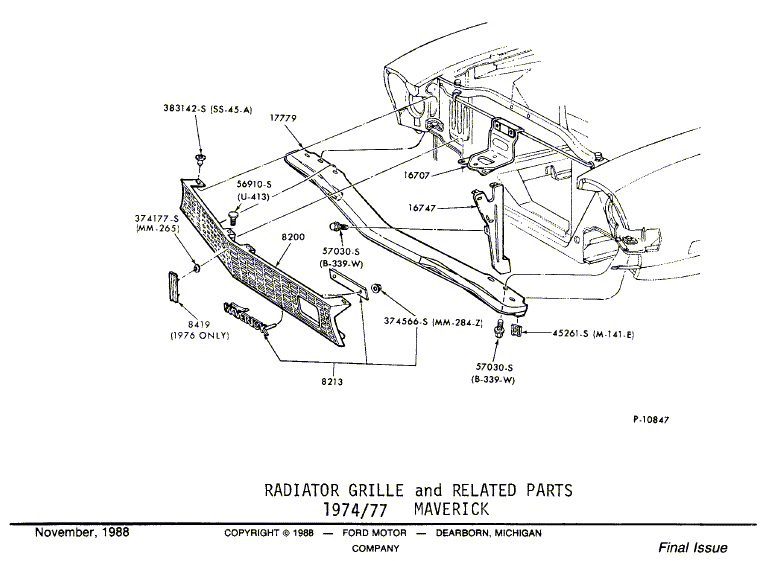

70-72 Front Sheet Metal	73 Radiator Support & Valance	74-77 Radiator Support & Valance	'70 Hood

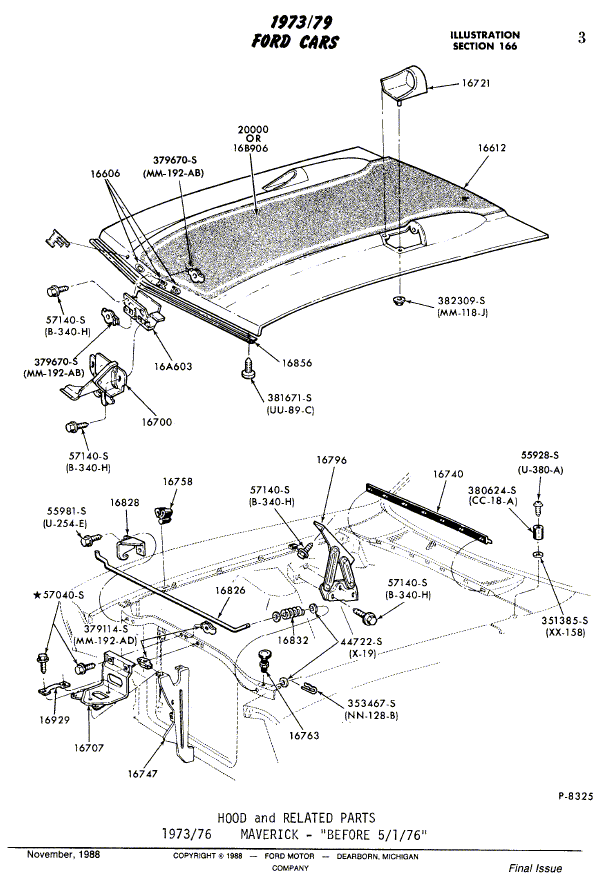

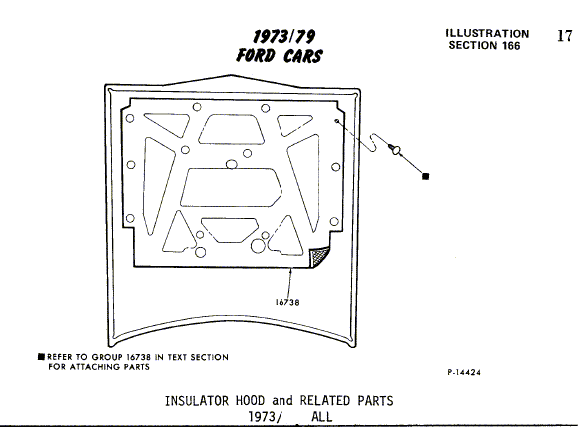

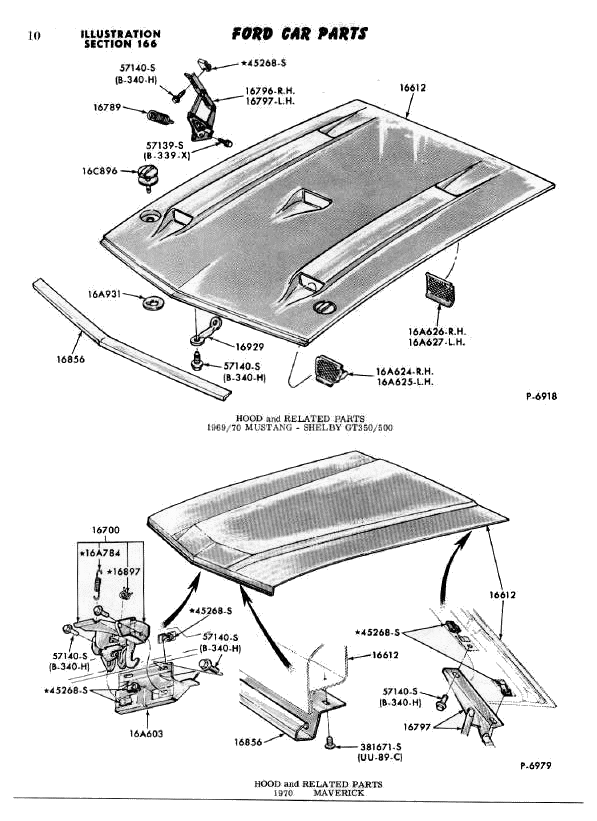

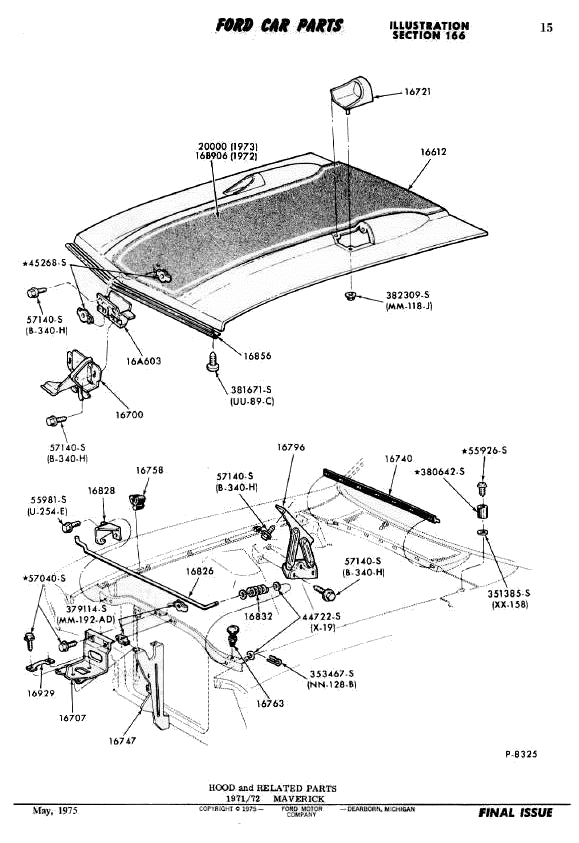

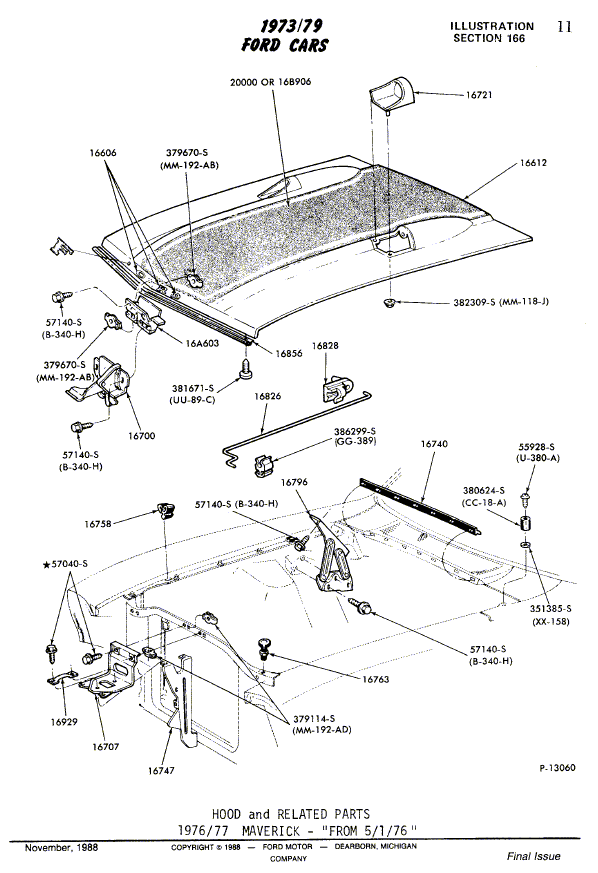

71-72 Hood	73-76 Hood	76-77 Hood	73-77 Insulator Hood

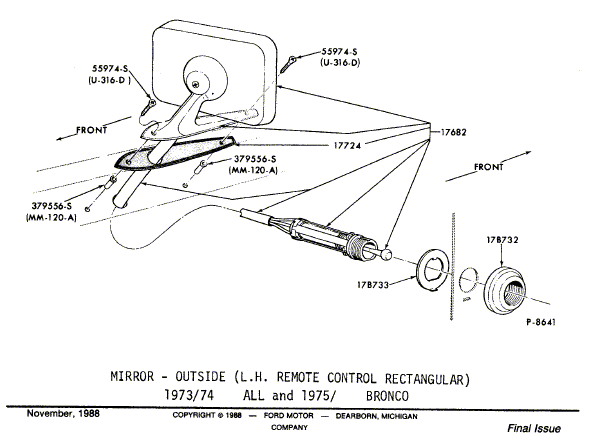

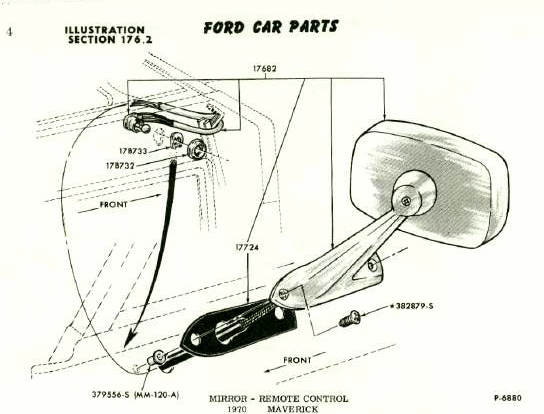

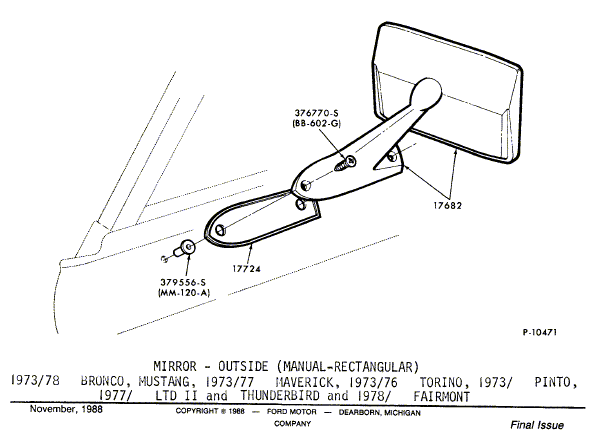

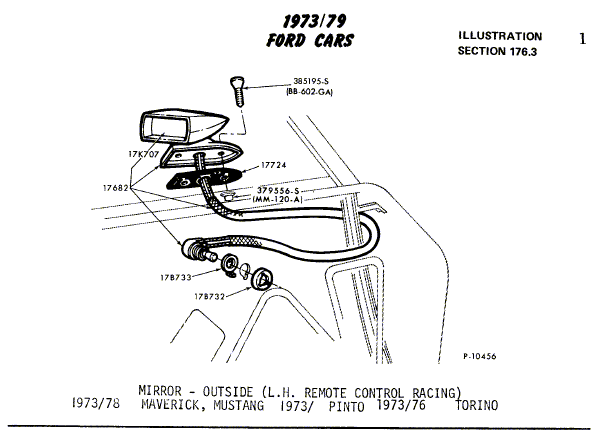

70 Remote Mirror	73-77 L.H. Racing Mirror	73-77 Mirror Outside	73-74 Mirror Outside (L.H. Remote Control)

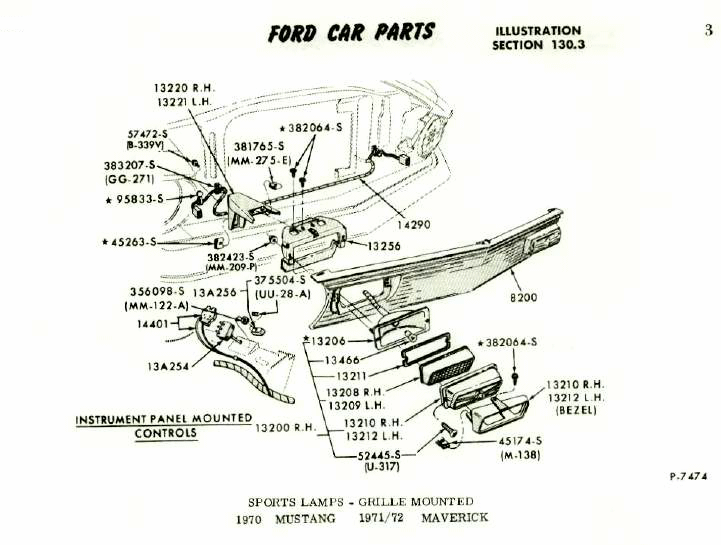

Sport Lamps / Grille	70-72 Front Lights	70-72 Front Bumper	70-72 Rear Bumper

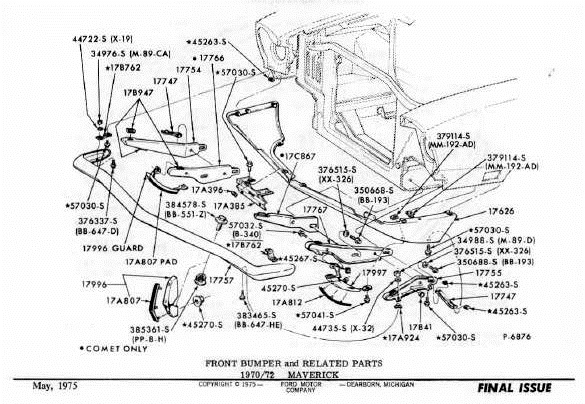

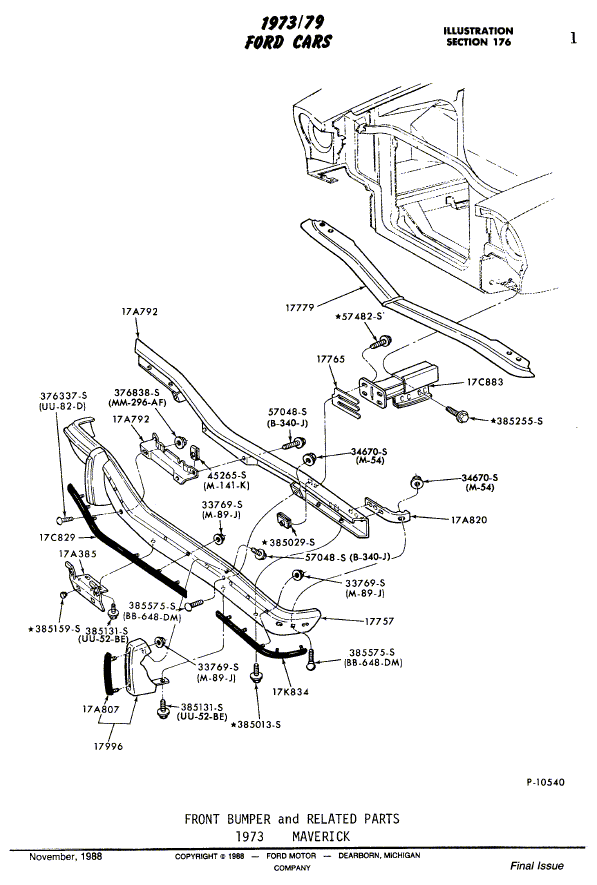

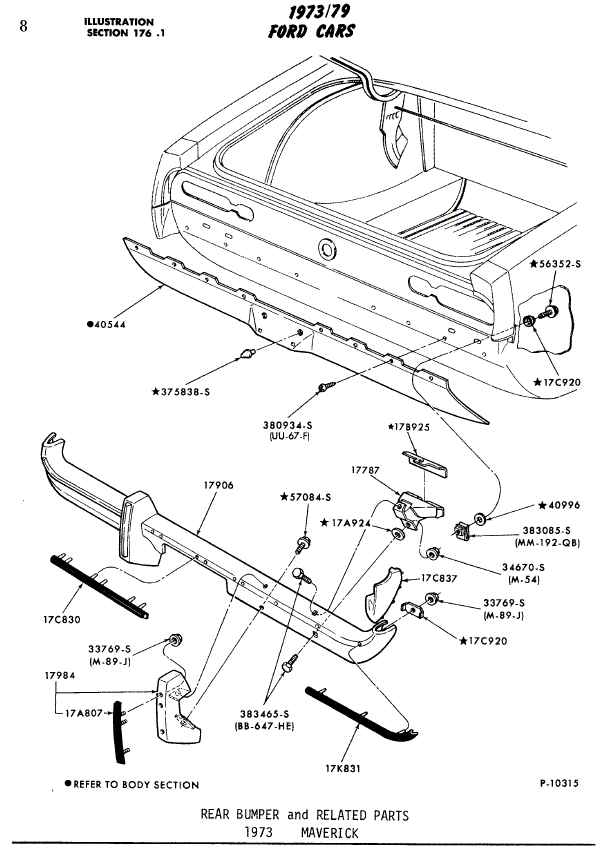

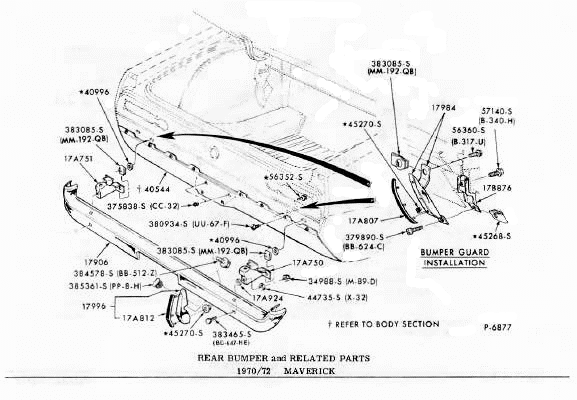

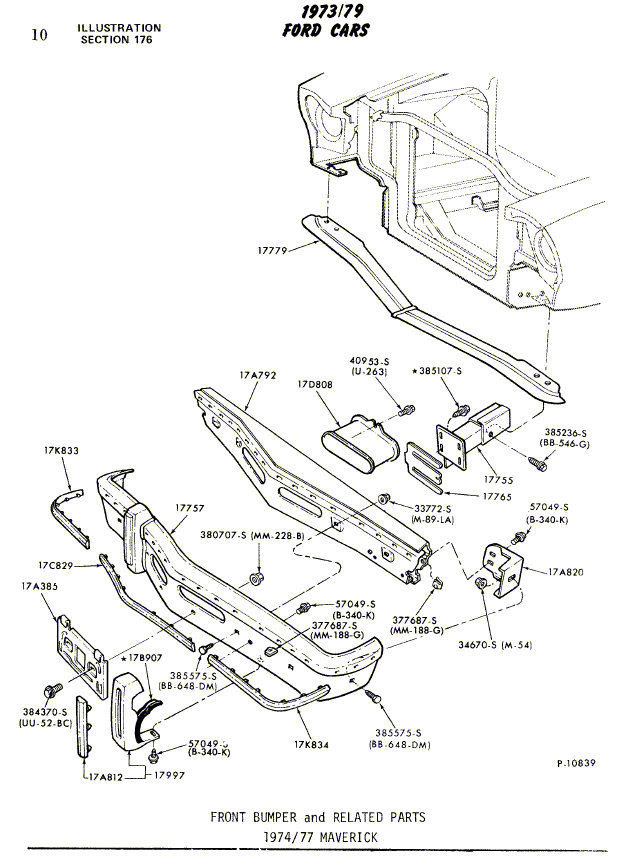

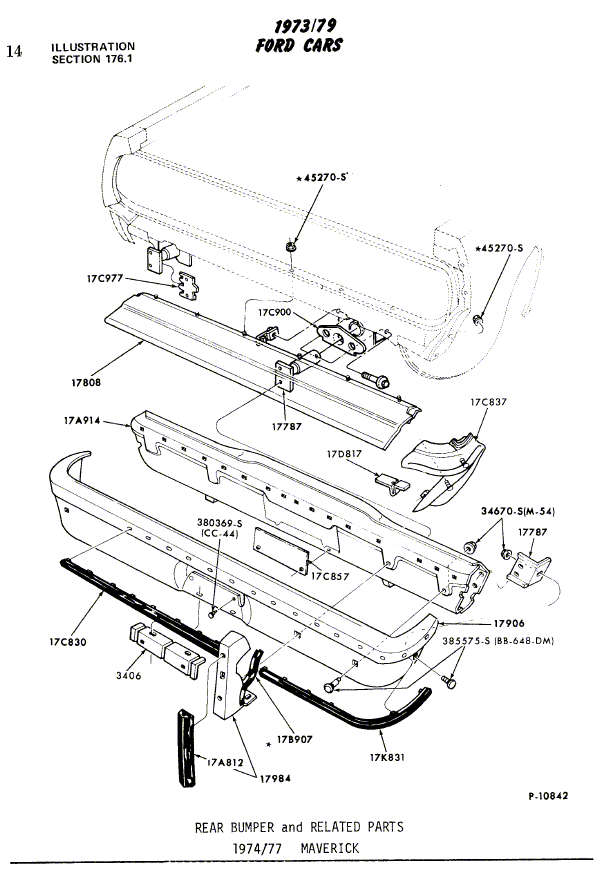

73 Front Bumper	74-77 Front Bumper	73 Rear Bumper	74-77 Rear Bumper

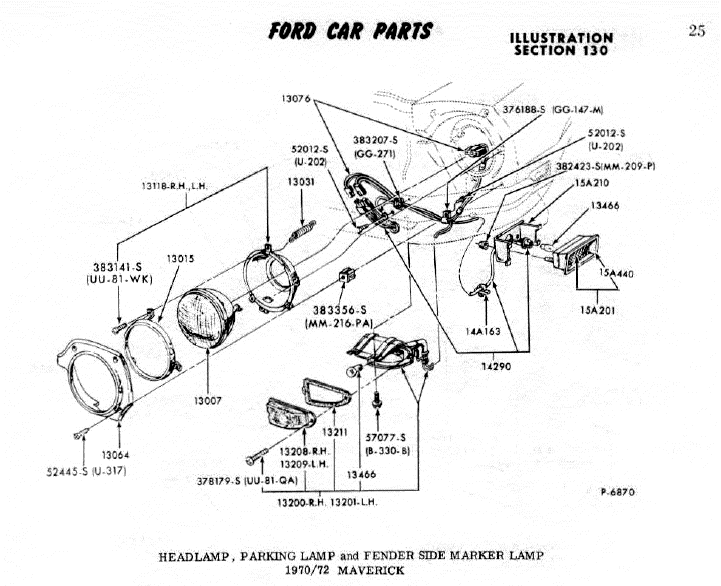

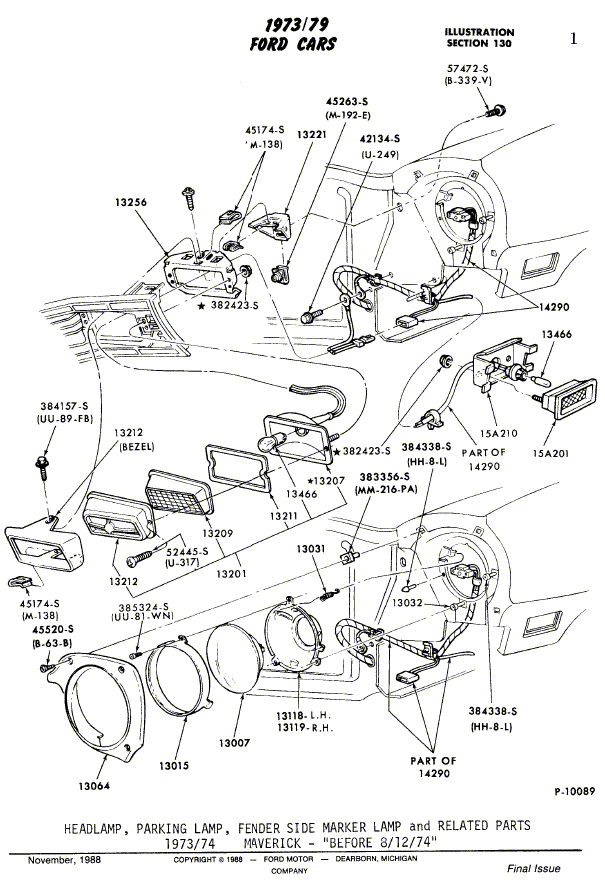

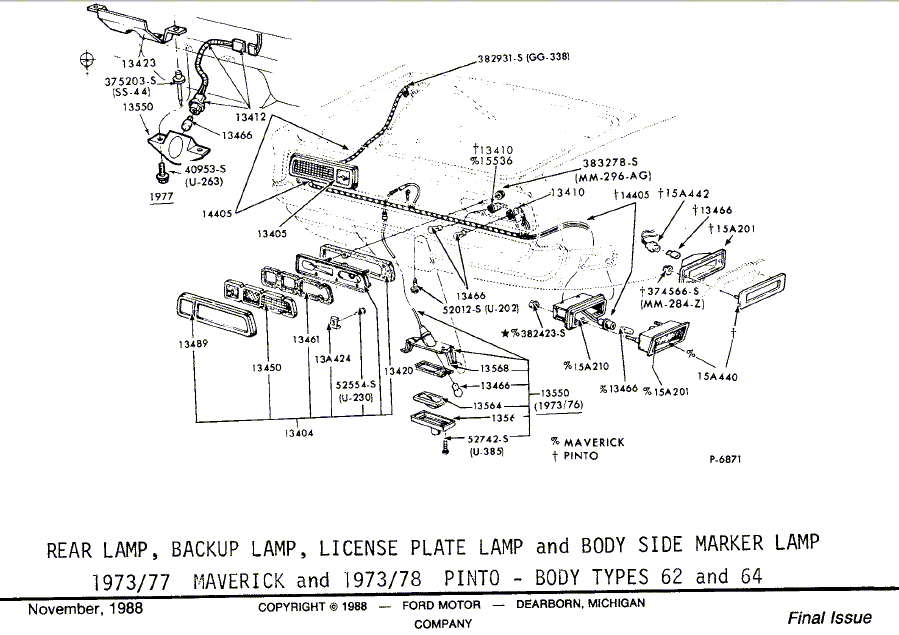

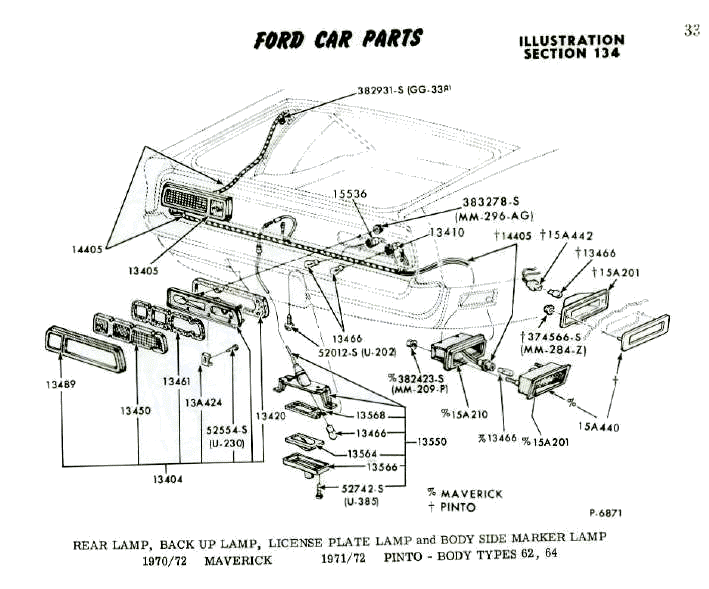

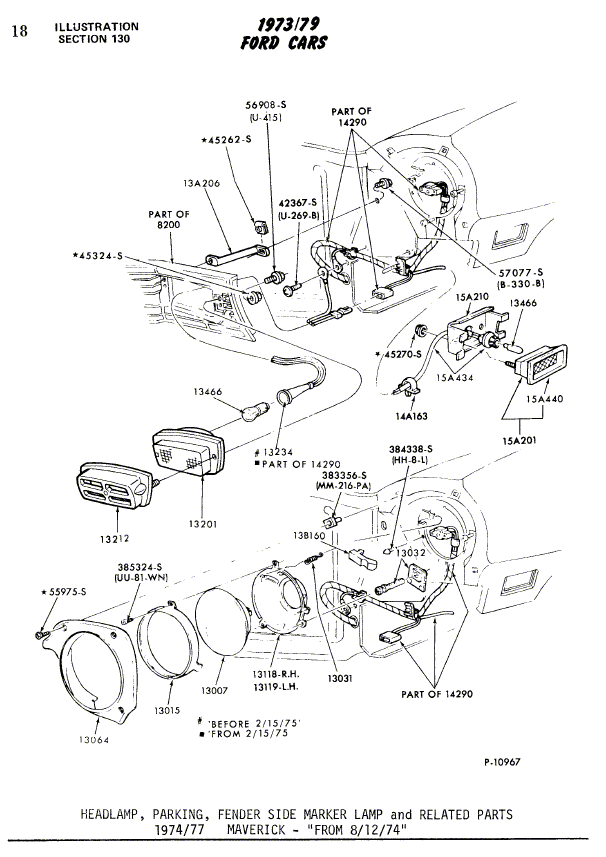

73-74 Front Lights	74-77 Front Lights	70-72 Rear Lights	73-77 Rear Lights

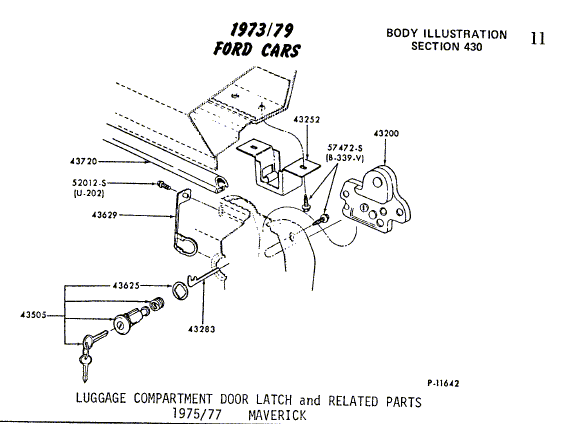

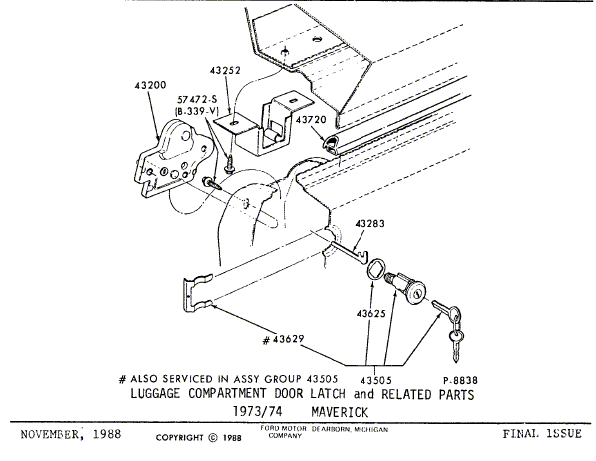

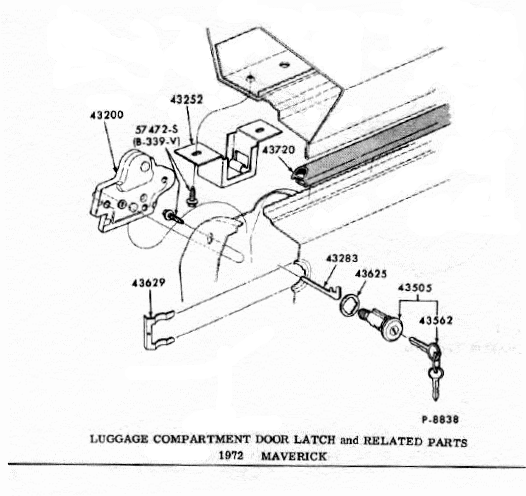

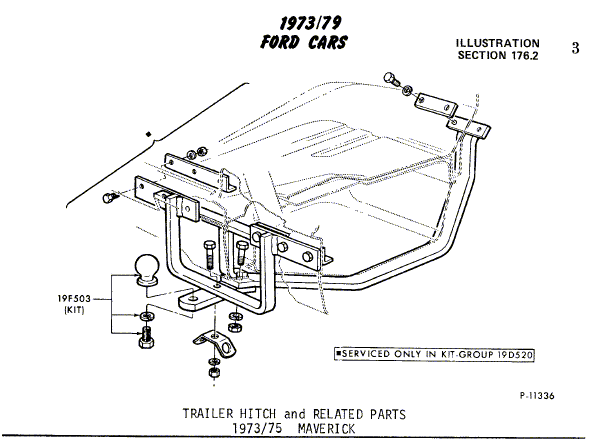

73-75 Trailer Hitch	72 Trunk Lock	73-74 Trunk Lock	75-77 Trunk Lock

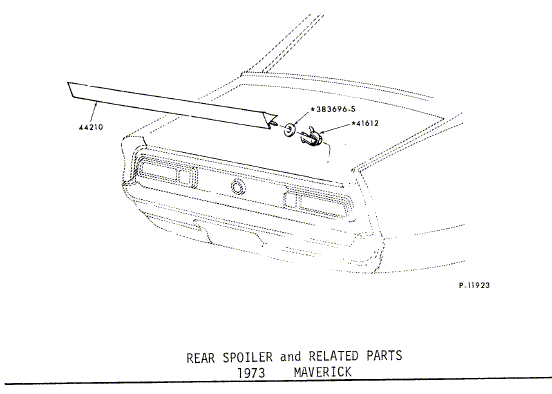

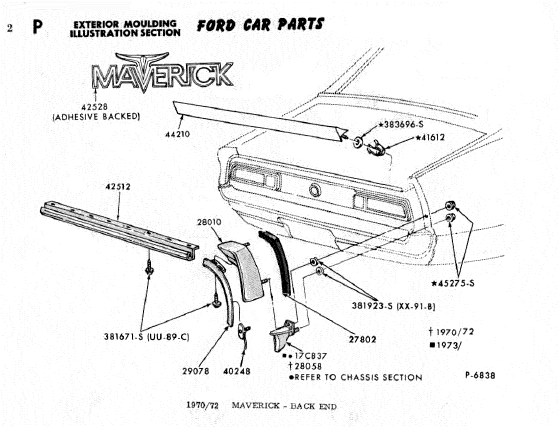

70-72 Quarter Extensions/Spoiler	73 Rear Spoiler	72 code 62 w/LDO	Clips body code 54 wo/LDO

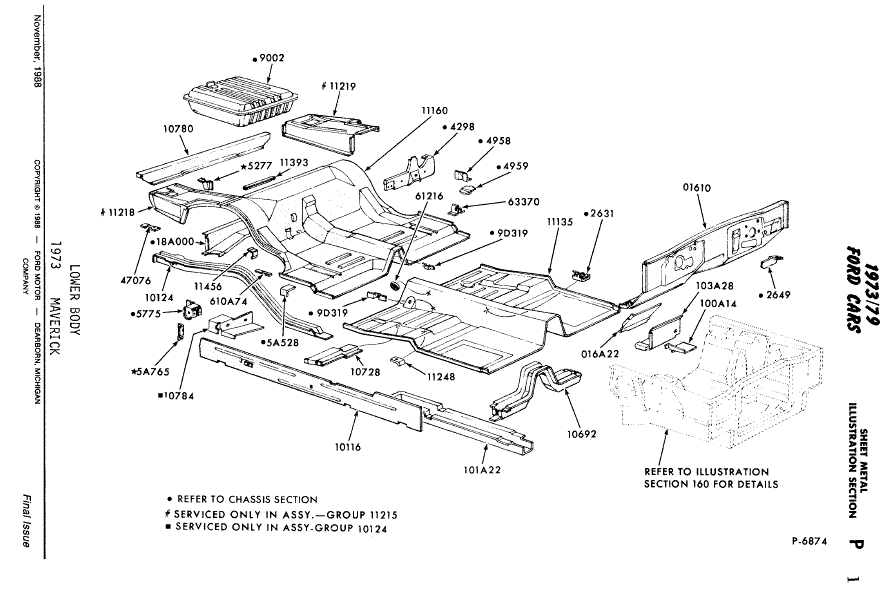

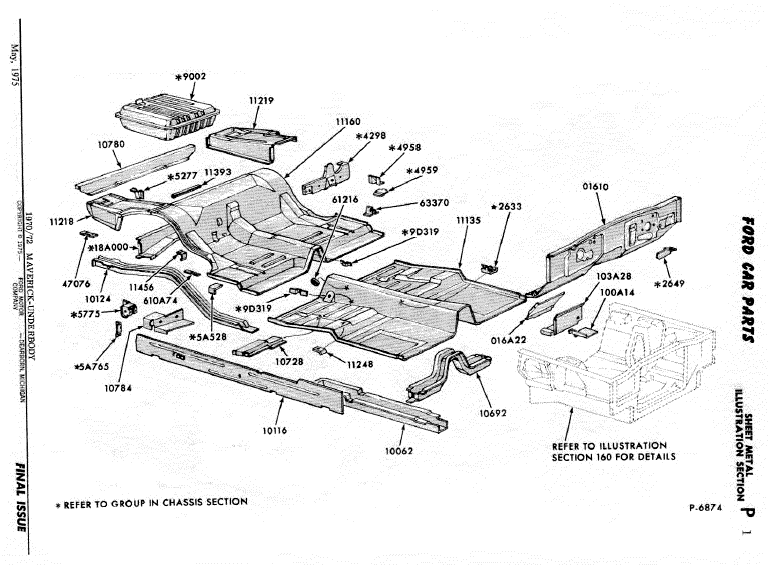

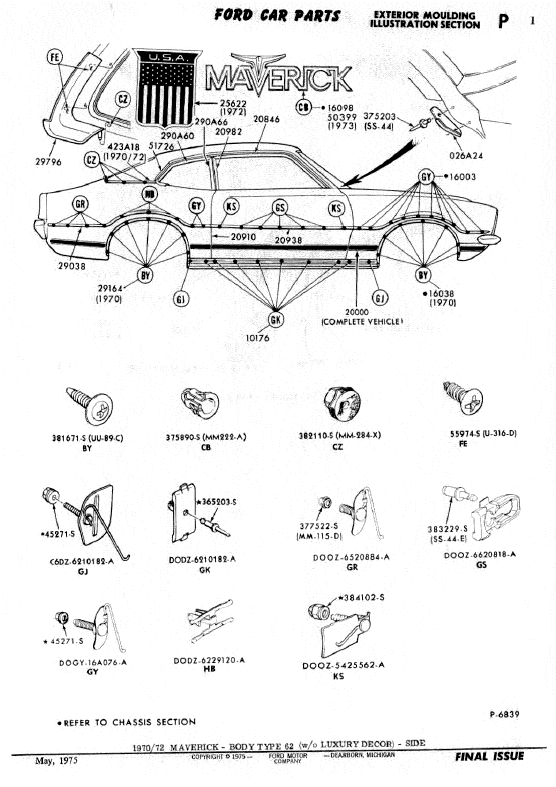

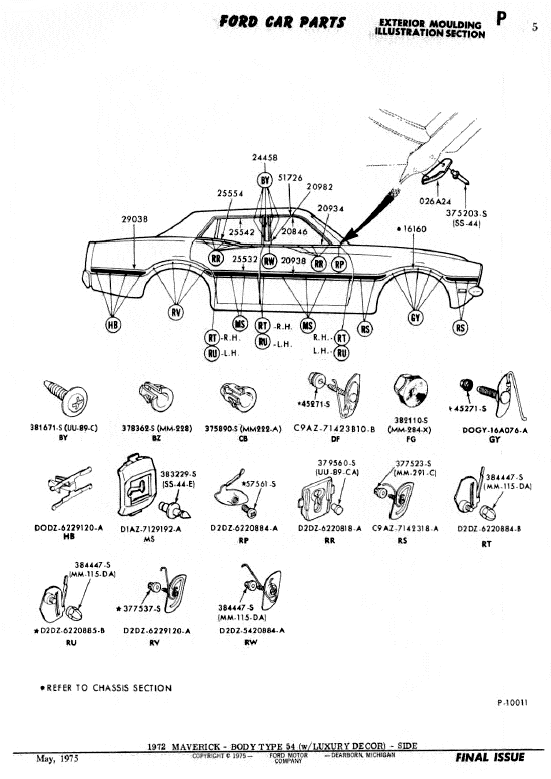

72 body code 54 w/LDO	Clips body code 62	70-72 Under Body	73 Under Body

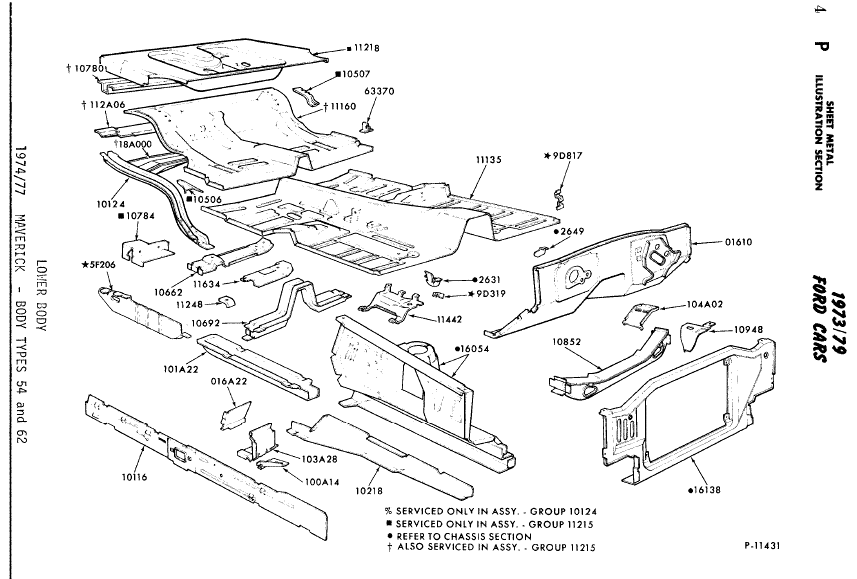

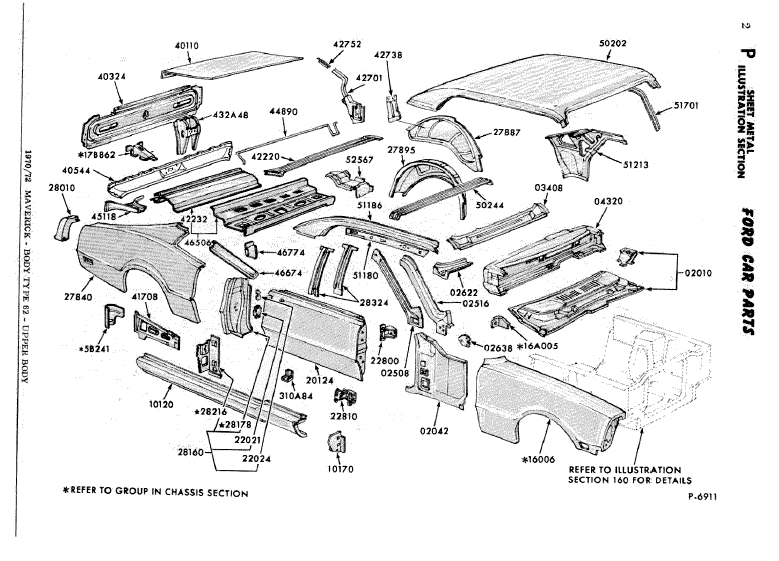

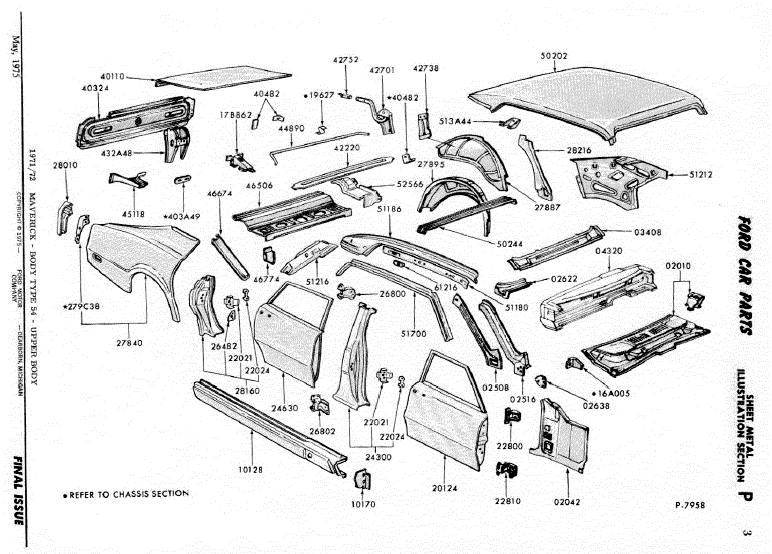

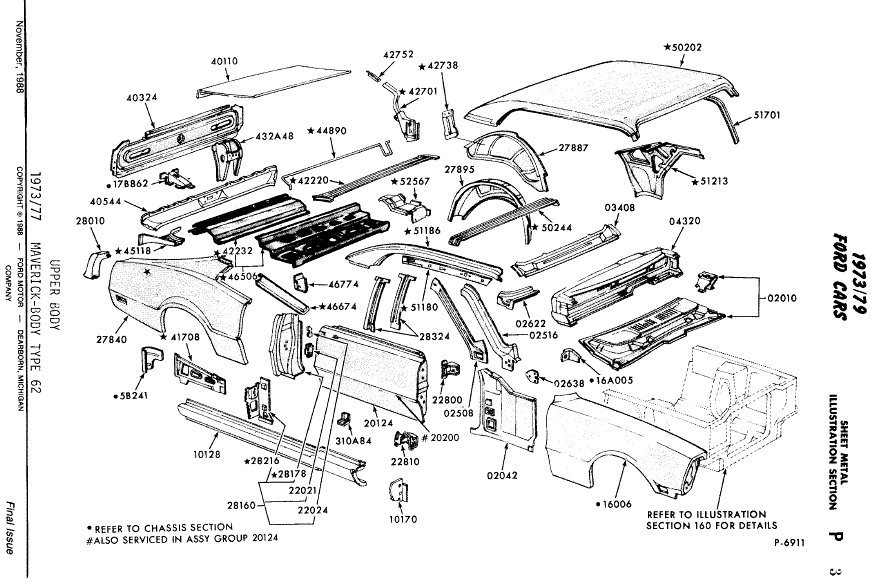

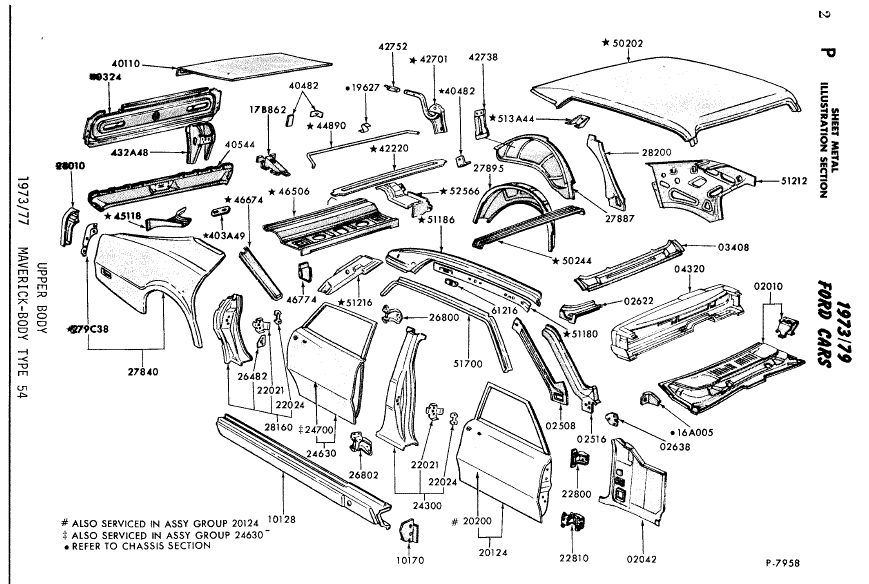

74-77 Lower Body	70-72 Upper Body 62	71-72 Upper Body 54	73-77 Upper Body 54

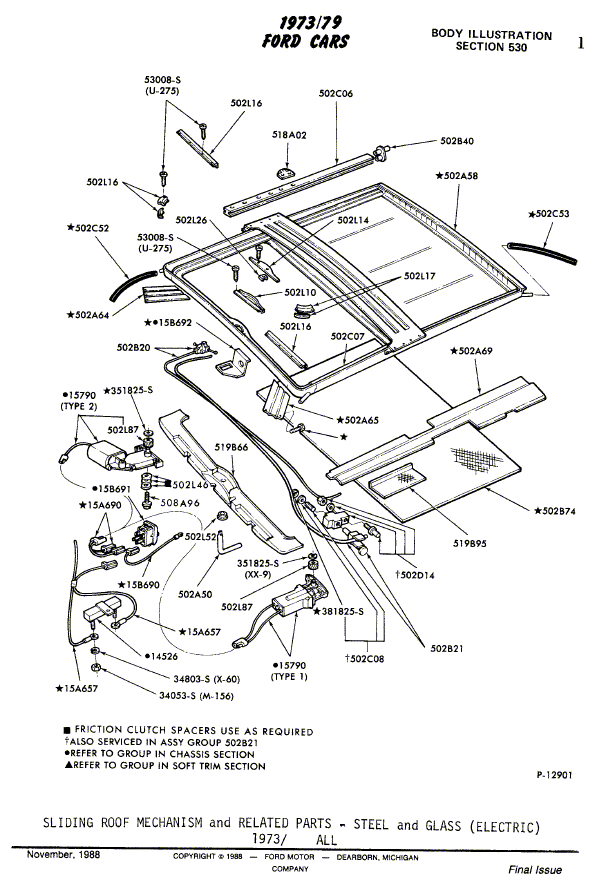

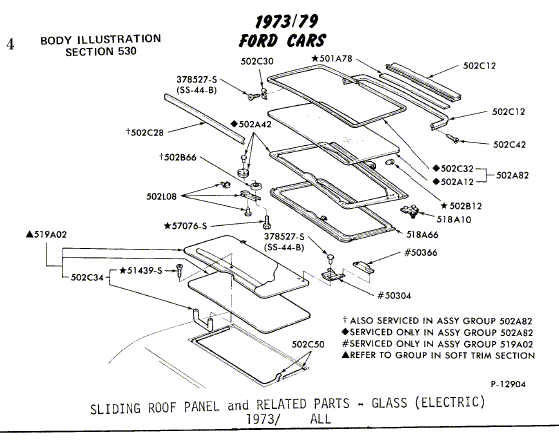

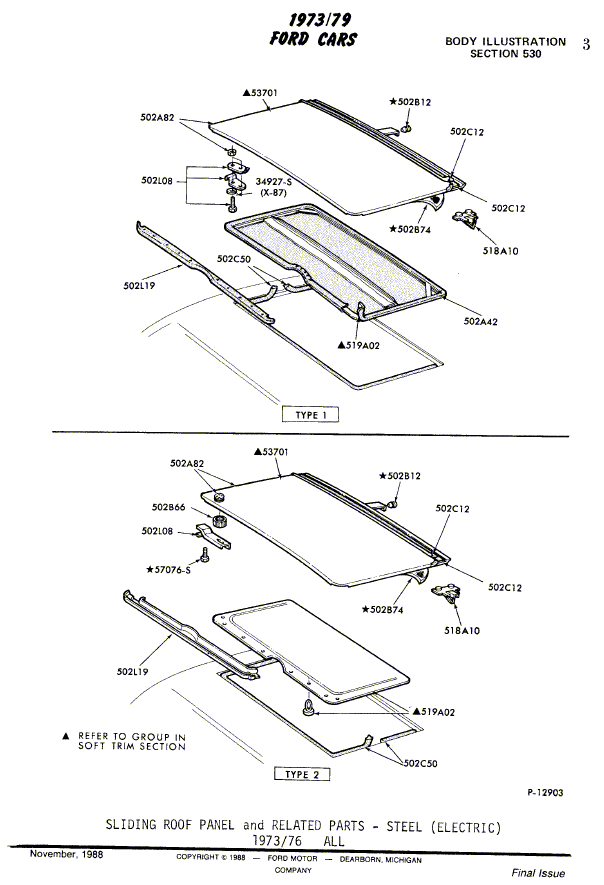

73-77 Upper Body 62	Sliding Roof Mechanism (Electric)	Sliding Roof Panel (Electric)	Sliding Roof Glass-Panel (Electric)
