Dash Board

The main difference in the dash board is the lower corners. The early dash has rounded corners and the later dash with glove box has squared corners. Also the hole for the wiper and headlight switch bezel are larger on the later glove box models. The support brace behind the cluster are different on the '73-'77 models. The '76-'77 lower dash has a removable cover where the parking brake handle previous occupied to access the fuse's.

In '72, instead of having the "Fasten Seat Belt" light in the gauge cluster, this light moved toward the middle of the dash. Starting in '73 this light returned to the cluster. Two optional wood grain plaque was offered in '72, with or without AC. The package tray dash could be had with or without lower chrome trim. Radio delete plate changed when the lower dash changes.

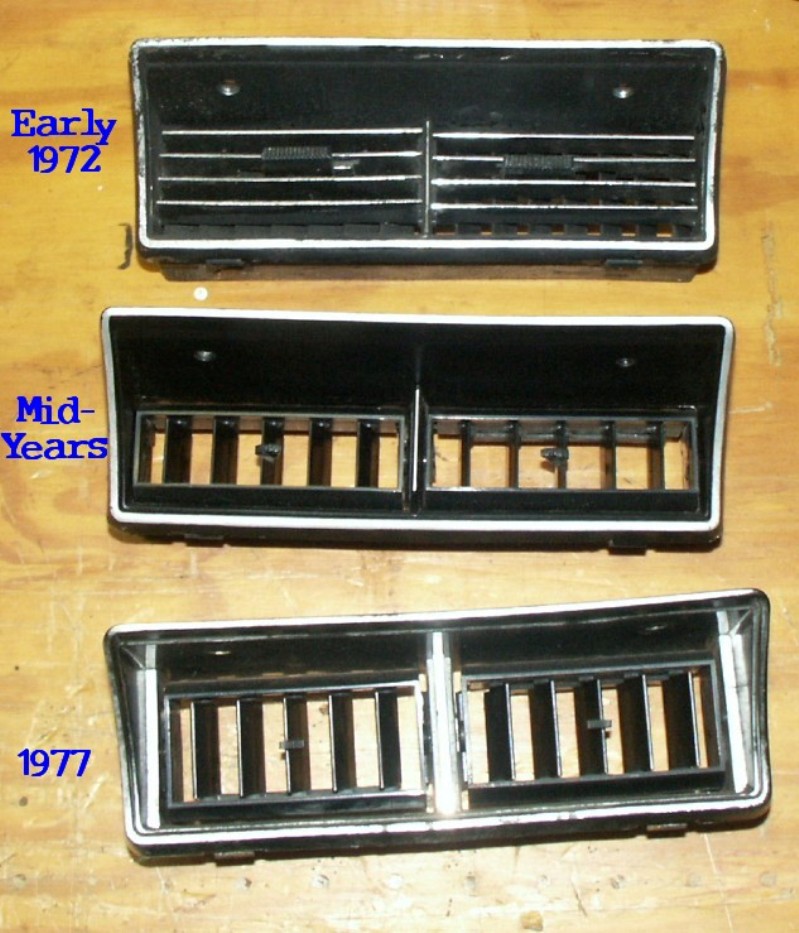

The AC vent in the center of dash changed three times during the production run. The early vent louvers are horizontal and made of metal. The mid '72-'75 has plastic with vertical louvers. The '76-'77 vent is not as wide as the previous years.

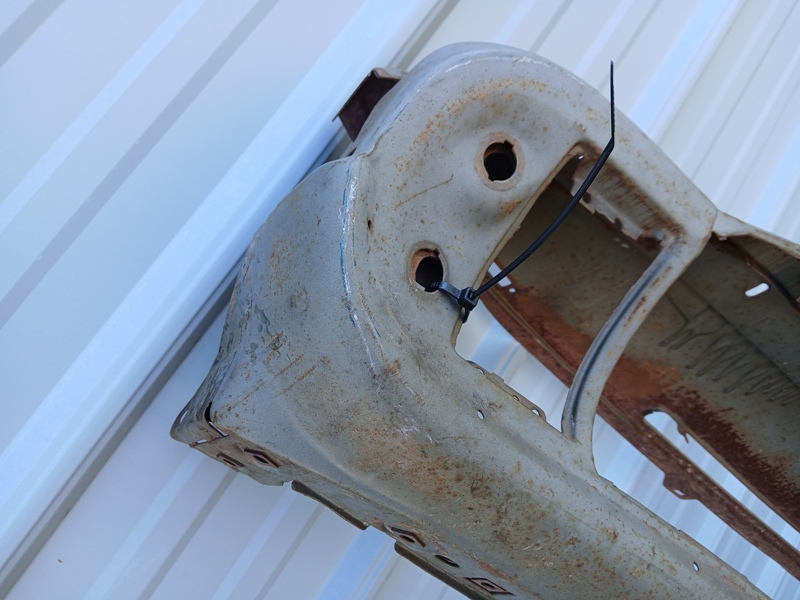

70-73 has round corners

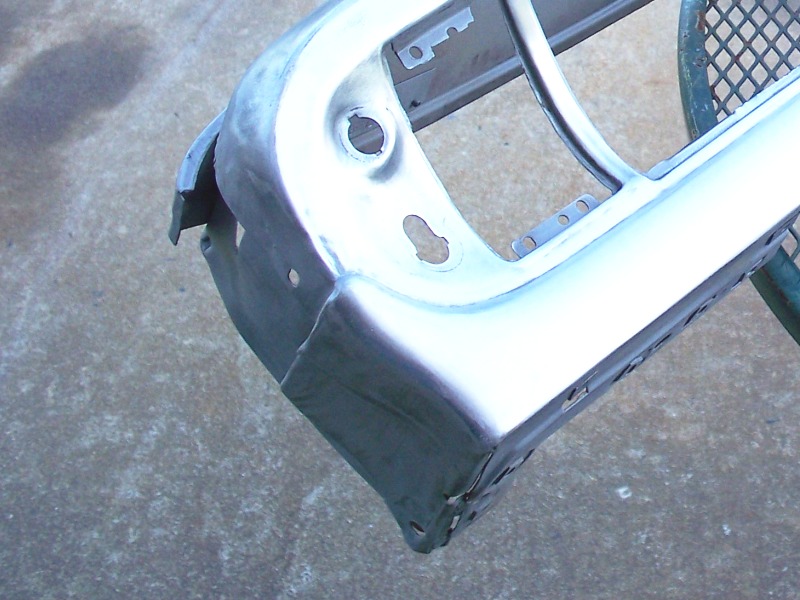

Early 73-77 has squared corners

Also the support behind the cluster was changed

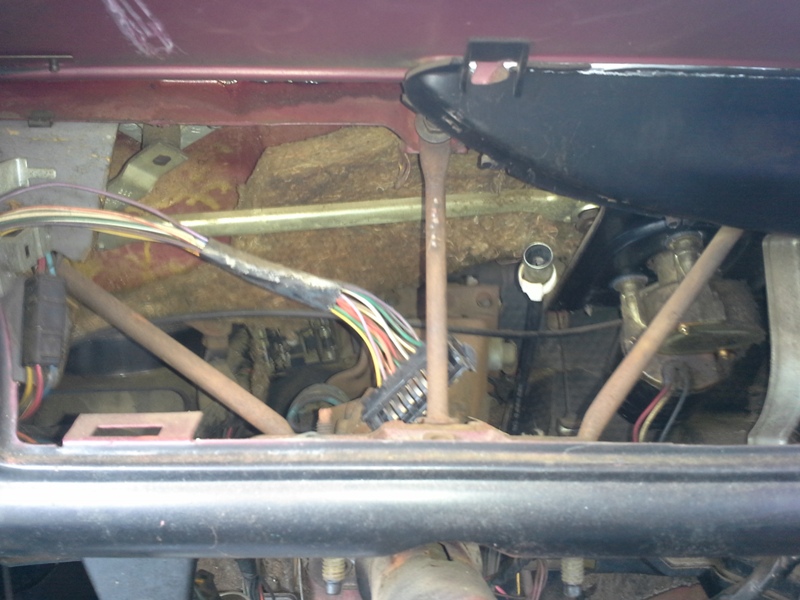

70-72 Support

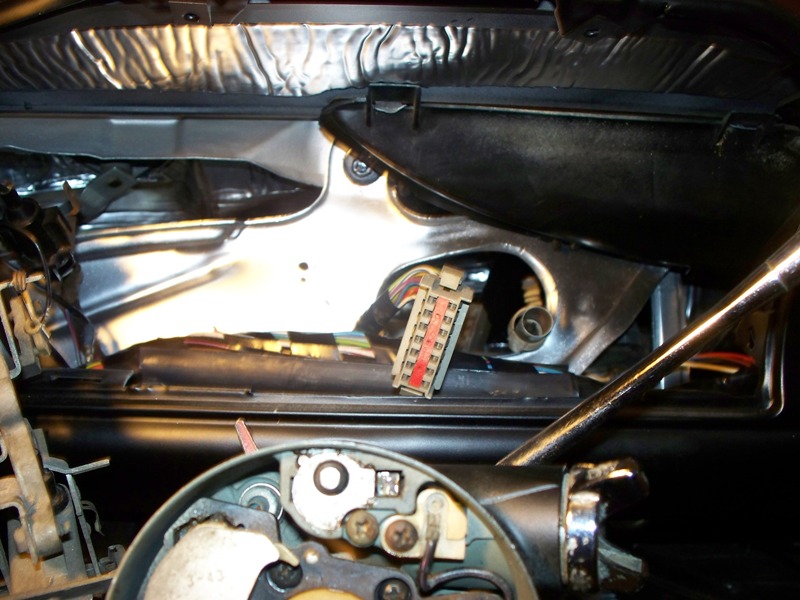

73-77 Support

Dash Knobs

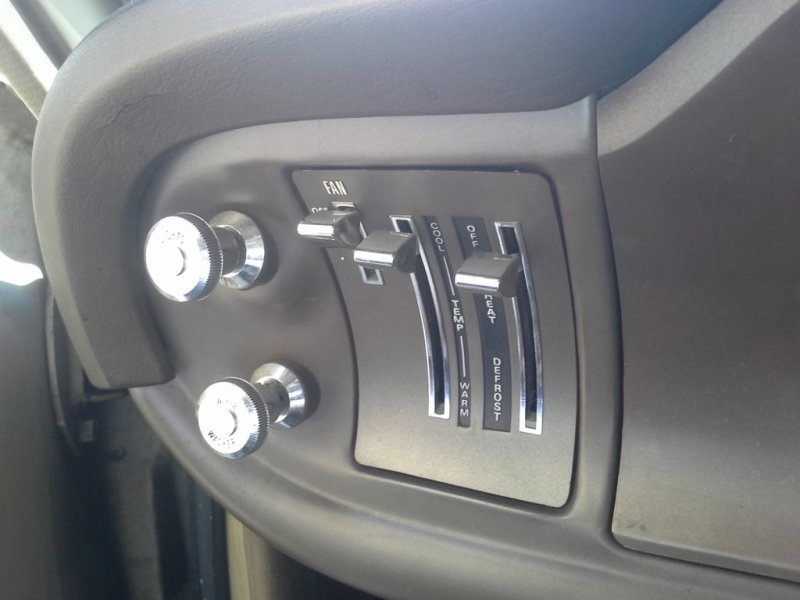

70-71 Dash Knobs

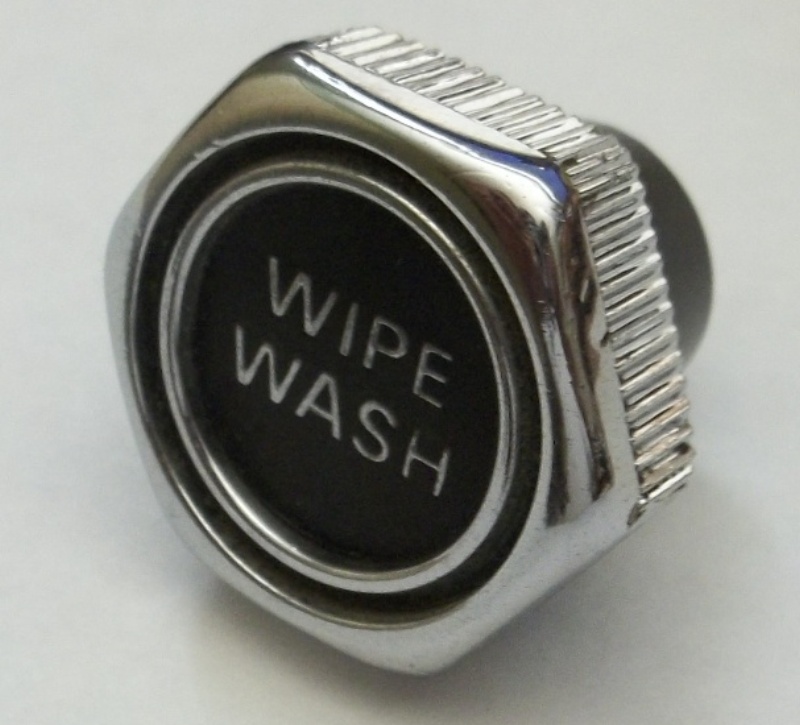

'72 Wiper/Washer Knob

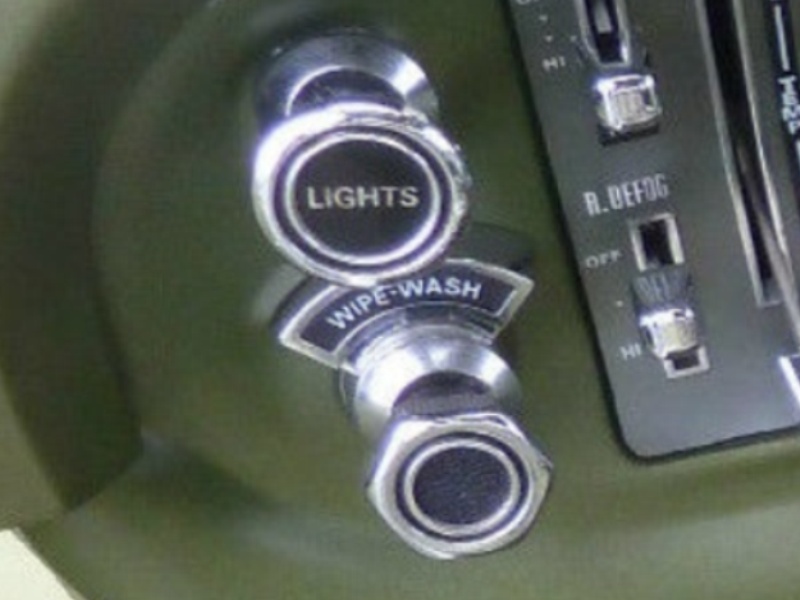

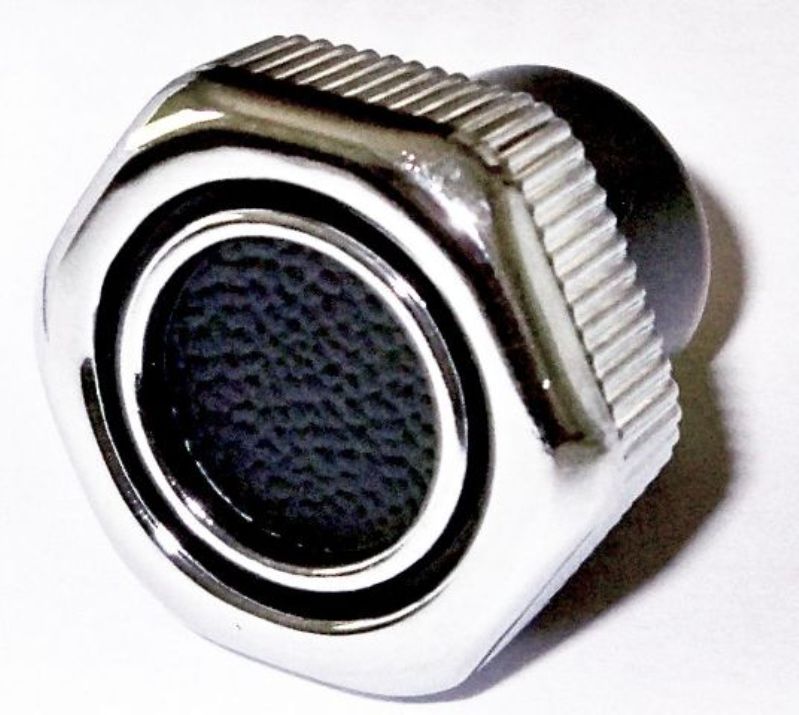

'73-'77 Wiper/Washer Knob

73-77

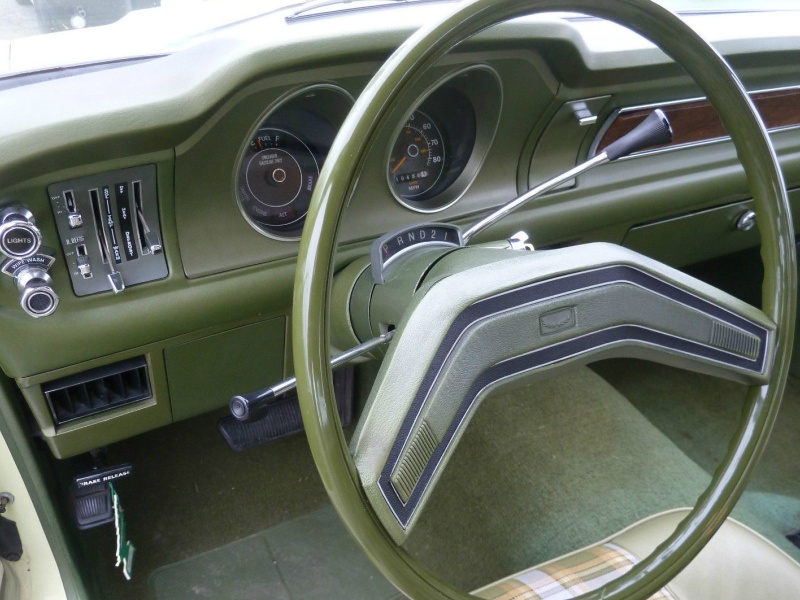

'77 Dash
