Maverick and Comet Repair
Chassis Electrical
INSTRUMENT CLUSTER
Removal and Installation
- Disconnect the battery negative cable.

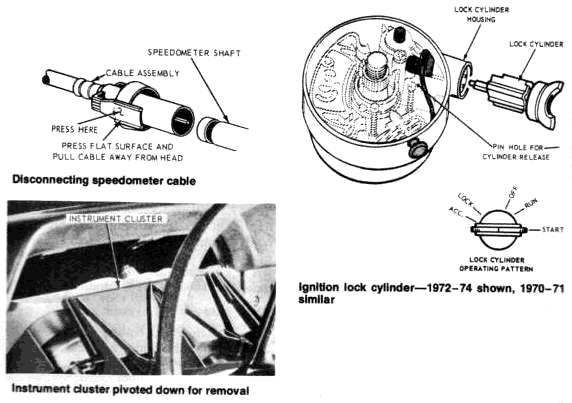

- From under the instrument panel, disconnect the speedometer cable by pressing the flat surface of the plastic connector and pulling the cable away from the head.
- Remove the two retaining screws at the top of the cluster and swing the cluster down from the panel.
- Disconnect the multiple connector plug from the printed circuit at the back of the cluster.
- Remove the cluster by tilting it out at the top and disengaging the brackets on the cluster lower edge from the slots in the panel.
- Reverse the above procedure to install.
