Maverick and Comet Exploded Views
Electrical
Click Thumbnail for Larger View...Use Back Button to
Return
Might have to left click image again to see
full size if your settings are set to auto resize

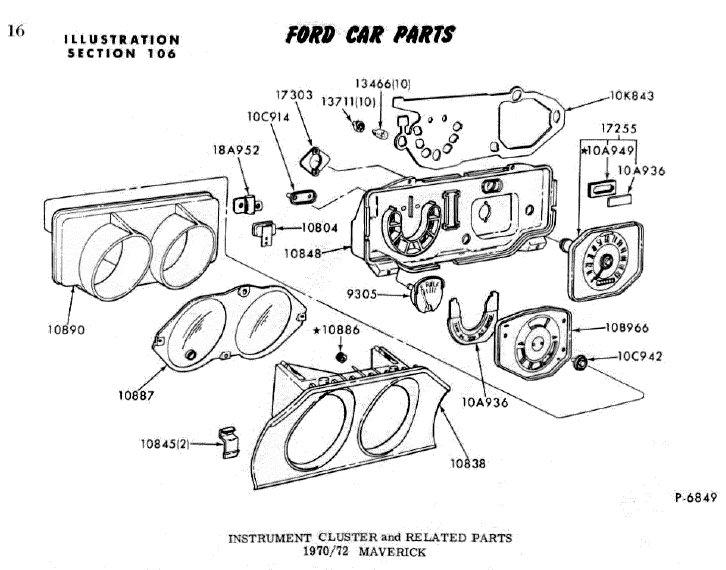

 70-72 Instrument Cluster |

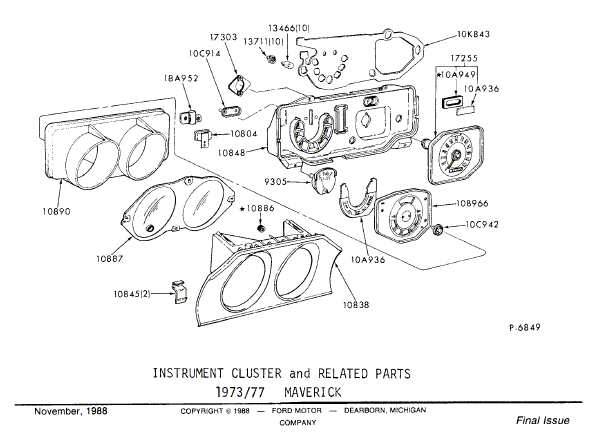

 73-77 Instrument Cluster |

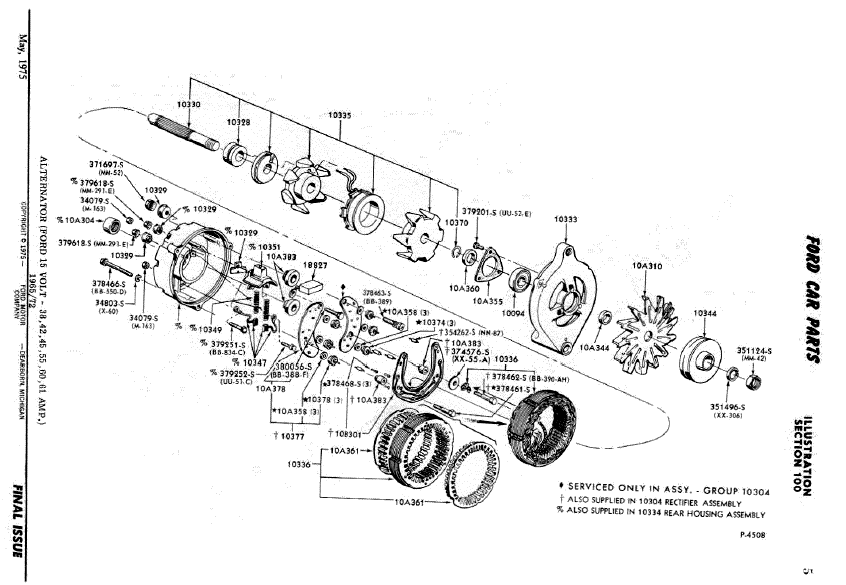

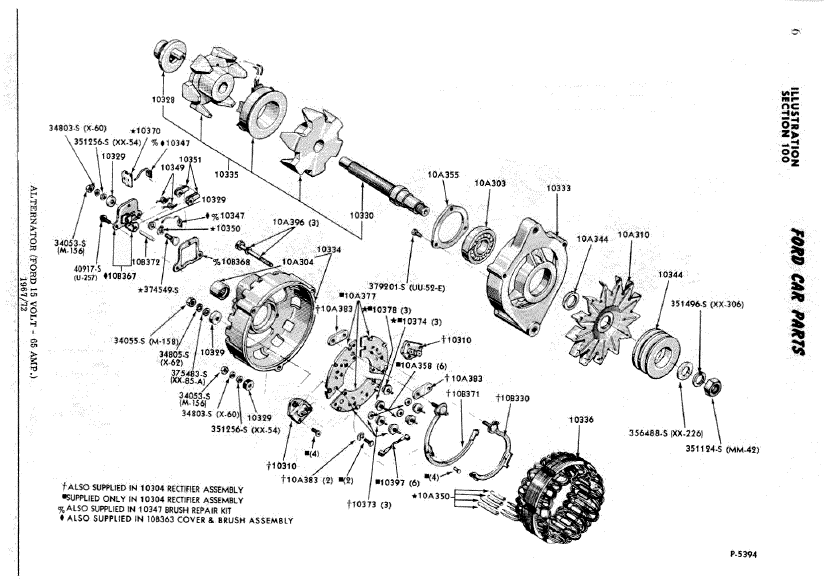

 65-72 Ford 38-61 Amp Alternator |

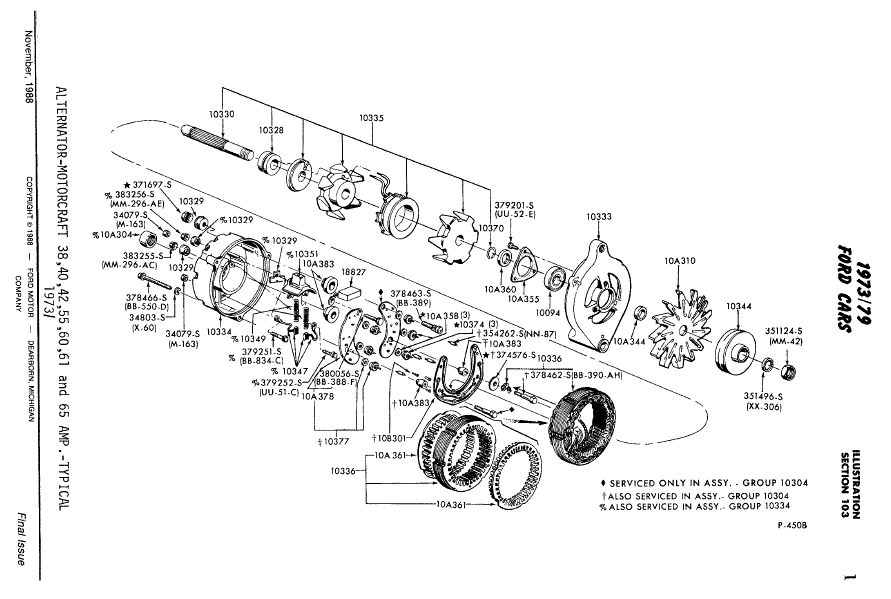

 73-79 Ford 38-65 Amp Alternator |
 Ford 65 Amp Alternator |

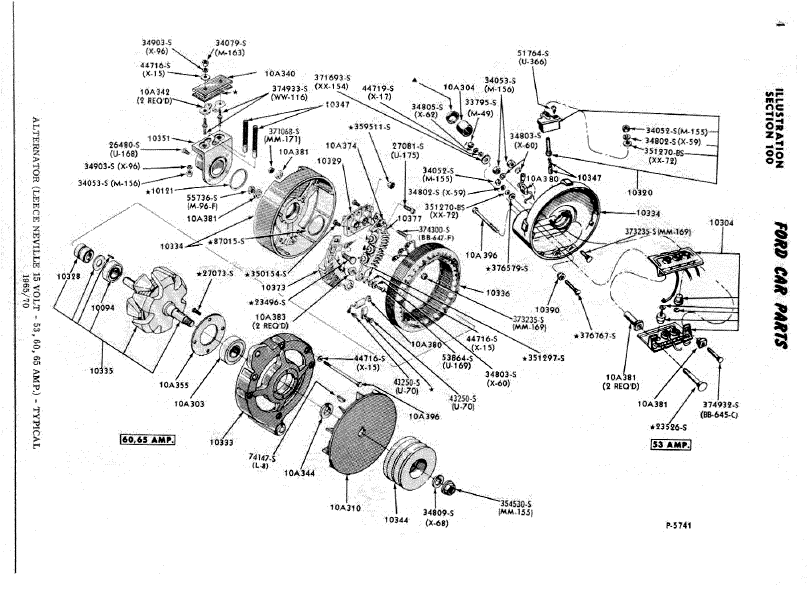

 Leece Neville 65 Amp Alternator |

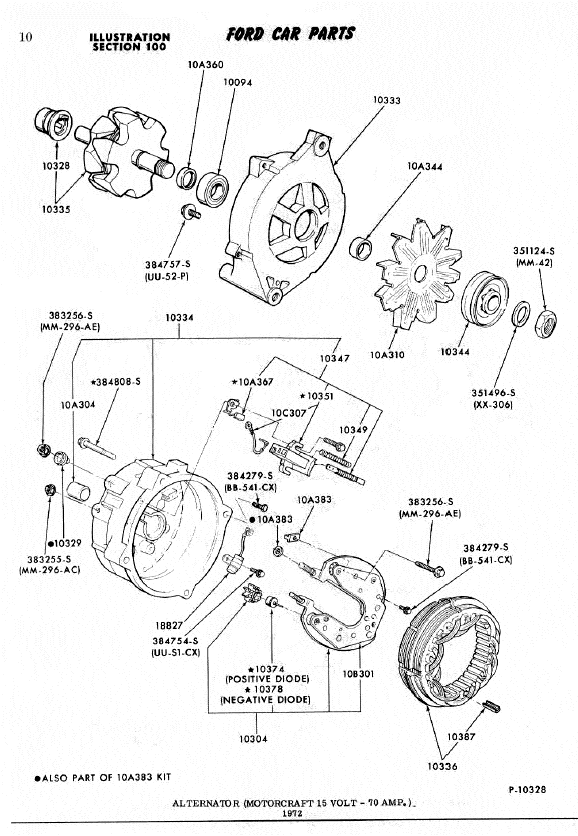

 Motocraft 70 Amp Alternator |

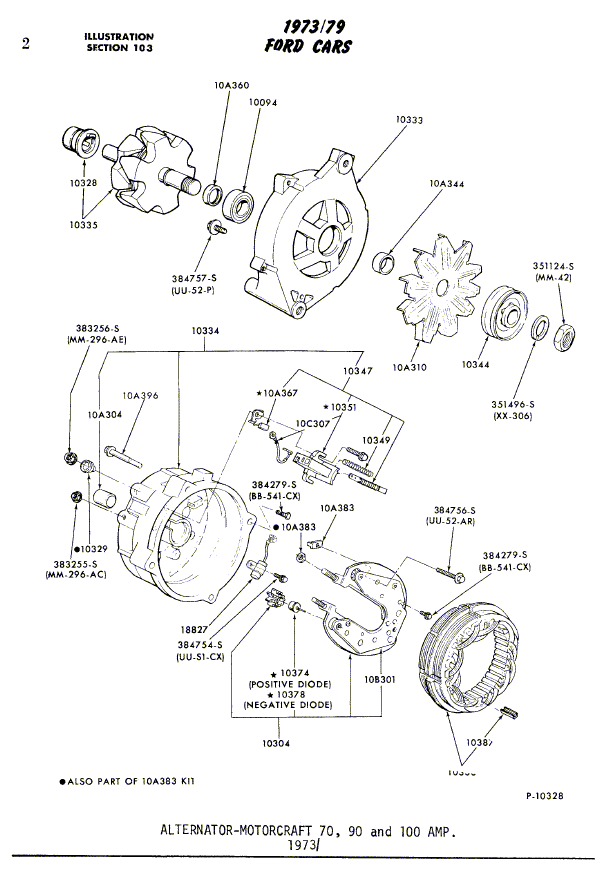

 Motocraft 73-79 70, 90 and 100 Amp Alternator |

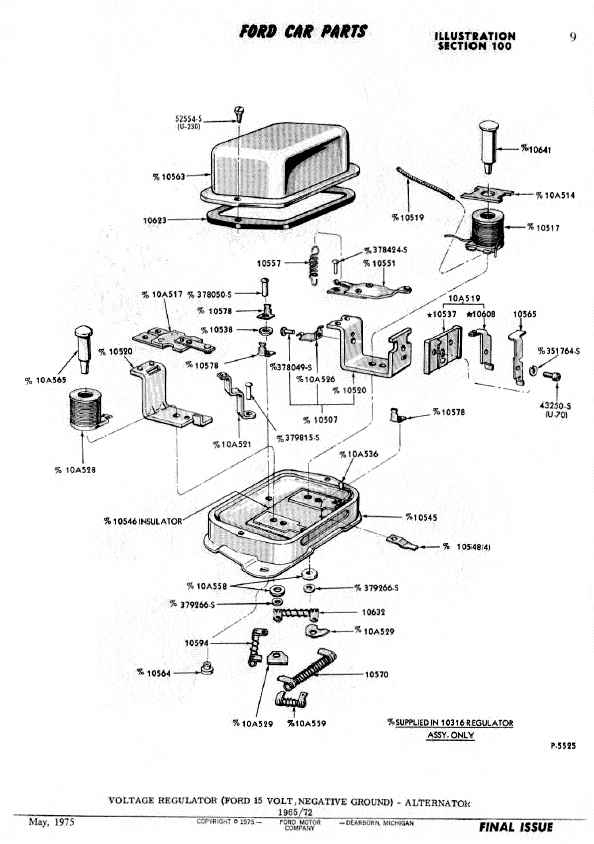

 Voltage Regulator |

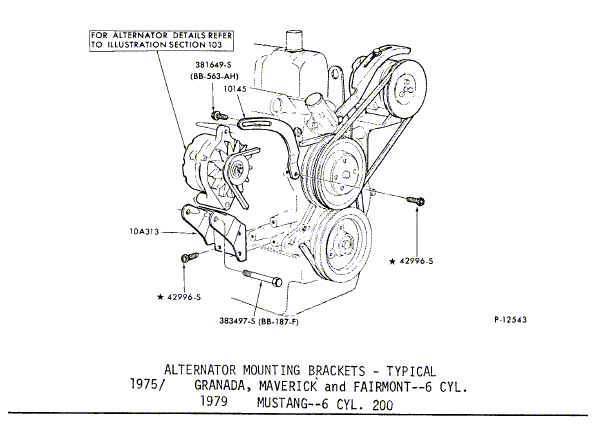

 75-79 6 Cyl Alt. Mounting Bracket |

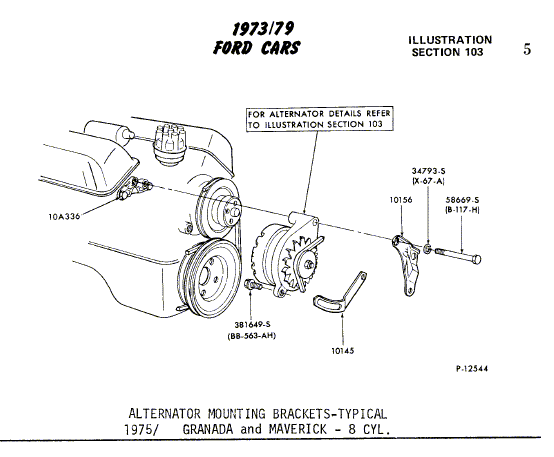

 75-79 8 Cyl Alt. Mounting Bracket |

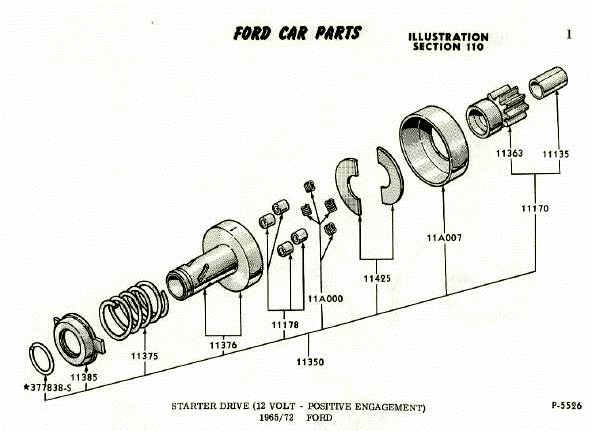

 65-72 Starter Drive |

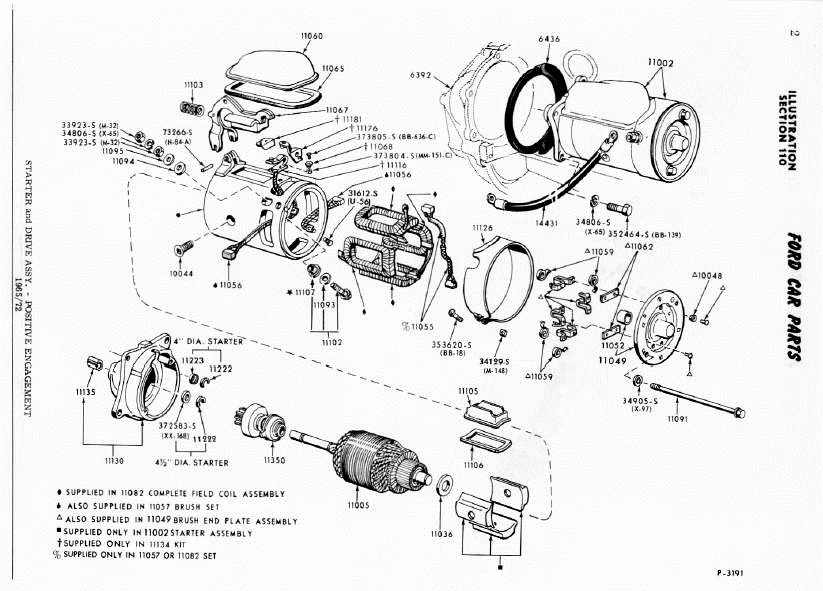

 65-72 Starter |
 73-77 Starter |

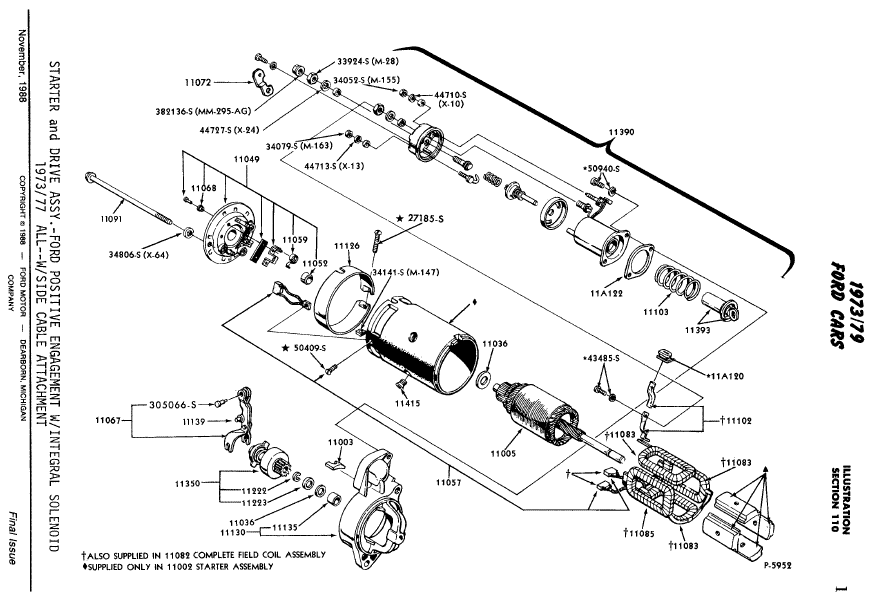

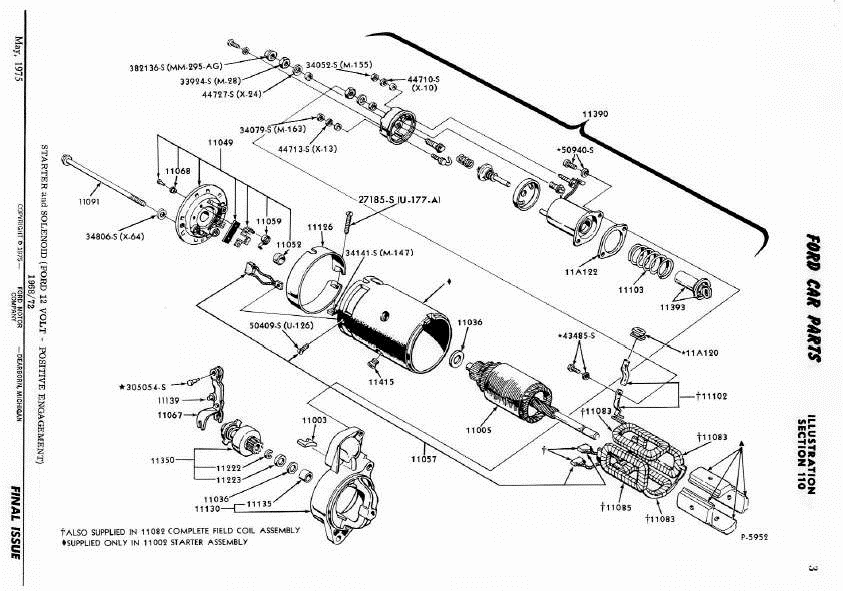

 Starter w/Solenoid |

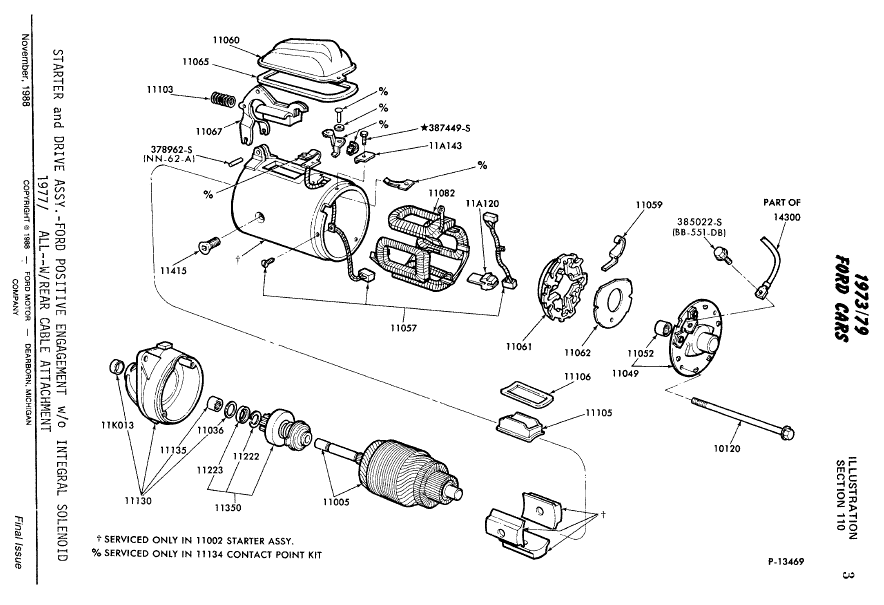

 77-79 w/o Integral Solenoid |

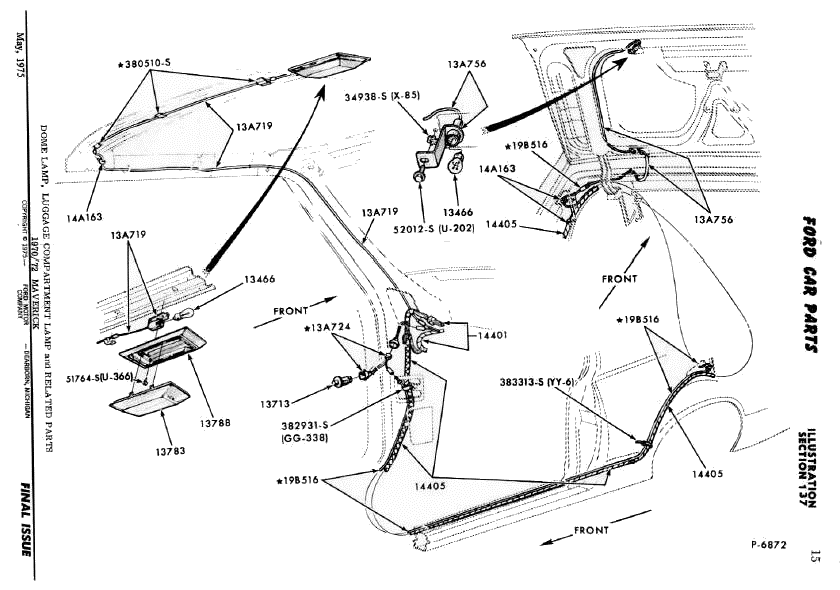

 70-72 Dome, Trunk Light |

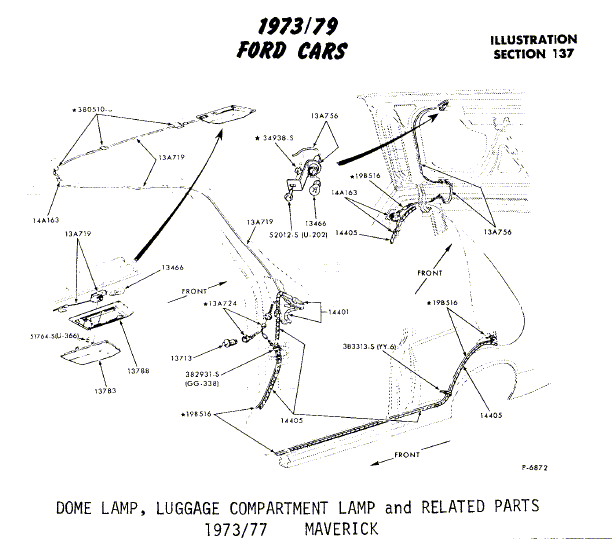

 73-77 Dome, Trunk Light |

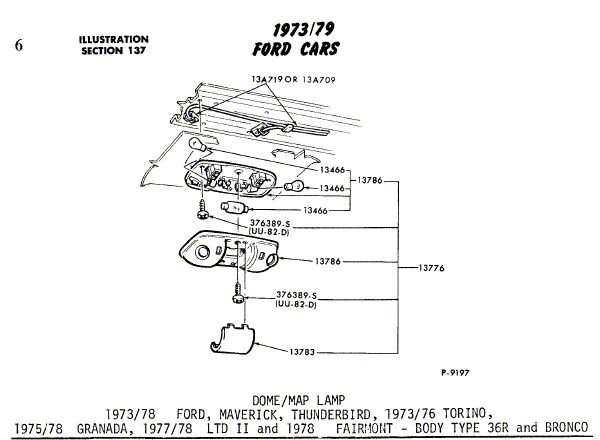

 73-77 Dome/Map Light |

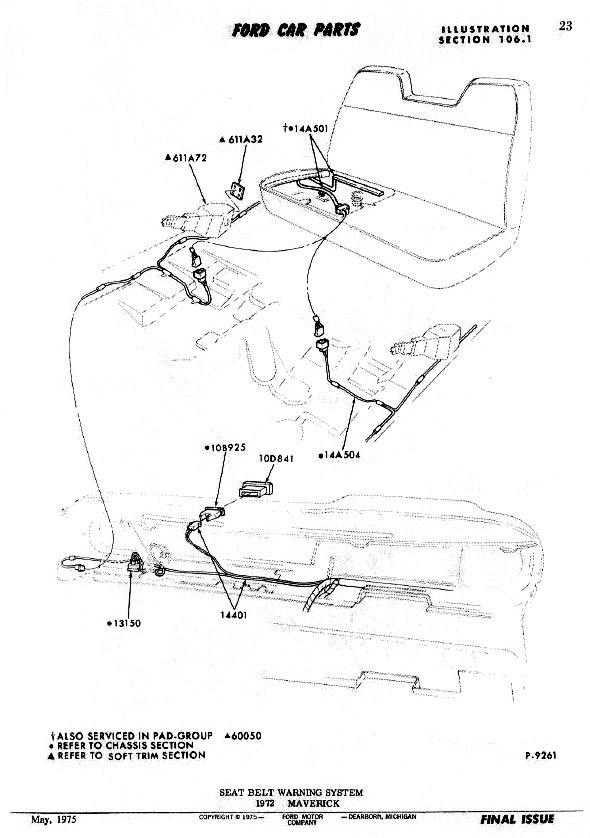

 72 Seatbelt Warning System |

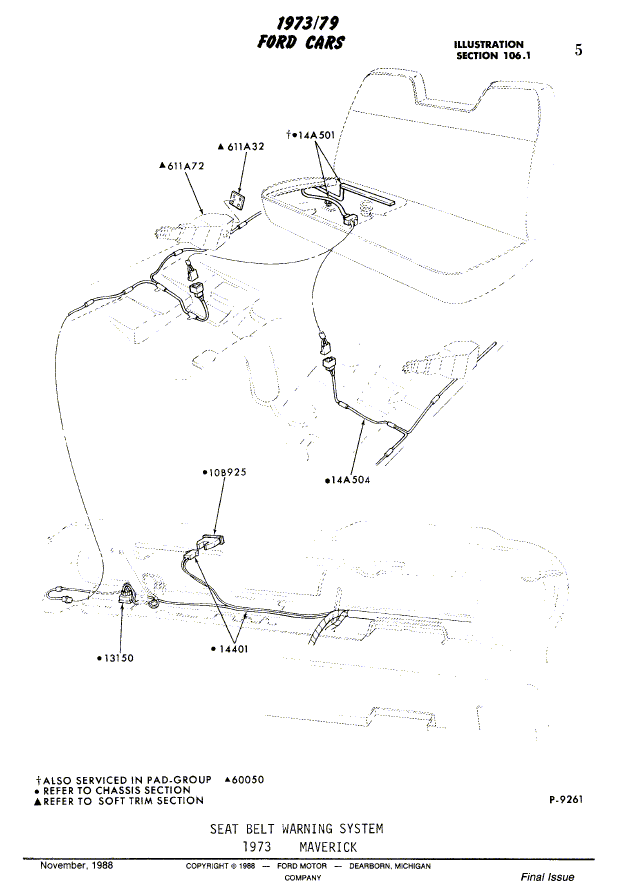

 73 Seatbelt Warning System |

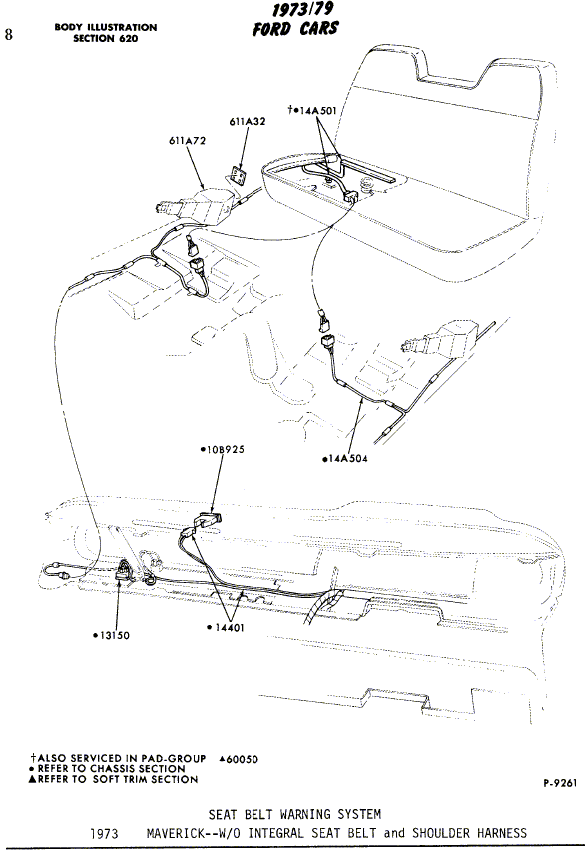

 73 Seatbelt Warning System w/o Integral Belts |

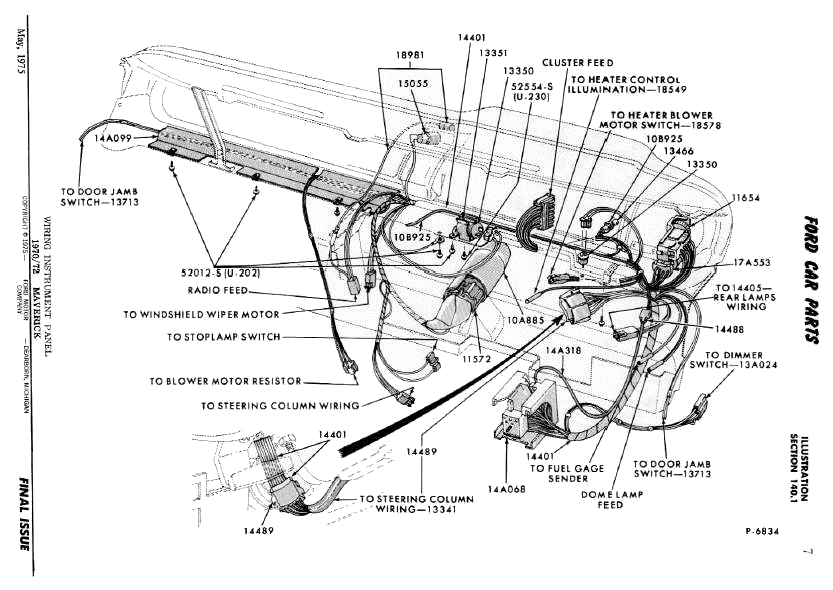

 70-72 Instrument Panel Wiring |

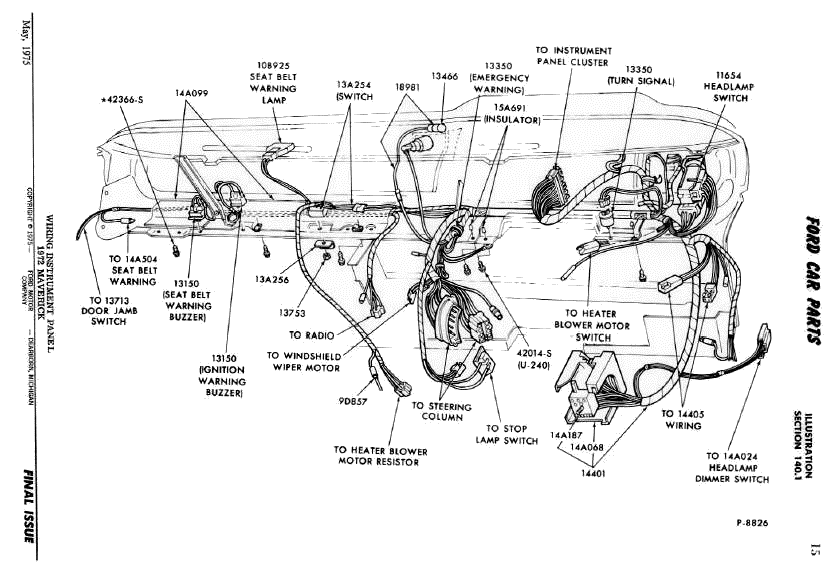

 72 Instrument Panel Wiring |

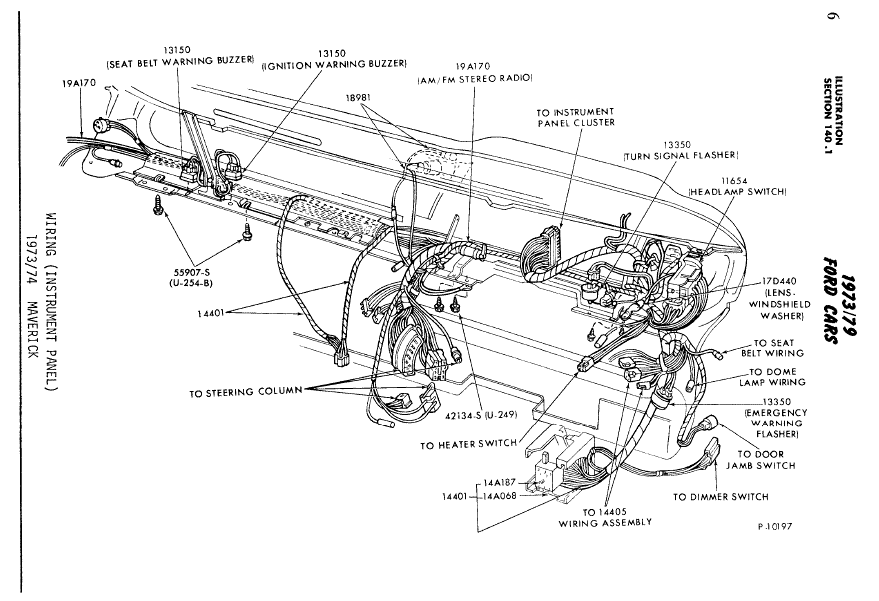

 73-74 Instrument Panel Wiring |

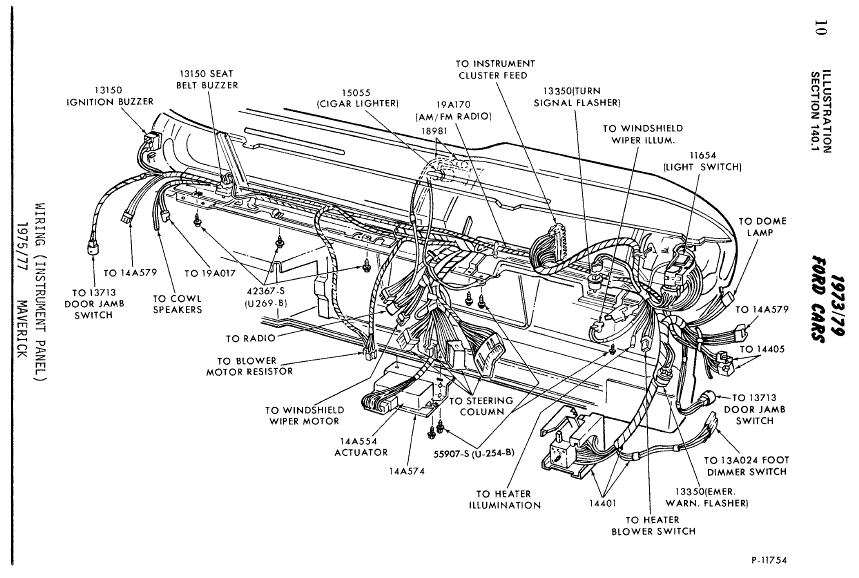

 75-77 Instrument Panel Wiring |

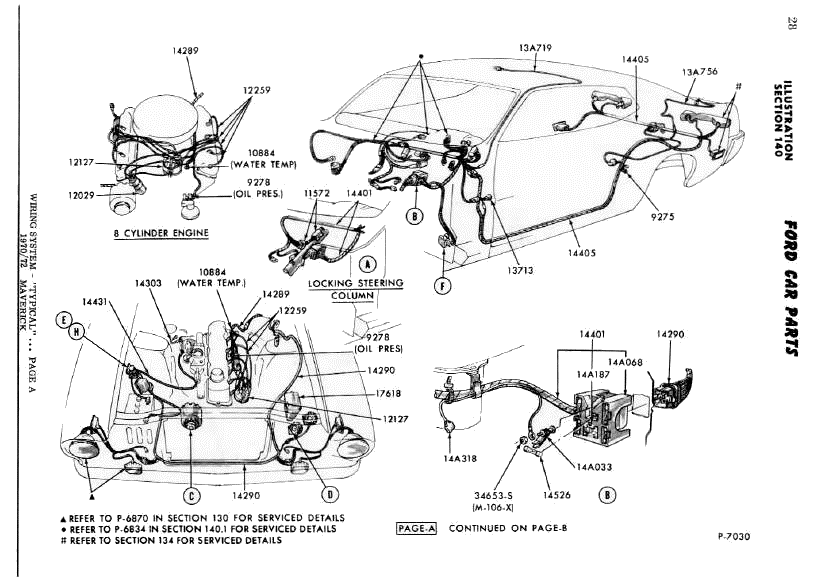

 70-72 Wiring System page A |

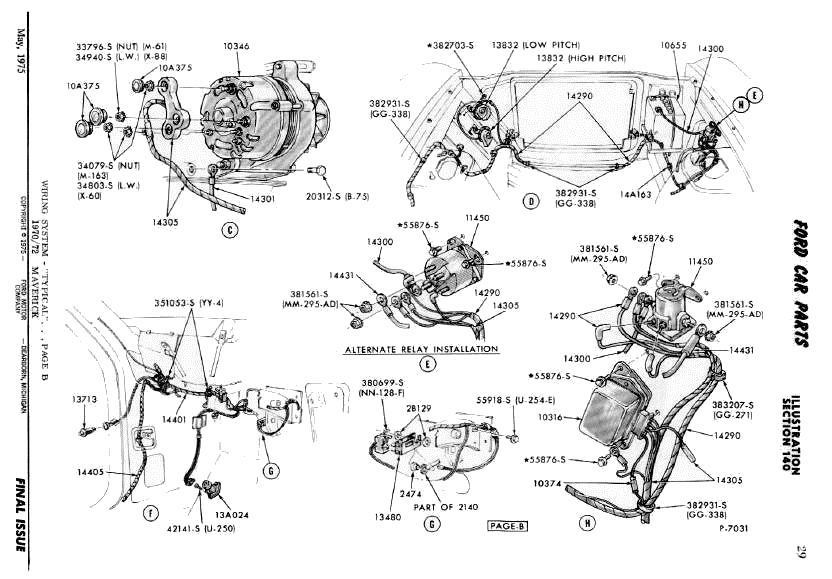

 70-72Wiring System page B |

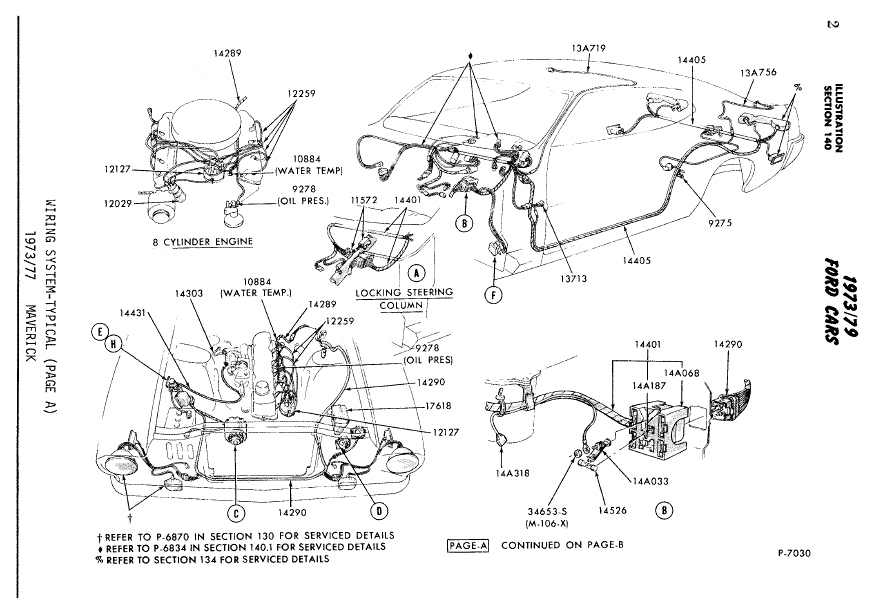

 73-77 Wiring System page A |

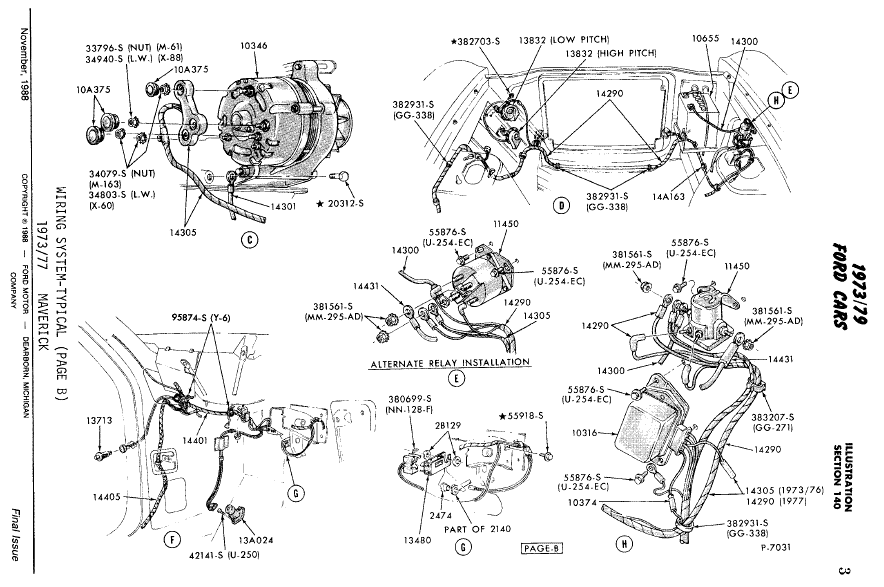

 73-77 Wiring System page B |

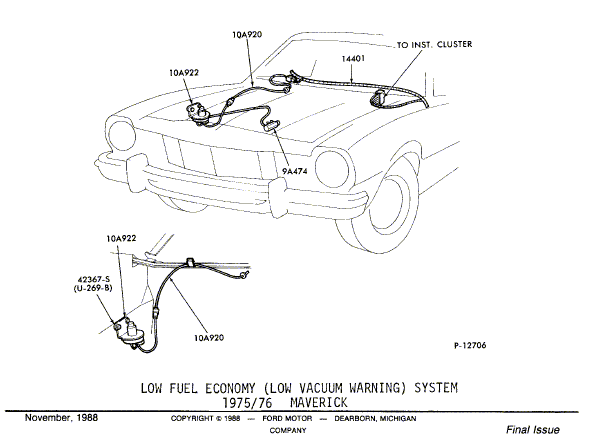

 75-76 Low Fuel Economy System |

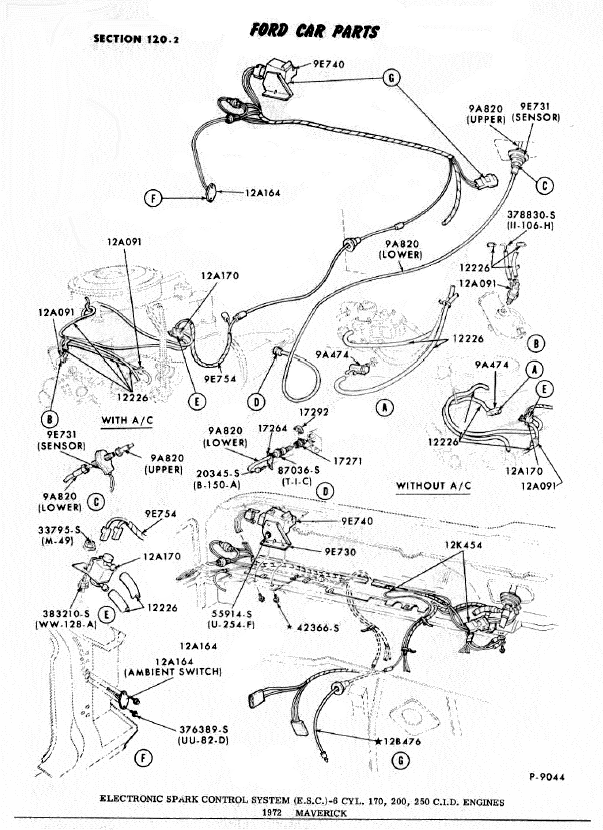

 Electronic Spark Control 6 Cylinder |

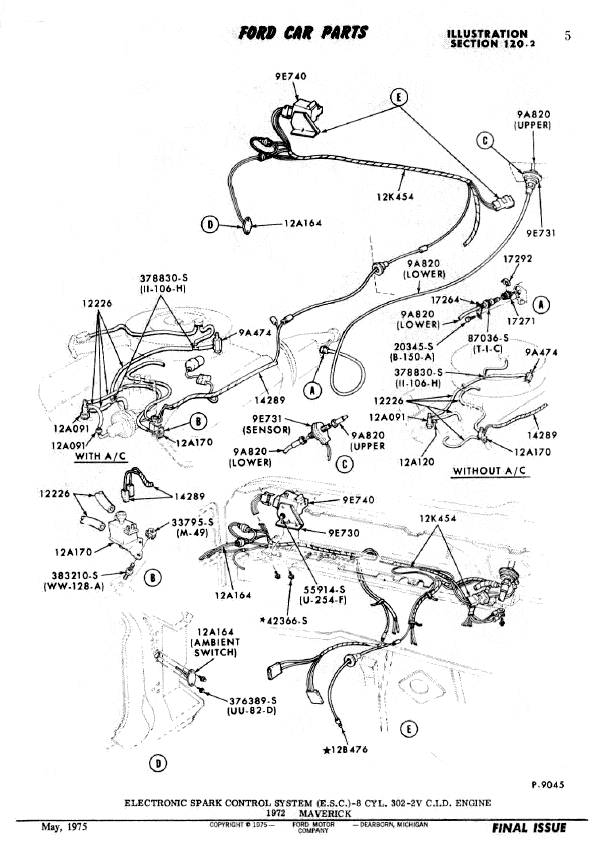

 Electronic Spark Control 8 Cylinder |

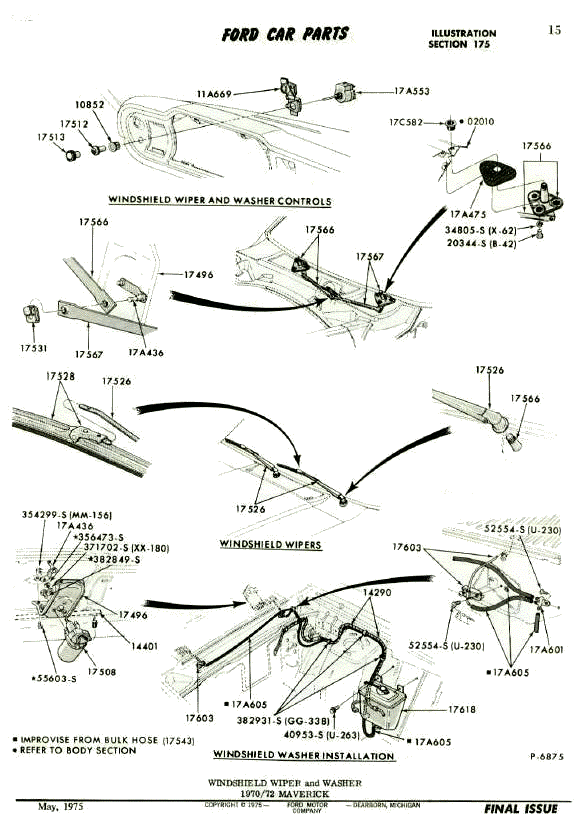

 70-72 Wiper and Washer |

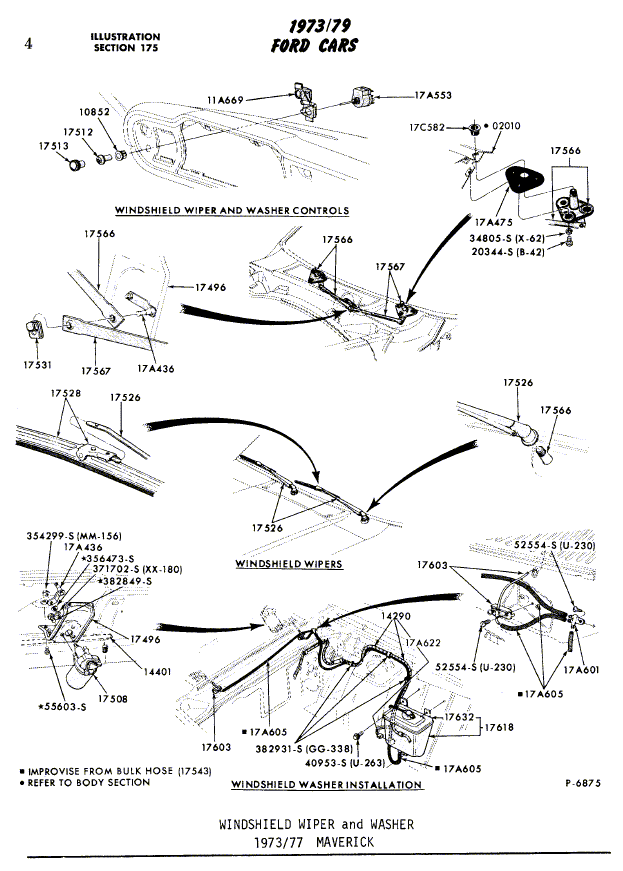

 73-77 Wiper and Washer |

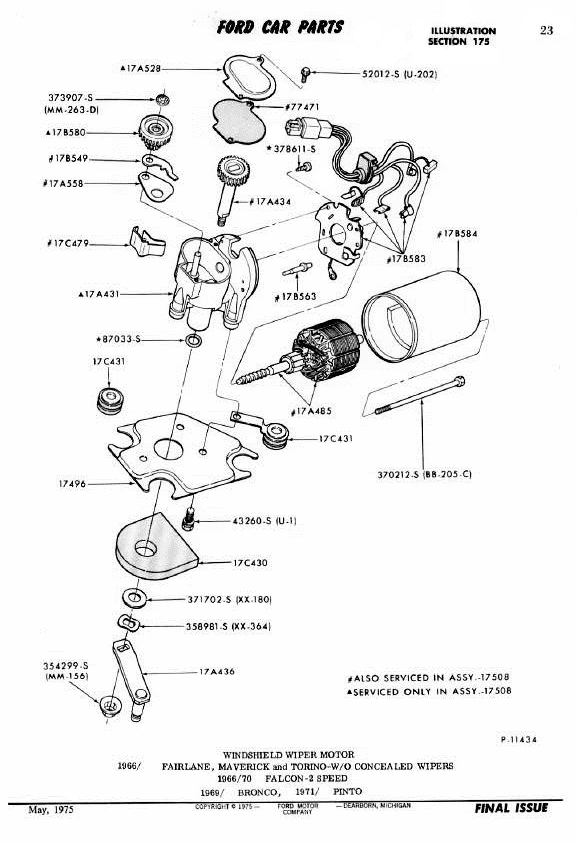

 70-72 Wiper Motor |

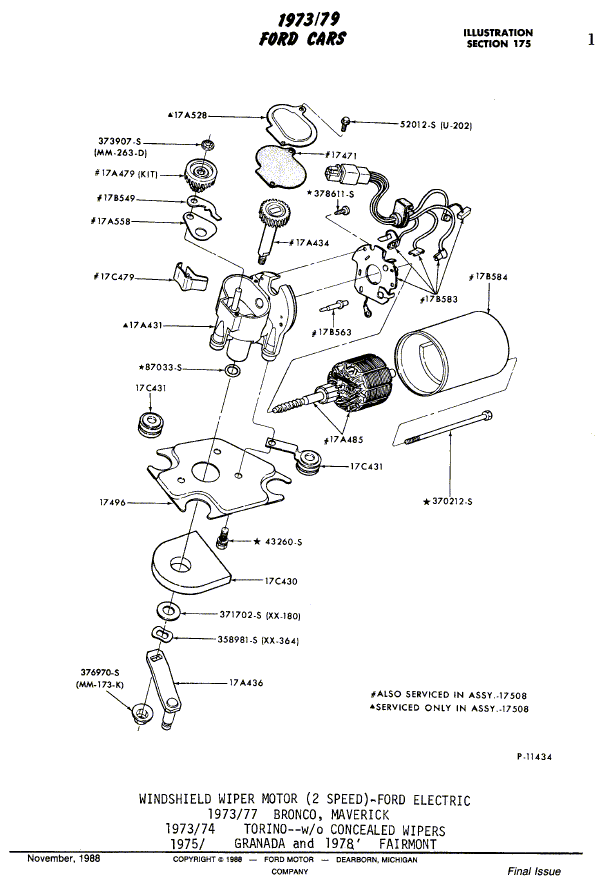

 73-77 Wiper Motor |

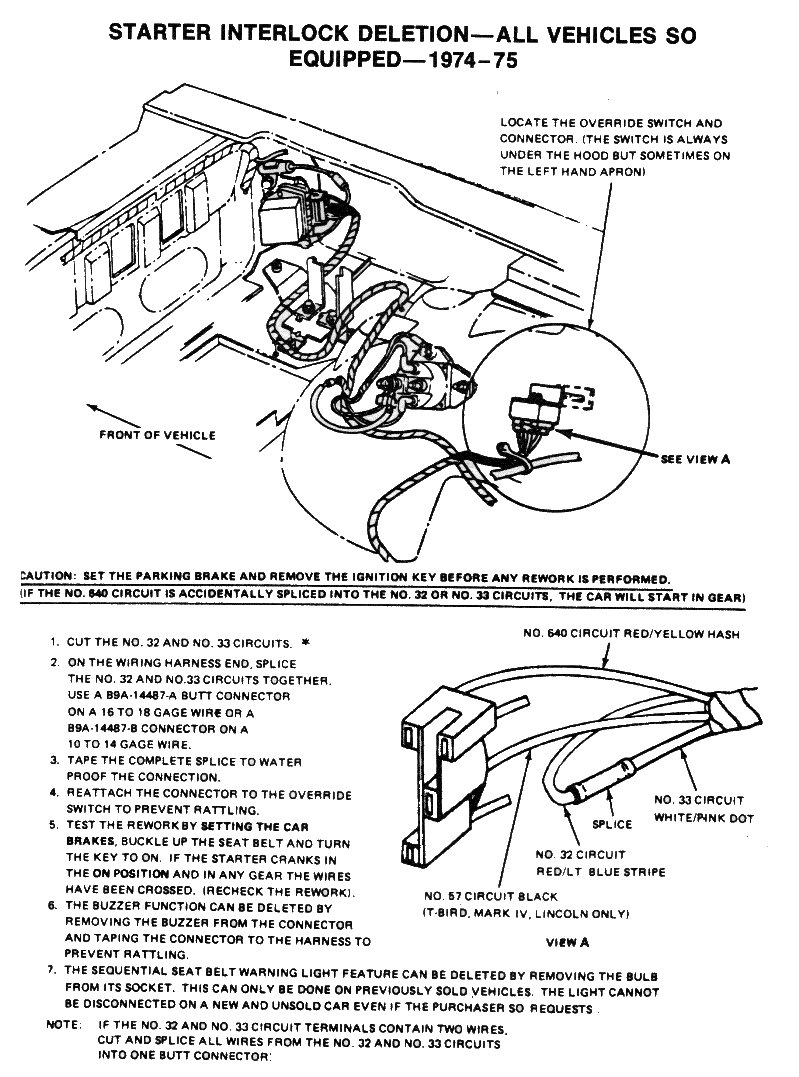

 Starter Interlock Deletion |

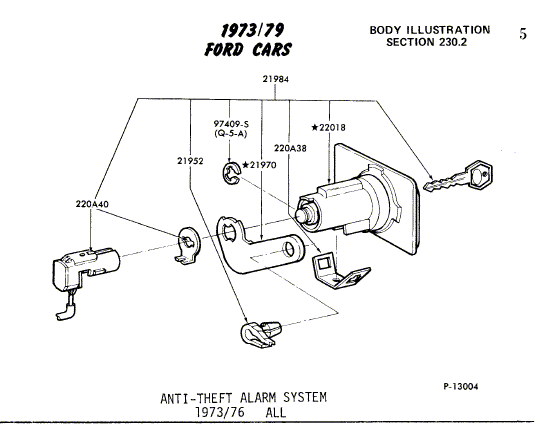

 73-76 Anti-Theft Alarm System |

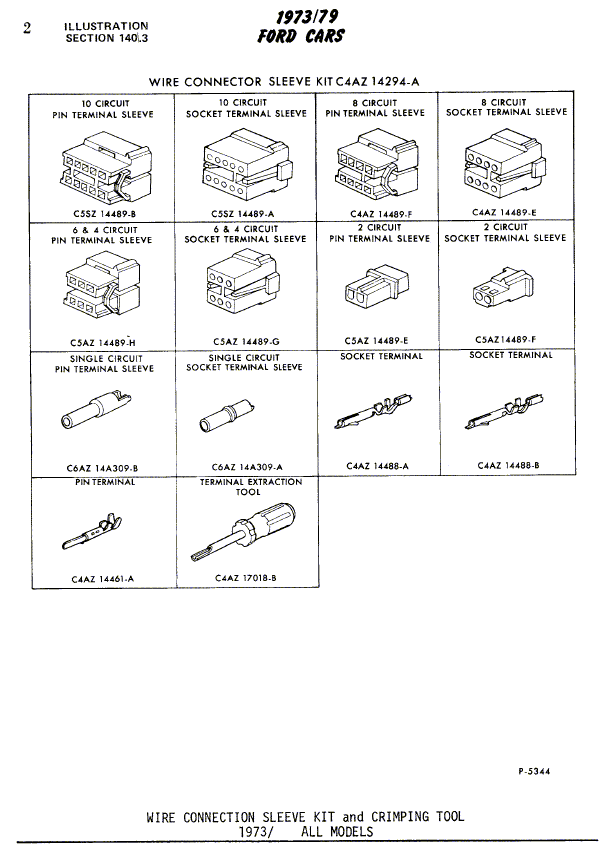

 Wire Connection Sleeve |
