Ford Maverick

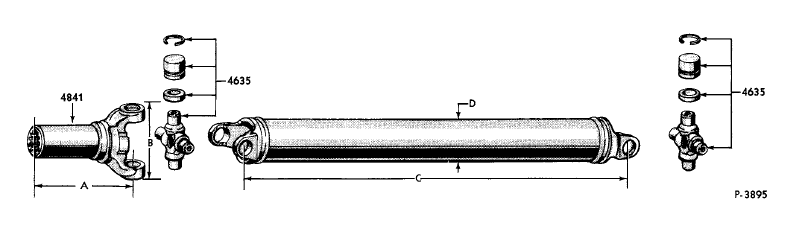

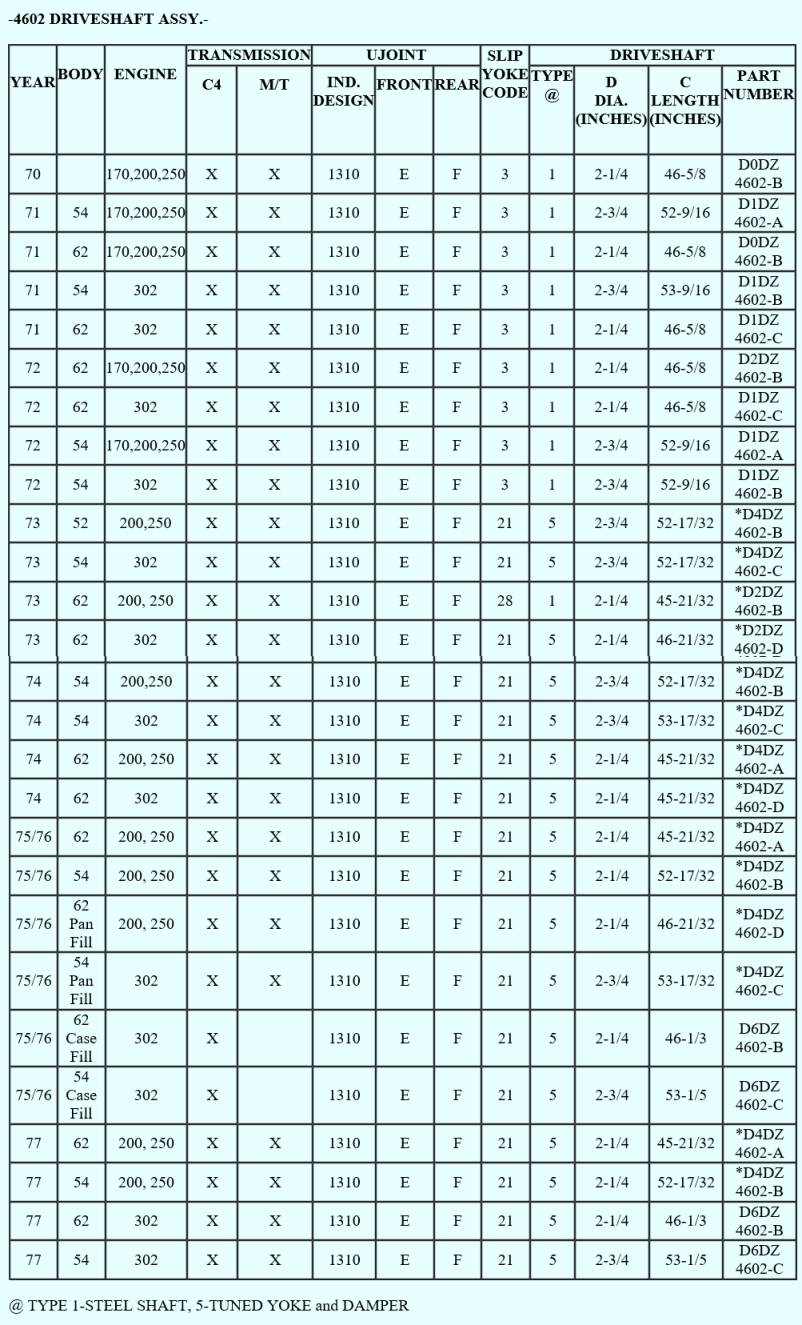

-4602 DRIVESHAFT ASSY.-

border="0b

YEAR



BODY



ENGINE



TRANSMISSION UJOINT SLIP
YOKE
CODE



DRIVESHAFT
C4



M/T



IND.
DESIGN


FRONT



REAR



TYPE
@



D
DIA.
(INCHES)

C
LENGTH
(INCHES)

PART NUMBER



70   170,200,250 X X 1310 E F 3 1 2-1/4 46-5/8 D0DZ 4602-B
71 54 170,200,250 X X 1310 E F 3 1 2-3/4 52-9/16 D1DZ 4602-A
71 62 170,200,250 X X 1310 E F 3 1 2-1/4 46-5/8 D0DZ 4602-B
71 54 302 X X 1310 E F 3 1 2-3/4 53-9/16 D1DZ 4602-B
71 62 302 X X 1310 E F 3 1 2-1/4 46-5/8 D1DZ 4602-C
72 62 170,200,250 X X 1310 E F 3 1 2-1/4 46-5/8 D2DZ 4602-B
72 62 302 X X 1310 E F 3 1 2-1/4 46-5/8 D1DZ 4602-C
72 54 170,200,250 X X 1310 E F 3 1 2-3/4 52-9/16 D1DZ 4602-A
72 54 302 X X 1310 E F 3 1 2-3/4 52-9/16 D1DZ 4602-B
73 52 200,250 X X 1310 E F 21 5 2-3/4 52-17/32 *D4DZ 4602-B
73 54 302 X X 1310 E F 21 5 2-3/4 52-17/32 *D4DZ 4602-C
73 62 200, 250 X X 1310 E F 28 1 2-1/4 45-21/32 *D2DZ 4602-B
73 62 302 X X 1310 E F 21 5 2-1/4 46-21/32 *D2DZ 4602-D
74 54 200,250 X X 1310 E F 21 5 2-3/4 52-17/32 *D4DZ 4602-B
74 54 302 X X 1310 E F 21 5 2-3/4 53-17/32 *D4DZ 4602-C
74 62 200, 250 X X 1310 E F 21 5 2-1/4 45-21/32 *D4DZ 4602-A
74 62 302 X X 1310 E F 21 5 2-1/4 45-21/32 *D4DZ 4602-D
75/76 62 200, 250 X X 1310 E F 21 5 2-1/4 45-21/32 *D4DZ 4602-A
75/76 54 200, 250 X X 1310 E F 21 5 2-1/4 52-17/32 *D4DZ 4602-B
75/76 62
Pan Fill
200, 250 X X 1310 E F 21 5 2-1/4 46-21/32 *D4DZ 4602-D
75/76 54
Pan Fill
302 X X 1310 E F 21 5 2-3/4 53-17/32 *D4DZ 4602-C
75/76 62
Case Fill
302 X   1310 E F 21 5 2-1/4 46-1/3 D6DZ 4602-B
75/76 54
Case Fill
302 X   1310 E F 21 5 2-3/4 53-1/5 D6DZ 4602-C
77 62 200, 250 X X 1310 E F 21 5 2-1/4 45-21/32 *D4DZ 4602-A
77 54 200, 250 X X 1310 E F 21 5 2-1/4 52-17/32 *D4DZ 4602-B
77 62 302 X X 1310 E F 21 5 2-1/4 46-1/3 D6DZ 4602-B
77 54 302 X X 1310 E F 21 5 2-3/4 53-1/5 D6DZ 4602-C

@ TYPE 1-STEEL SHAFT, 5-TUNED YOKE and DAMPER

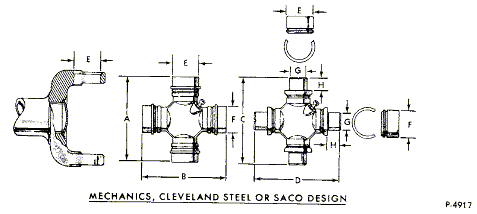

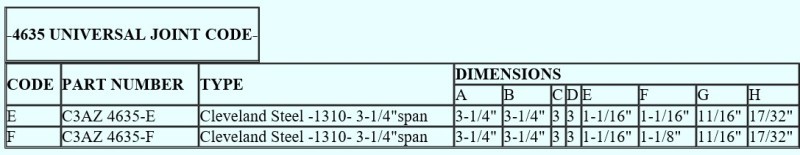

-4635 UNIVERSAL JOINT CODE-

CODE PART NUMBER TYPE DIMENSIONS
A B C D E F G H
E C3AZ 4635-E Cleveland Steel -1310- 3-1/4"span 3-1/4" 3-1/4" 3 3 1-1/16" 1-1/16" 11/16" 17/32"
F C3AZ 4635-F Cleveland Steel -1310- 3-1/4"span 3-1/4" 3-1/4" 3 3 1-1/16" 1-1/8" 11/16" 17/32"

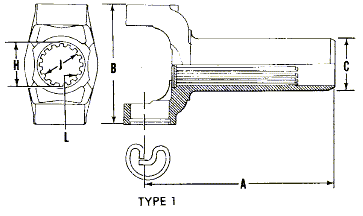

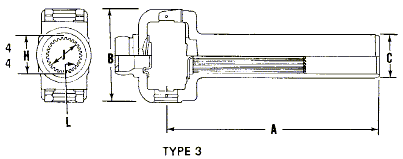

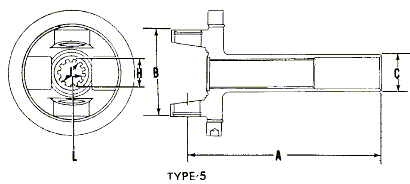

-4841 SLIP YOKE CODE-

TYPE CODE PART NUMBER A B C H J H
3 3 *C3AZ 4841-D 8-3/32" 3-1/2" 1-1/2" 1-7/32" 1-3/32" 28 spline
5 21 D1AZ 4841-A 8-1/2" 3-1/2" 1-1/2" 1-7/32" 1-3/32" 28 spline
1 28 D2ZZ 4841-A 8-1/4" 3-17/32" 1-1/2" 1-13/64" 1-7/64" 28 spline
