Maverick Rear Axle Assembly

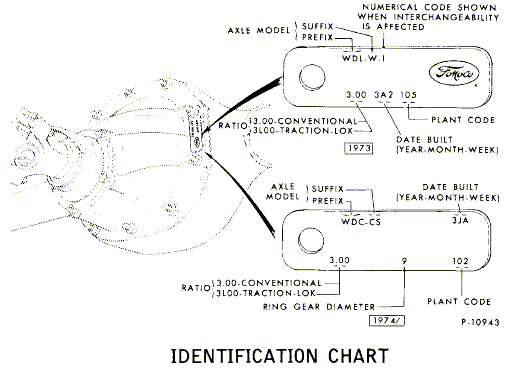

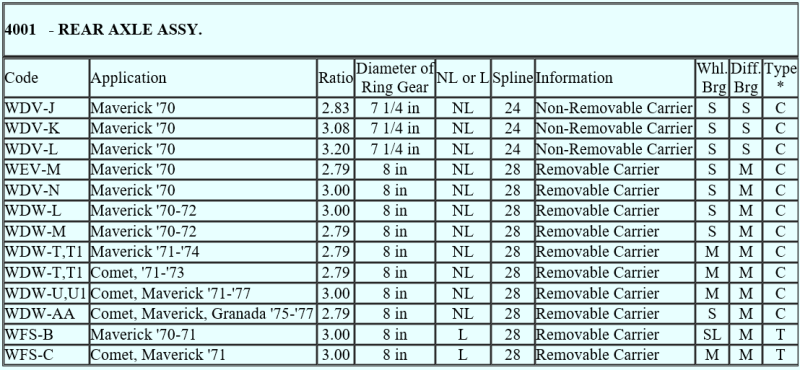

4001   - REAR AXLE ASSY.

Code Application Ratio Diameter of
Ring Gear
NL or L Spline Information Whl.
 Brg
Diff.
Brg
Type
*
WDV-J Maverick '70 2.83 7 1/4 in NL 24 Non-Removable Carrier S S C
WDV-K Maverick '70 3.08 7 1/4 in NL 24 Non-Removable Carrier S S C
WDV-L Maverick '70 3.20 7 1/4 in NL 24 Non-Removable Carrier S S C
WEV-M Maverick '70 2.79 8 in NL 28 Removable Carrier S M C
WDV-N Maverick '70 3.00 8 in NL 28 Removable Carrier S M C
WDW-L Maverick '70-72 3.00 8 in NL 28 Removable Carrier S M C
WDW-M Maverick '70-72 2.79 8 in NL 28 Removable Carrier S M C
WDW-T,T1 Maverick '71-'74 2.79 8 in NL 28 Removable Carrier M M C
WDW-T,T1 Comet, '71-'73 2.79 8 in NL 28 Removable Carrier M M C
WDW-U,U1 Comet, Maverick '71-'77 3.00 8 in NL 28 Removable Carrier M M C
WDW-AA Comet, Maverick, Granada '75-'77 2.79 8 in NL 28 Removable Carrier S M C
WFS-B Maverick '70-71 3.00 8 in L 28 Removable Carrier SL M T
WFS-C Comet, Maverick '71 3.00 8 in L 28 Removable Carrier M M T

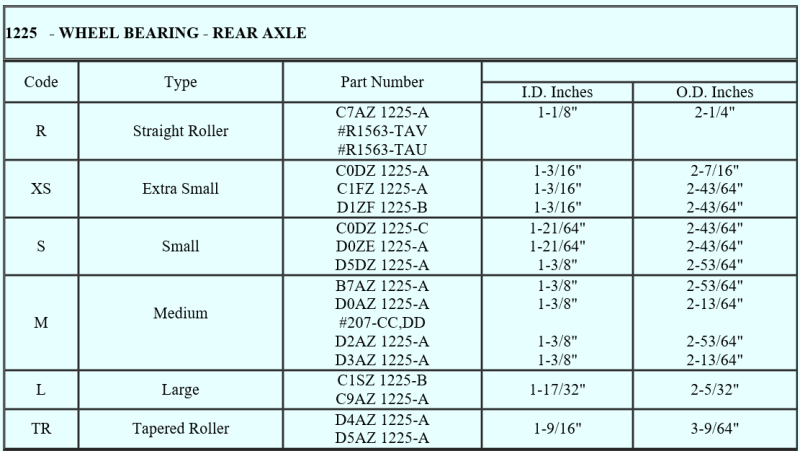

1225   - WHEEL BEARING - REAR AXLE

Code Type Part Number
I.D. Inches O.D. Inches
R Straight Roller C7AZ 1225-A
#R1563-TAV
#R1563-TAU
1-1/8"


2-1/4"


XS Extra Small C0DZ 1225-A
C1FZ 1225-A
D1ZF 1225-B
1-3/16"
1-3/16"
1-3/16"
2-7/16"
2-43/64"
2-43/64"
S Small C0DZ 1225-C
D0ZE 1225-A
D5DZ 1225-A
1-21/64"
1-21/64"
1-3/8"
2-43/64"
2-43/64"
2-53/64"
M Medium

B7AZ 1225-A
D0AZ 1225-A
#207-CC,DD
D2AZ 1225-A
D3AZ 1225-A
1-3/8"
1-3/8"

1-3/8"
1-3/8"
2-53/64"
2-13/64"

2-53/64"
2-13/64"
L Large C1SZ 1225-B
C9AZ 1225-A
1-17/32" 2-5/32"
TR Tapered Roller D4AZ 1225-A
D5AZ 1225-A
1-9/16" 3-9/64"
#  Industry Number



Bearing Size  XS=Extra Small...S=Small...M= Medium...L=Large

* C = Conventional  E = Equalock  T = Tractionloc

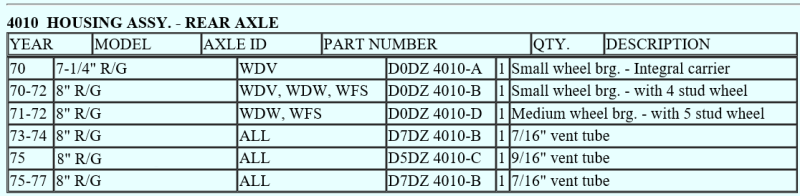

4010  HOUSING ASSY. - REAR AXLE
YEAR MODEL AXLE ID PART NUMBER QTY. DESCRIPTION
70 7-1/4" R/G WDV D0DZ 4010-A 1 Small wheel brg. - Integral carrier
70-72 8" R/G WDV, WDW, WFS D0DZ 4010-B 1 Small wheel brg. - with 4 stud wheel
71-72 8" R/G WDW, WFS D0DZ 4010-D 1 Medium wheel brg. - with 5 stud wheel
73-74 8" R/G ALL D7DZ 4010-B 1 7/16" vent tube
75 8" R/G ALL D5DZ 4010-C 1 9/16" vent tube
75-77 8" R/G ALL D7DZ 4010-B 1 7/16" vent tube






YEAR MODEL AXLE ID PART NUMBER QTY. DESCRIPTION

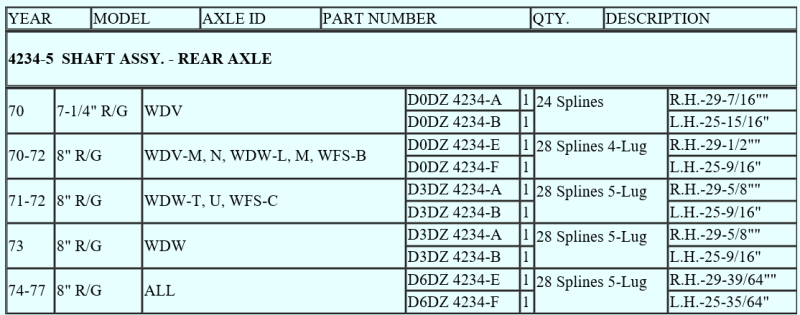

4234-5  SHAFT ASSY. - REAR AXLE

70 7-1/4" R/G WDV D0DZ 4234-A 1 24 Splines

R.H.-29-7/16""
D0DZ 4234-B 1 L.H.-25-15/16"
70-72 8" R/G WDV-M, N, WDW-L, M, WFS-B D0DZ 4234-E 1 28 Splines 4-Lug

R.H.-29-1/2""
D0DZ 4234-F 1 L.H.-25-9/16"
71-72 8" R/G WDW-T, U, WFS-C D3DZ 4234-A 1 28 Splines 5-Lug

R.H.-29-5/8""
D3DZ 4234-B 1 L.H.-25-9/16"
73 8" R/G WDW D3DZ 4234-A 1 28 Splines 5-Lug

R.H.-29-5/8""
D3DZ 4234-B 1 L.H.-25-9/16"
74-77 8" R/G ALL D6DZ 4234-E 1 28 Splines 5-Lug

R.H.-29-39/64""
D6DZ 4234-F 1 L.H.-25-35/64"

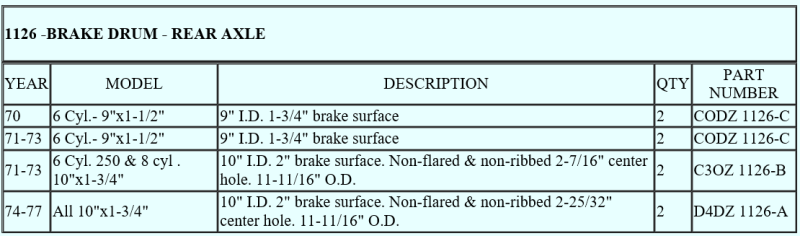

1126 -BRAKE DRUM - REAR AXLE

YEAR MODEL DESCRIPTION QTY PART NUMBER
70 6 Cyl.- 9"x1-1/2" 9" I.D. 1-3/4" brake surface 2 CODZ 1126-C
71-73 6 Cyl.- 9"x1-1/2" 9" I.D. 1-3/4" brake surface 2 CODZ 1126-C
71-73 6 Cyl. 250 & 8 cyl . 10"x1-3/4" 10" I.D. 2" brake surface. Non-flared & non-ribbed 2-7/16" center hole. 11-11/16" O.D. 2 C3OZ 1126-B
74-77 All 10"x1-3/4" 10" I.D. 2" brake surface. Non-flared & non-ribbed 2-25/32" center hole. 11-11/16" O.D. 2 D4DZ 1126-A

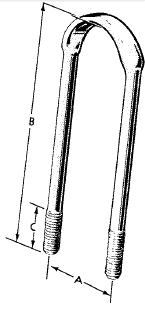

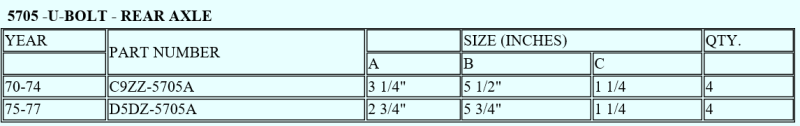

5705 -U-BOLT - REAR AXLE



YEAR PART NUMBER   SIZE (INCHES) QTY.
  A B C
70-74 C9ZZ-5705A 3 1/4" 5 1/2" 1 1/4" 4
75-77 D5DZ-5705A 2 3/4" 5 3/4" 1 1/2" 4
