Ford Maverick

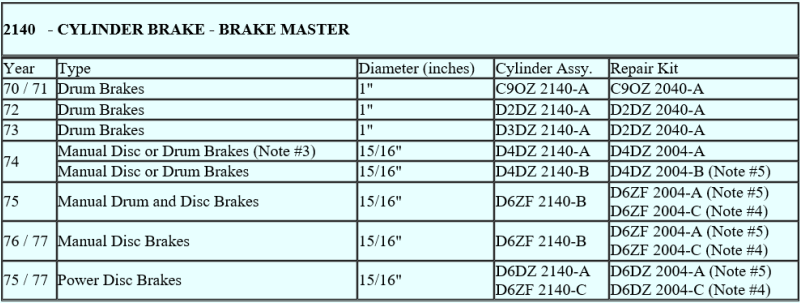

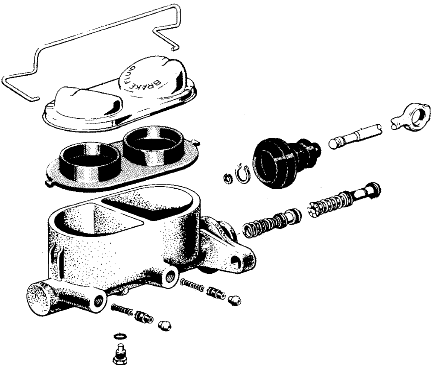

2140   - CYLINDER BRAKE - BRAKE MASTER

Year Type Diameter (inches) Cylinder Assy. Repair Kit
70 / 71 Drum Brakes 1" C9OZ 2140-A C9OZ 2040-A
72 Drum Brakes 1" D2DZ 2140-A D2DZ 2040-A
73 Drum Brakes 1" D3DZ 2140-A D2DZ 2040-A
74 Manual Disc or Drum Brakes (Note #3) 15/16" D4DZ 2140-A D4DZ 2004-A
Manual Disc or Drum Brakes 15/16" D4DZ 2140-B D4DZ 2004-B (Note #5)
75 Manual Drum and Disc Brakes 15/16" D6ZF 2140-B D6ZF 2004-A (Note #5)
D6ZF 2004-C (Note #4)
76 / 77 Manual Disc Brakes 15/16" D6ZF 2140-B D6ZF 2004-A (Note #5)
D6ZF 2004-C (Note #4)
75 / 77 Power Disc Brakes 15/16" D6DZ 2140-A
D6ZF 2140-C
D6DZ 2004-A (Note #5)
D6DZ 2004-C (Note #4)
Note #3  A new master cylinder with a slightly different port location and a plated reservoir was incorporated in production 4/1/74

Note #4  Kit repair Bendix cylinder identified with "BENDIX" on the housing.

Note #5  Kit repairs GPD cylinder identified with "D" stamped on the side without spot-face.

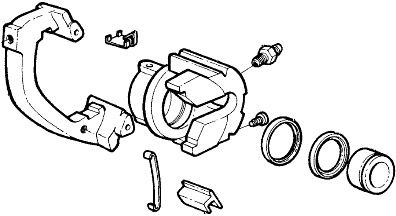

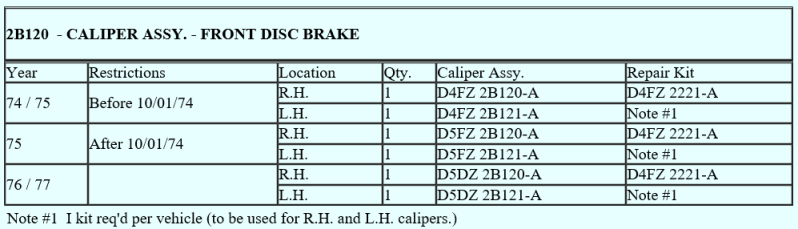

2B120  - CALIPER ASSY. - FRONT DISC BRAKE

Year Restrictions Location Qty. Caliper Assy. Repair Kit
74 / 75 Before 10/01/74 R.H. 1 D4FZ 2B120-A D4FZ 2221-A
L.H. 1 D4FZ 2B121-A Note #1
75 After 10/01/74 R.H. 1 D5FZ 2B120-A D4FZ 2221-A
L.H. 1 D5FZ 2B121-A Note #1
76 / 77   R.H. 1 D5DZ 2B120-A D4FZ 2221-A
L.H. 1 D5DZ 2B121-A Note #1
Note #1  I kit req'd per vehicle (to be used for R.H. and L.H. calipers.)

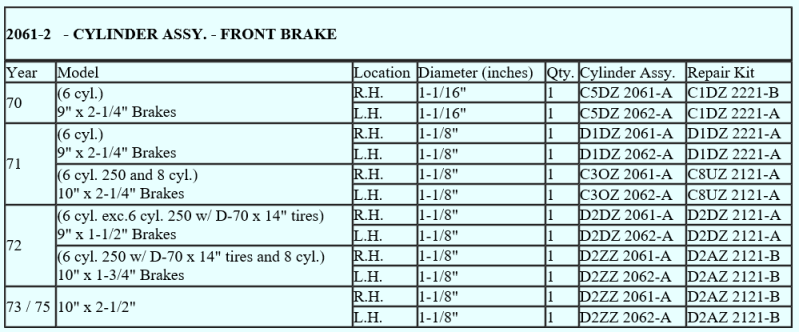

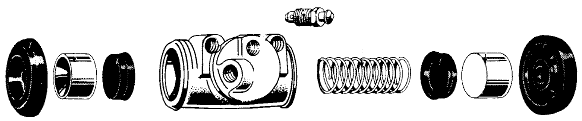

2061-2   - CYLINDER ASSY. - FRONT BRAKE

Year Model Location Diameter (inches) Qty. Cylinder Assy. Repair Kit
70 (6 cyl.)
9" x 2-1/4" Brakes
R.H. 1-1/16" 1 C5DZ 2061-A C1DZ 2221-B
L.H. 1-1/16" 1 C5DZ 2062-A C1DZ 2221-A
71 (6 cyl.)
9" x 2-1/4" Brakes
R.H. 1-1/8" 1 D1DZ 2061-A D1DZ 2221-A
L.H. 1-1/8" 1 D1DZ 2062-A D1DZ 2221-A
(6 cyl. 250 and 8 cyl.)
10" x 2-1/4" Brakes
R.H. 1-1/8" 1 C3OZ 2061-A C8UZ 2121-A
L.H. 1-1/8" 1 C3OZ 2062-A C8UZ 2121-A
72 (6 cyl. exc.6 cyl. 250 w/ D-70 x 14" tires)
9" x 1-1/2" Brakes
R.H. 1-1/8" 1 D2DZ 2061-A D2DZ 2121-A
L.H. 1-1/8" 1 D2DZ 2062-A D2DZ 2121-A
(6 cyl. 250 w/ D-70 x 14" tires and 8 cyl.)
10" x 1-3/4" Brakes
R.H. 1-1/8" 1 D2ZZ 2061-A D2AZ 2121-B
L.H. 1-1/8" 1 D2ZZ 2062-A D2AZ 2121-B
73 / 75 10" x 2-1/2" R.H. 1-1/8" 1 D2ZZ 2061-A D2AZ 2121-B
L.H. 1-1/8" 1 D2ZZ 2062-A D2AZ 2121-B

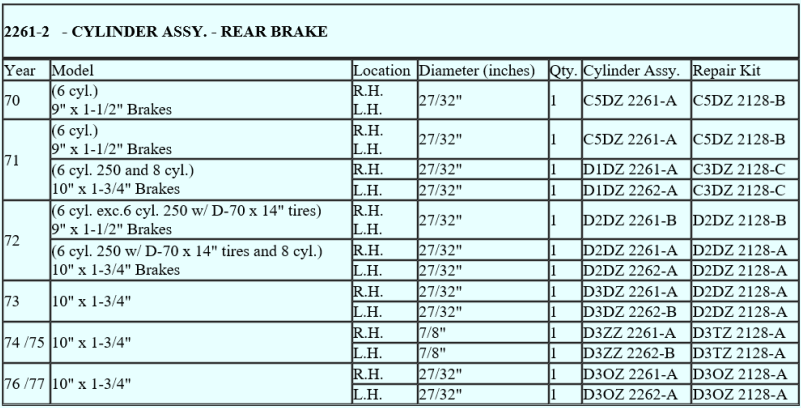

2261-2   - CYLINDER ASSY. - REAR BRAKE

Year Model Location Diameter (inches) Qty. Cylinder Assy. Repair Kit
70 (6 cyl.)
9" x 1-1/2" Brakes
R.H.
L.H.
27/32" 1 C5DZ 2261-A C5DZ 2128-B
71 (6 cyl.)
9" x 1-1/2" Brakes
R.H.
L.H.
27/32" 1 C5DZ 2261-A C5DZ 2128-B
(6 cyl. 250 and 8 cyl.)
10" x 1-3/4" Brakes
R.H. 27/32" 1 D1DZ 2261-A C3DZ 2128-C
L.H. 27/32" 1 D1DZ 2262-A C3DZ 2128-C
72 (6 cyl. exc.6 cyl. 250 w/ D-70 x 14" tires)
9" x 1-1/2" Brakes
R.H.
L.H.
27/32" 1 D2DZ 2261-B D2DZ 2128-B
(6 cyl. 250 w/ D-70 x 14" tires and 8 cyl.)
10" x 1-3/4" Brakes
R.H. 27/32" 1 D2DZ 2261-A D2DZ 2128-A
L.H. 27/32" 1 D2DZ 2262-A D2DZ 2128-A
73 10" x 1-3/4" R.H. 27/32" 1 D3DZ 2261-A D2DZ 2128-A
L.H. 27/32" 1 D3DZ 2262-B D2DZ 2128-A
74 /75 10" x 1-3/4" R.H. 7/8" 1 D3ZZ 2261-A D3TZ 2128-A
L.H. 7/8" 1 D3ZZ 2262-B D3TZ 2128-A
76 /77 10" x 1-3/4" R.H. 27/32" 1 D3OZ 2261-A D3OZ 2128-A
L.H. 27/32" 1 D3OZ 2262-A D3OZ 2128-A

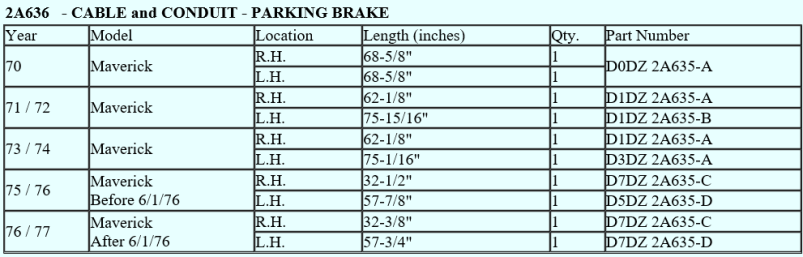

2A636   - CABLE and CONDUIT - PARKING BRAKE
Year Model Location Length (inches) Qty. Part Number
70 Maverick R.H. 68-5/8" 1 D0DZ 2A635-A
L.H. 68-5/8" 1
71 / 72 Maverick R.H. 62-1/8" 1 D1DZ 2A635-A
L.H. 75-15/16" 1 D1DZ 2A635-B
73 / 74 Maverick R.H. 62-1/8" 1 D1DZ 2A635-A
L.H. 75-1/16" 1 D3DZ 2A635-A
75 / 76 Maverick
Before 6/1/76
R.H. 32-1/2" 1 D7DZ 2A635-C
L.H. 57-7/8" 1 D5DZ 2A635-D
76 / 77 Maverick
After 6/1/76
R.H. 32-3/8" 1 D7DZ 2A635-C
L.H. 57-3/4" 1 D7DZ 2A635-D
