Maverick and Comet Exploded Views
Brakes
Click Thumbnail for Larger View...Use Back Button to
Return
Might have to left click image again to see
full size if your settings are set to auto resize

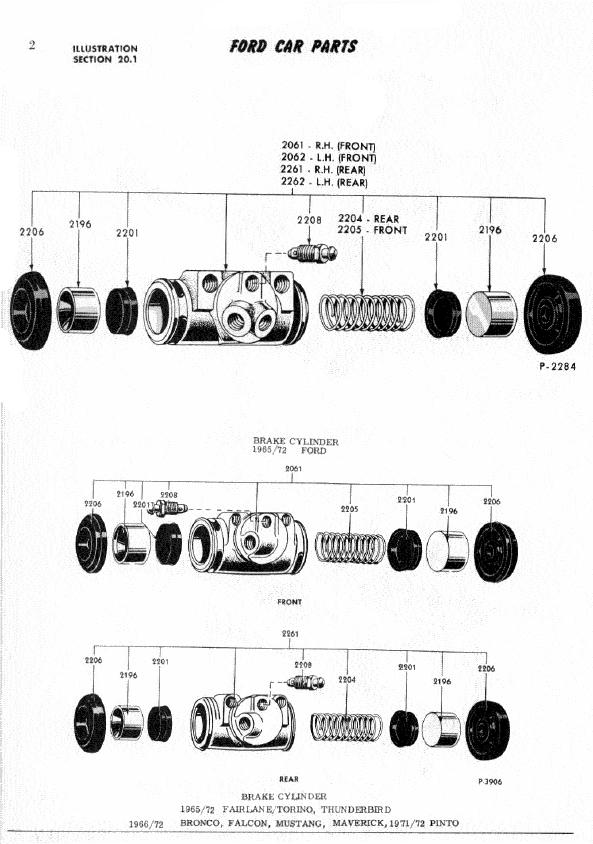

 71-72 Wheel Cylinder |

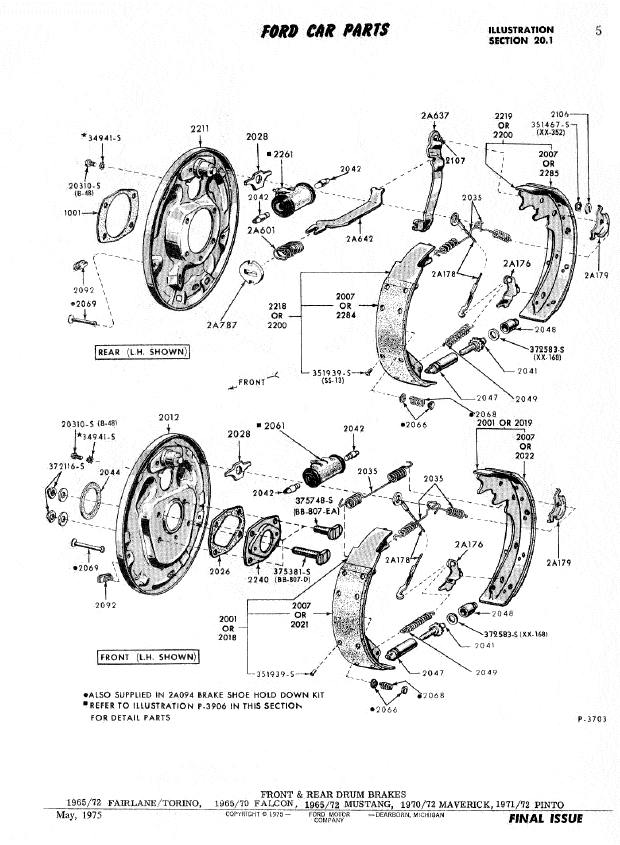

 70-72 Brake Shoe |

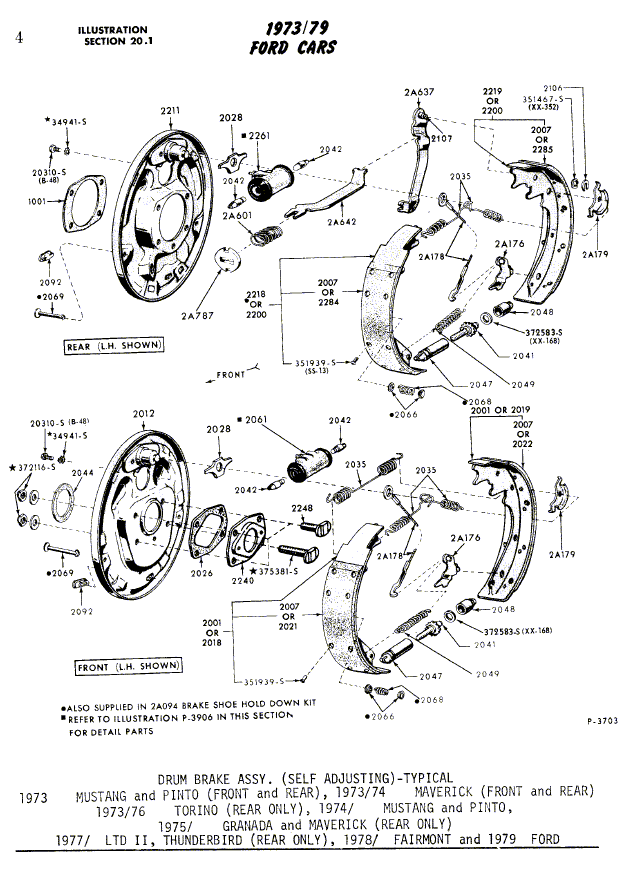

 73-77 Brake Shoe |

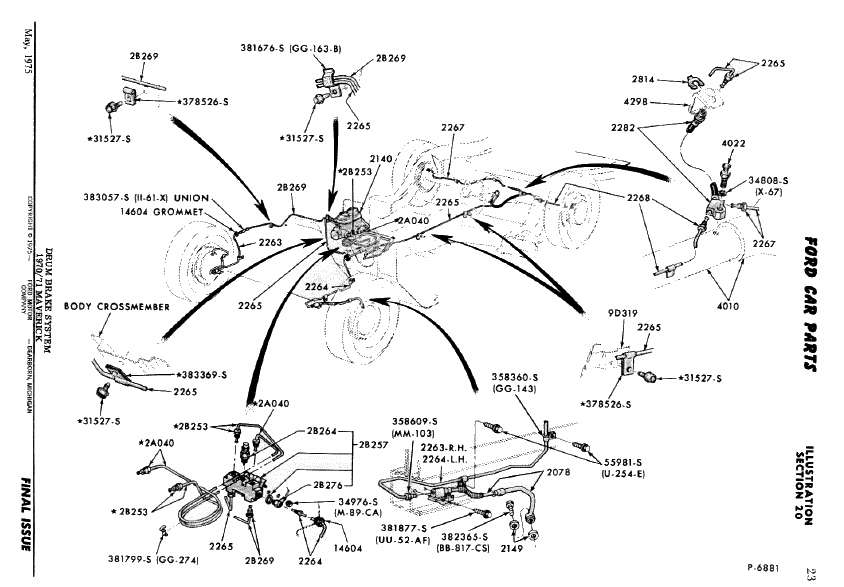

 70-71 Brake System |

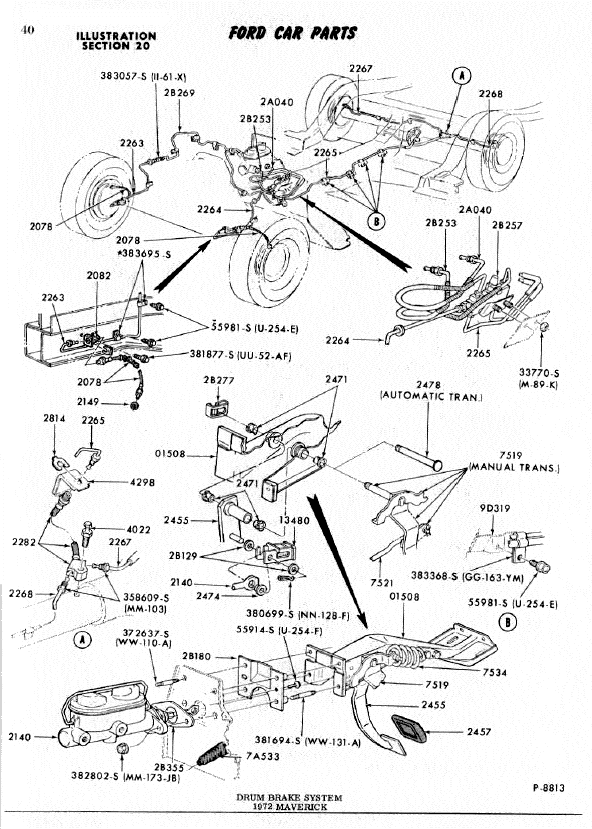

 72 Brake System |
 73-74 Brake System |

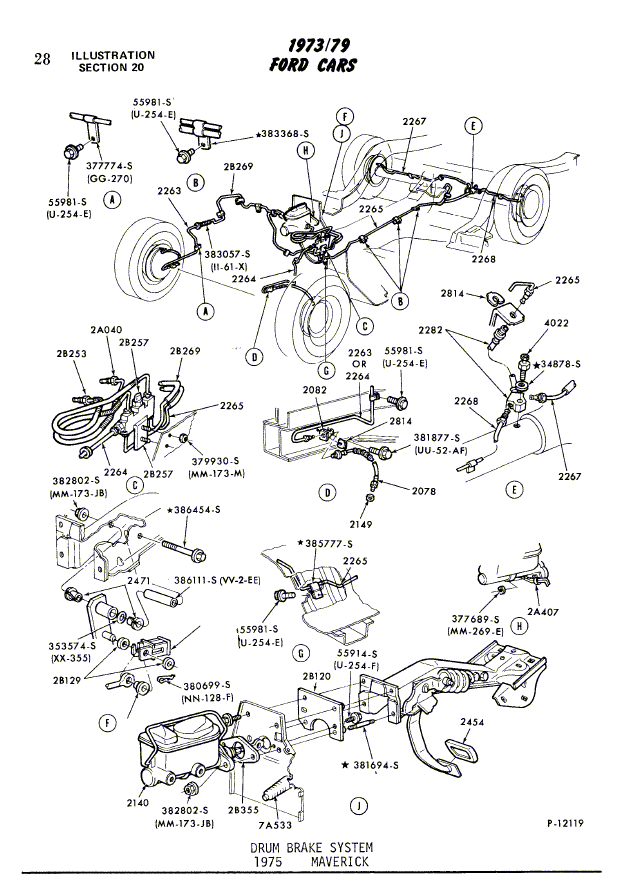

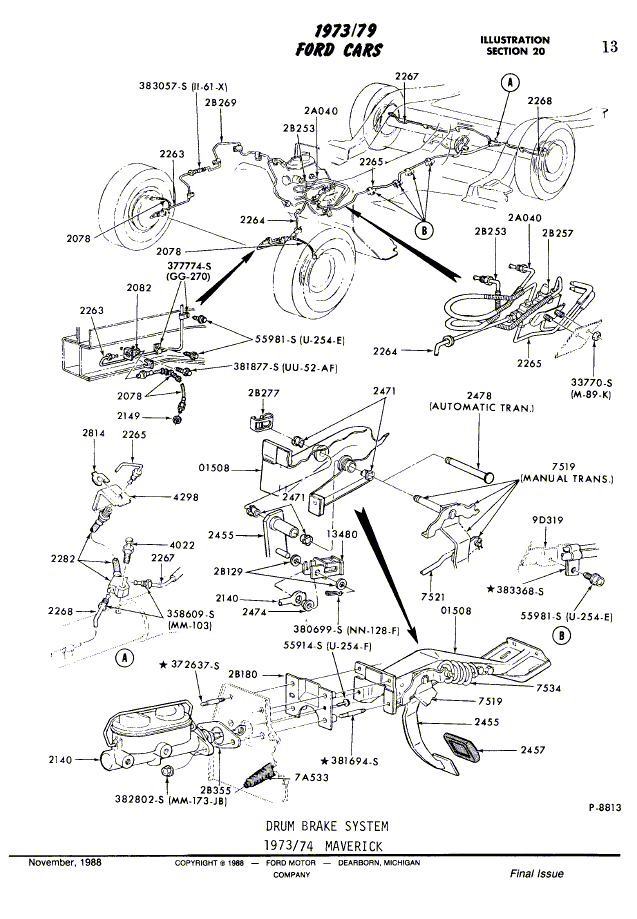

 75 Drum Brake System |
 74 Disc Brake System |

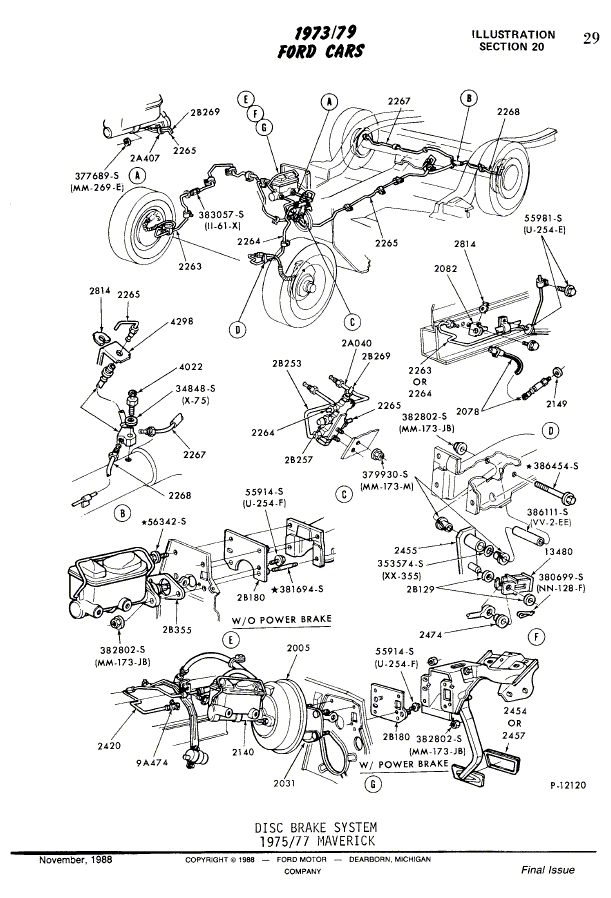

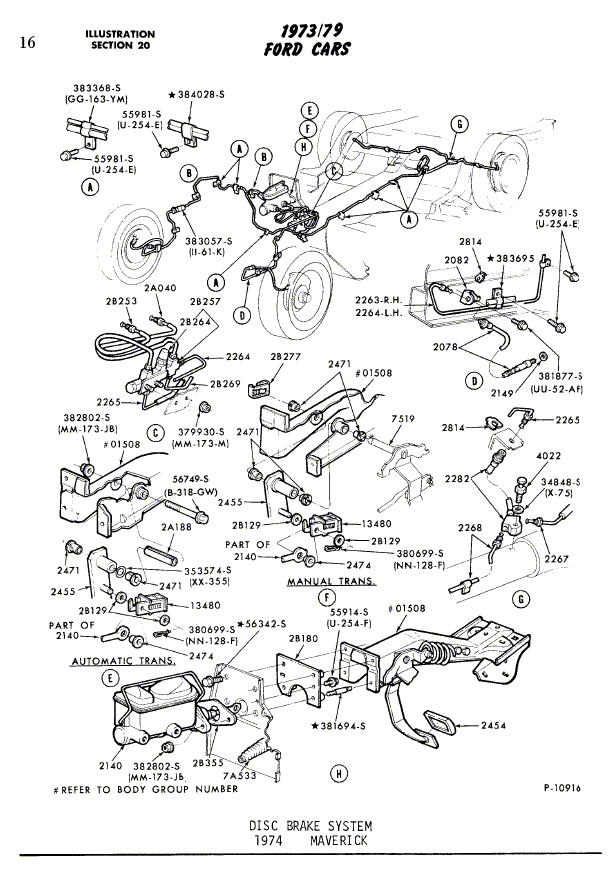

 75-77 Disc Brake System |

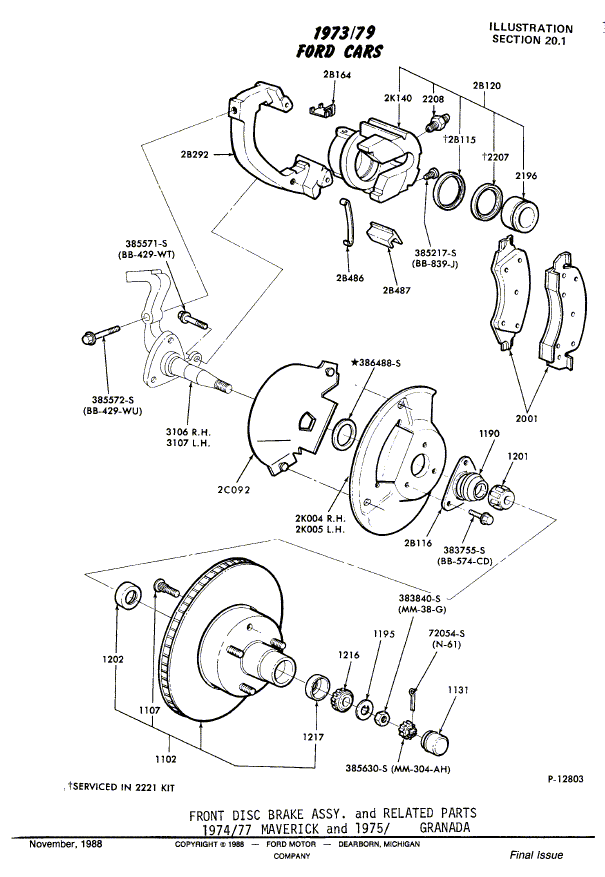

 74-77 Disc Brake Assy. |

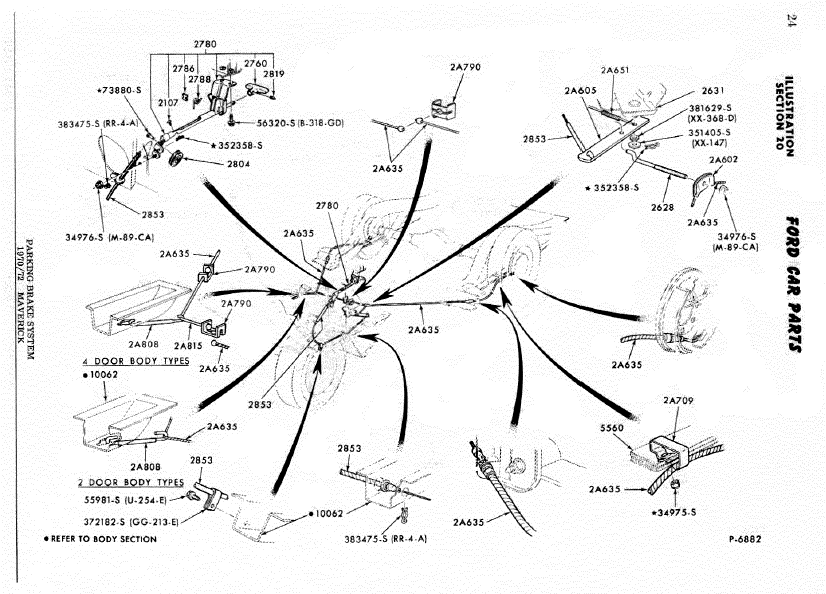

 75 Parking Brake |

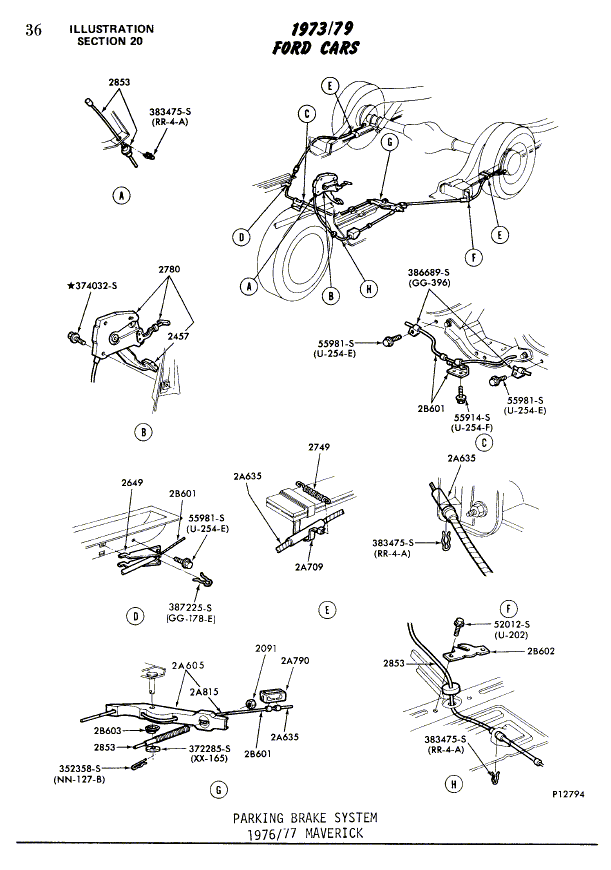

 76-77 Parking Brake |
 70-74 Parking Brake |

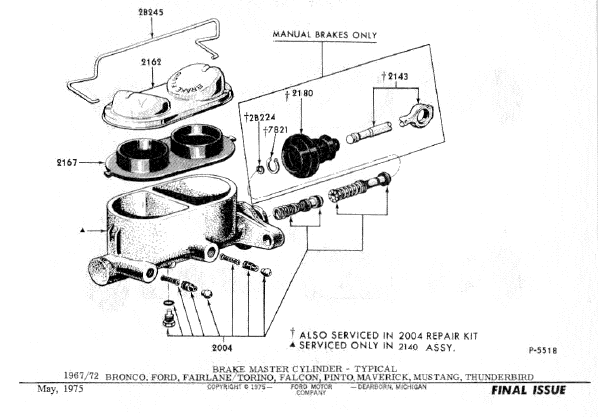

 70-77 Master Cylinder |
