Maverick and Comet Repair

FRONT WHEEL BEARINGS - ADJUSTMENT

The front wheels each rotate on a set of opposed, tapered roller bearings as shown in the accompanying illustration. The grease retainer at the inside of the hub prevents lubricant from leaking into the brake drum.

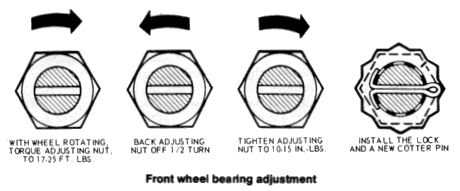

Adjustment of the wheel bearings is accomplished as follows: Lift the car so that the wheel and tire are clear of the ground, then remove the grease cap and remove excess grease from the end of the spindle. Remove the cotter pin and nut lock shown in the illustration. Rotate the wheel, hub and drum assembly while tightening the adjusting nut to 17-25 ft. lbs. in order to seat the bearings. Back off the adjusting nut one half turn, then retighten the adjusting nut to 10-15 in. Ibs. (inch-pounds). Locate the nut lock on the adjusting nut so that the castellation on the lock are lined up with the cotter pin hole in the spindle. Install a new cotter pin, bending the ends of the cotter pin around the castellated flange of the nut lock. Check the front wheel for proper rotation, then install the grease cap. If the wheel still does not rotate properly, inspect and clean or replace the wheel bearings and cups.
