'74 Maverick

Here are some pictures of some of the small projects.

I'm using my old Center Lines and tires I had on my Falcon.

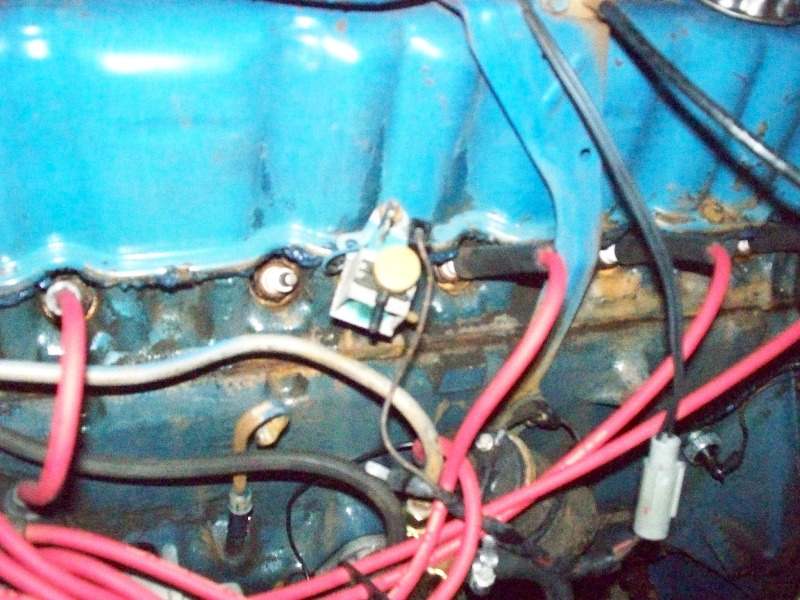

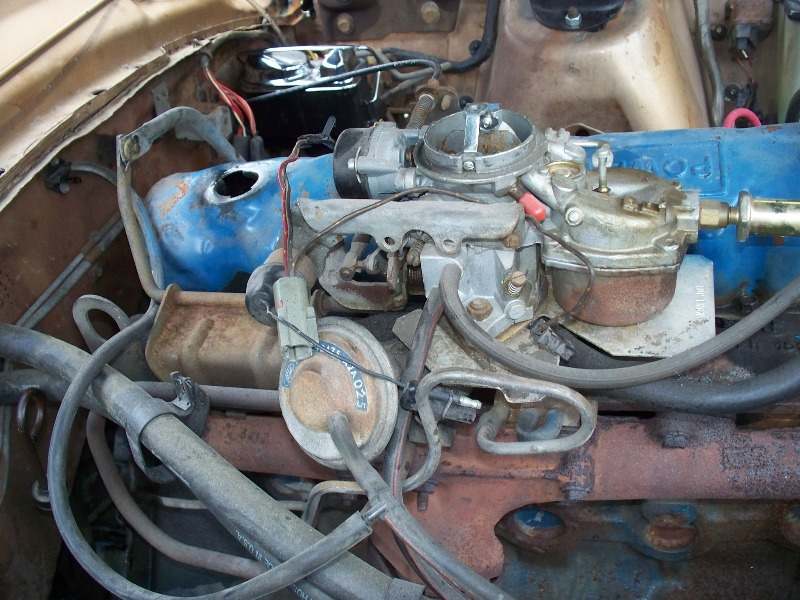

Removed all the BS under the hood including the vacuum operated duct valve, The Transmission Regulated Spark Control System, Coolant Spark Control, Cold Temperature Activated Vacuum System, EGR valve.

The timing chain and gears will be replaced with pre-emission timing gear for more aggressive valve timing and low end torque.

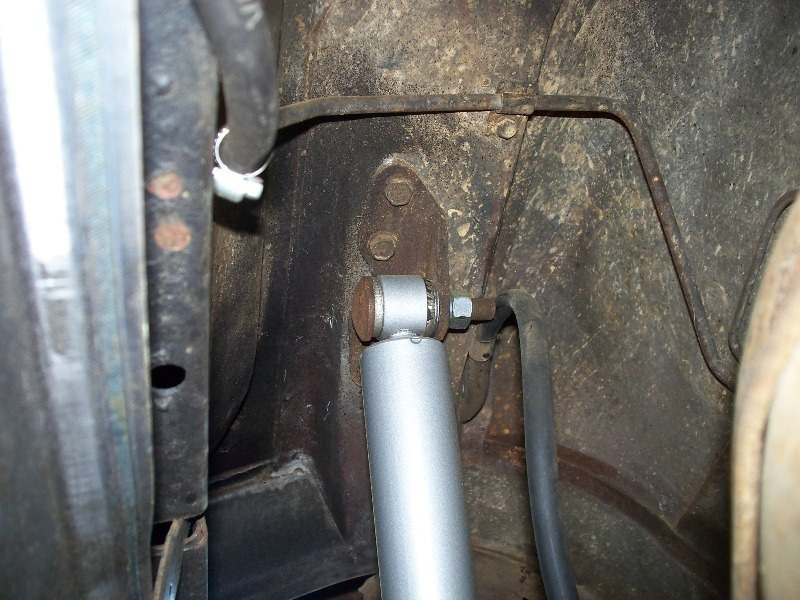

I replaced the worn out rear shocks with KYB GR2 , axle bearings and seals. I replaced the U-joints at this time also

New alternator, Optima Red Top battery and brake light switch.

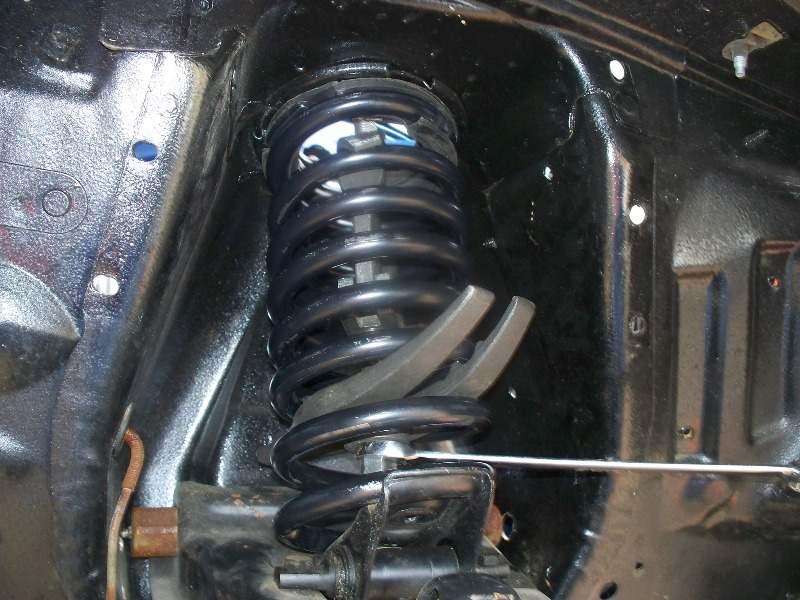

Replaced front coil springs with heavy duty Moog 8304 after I cut one coil and KYB GR2 shocks are now on all 4 corners.

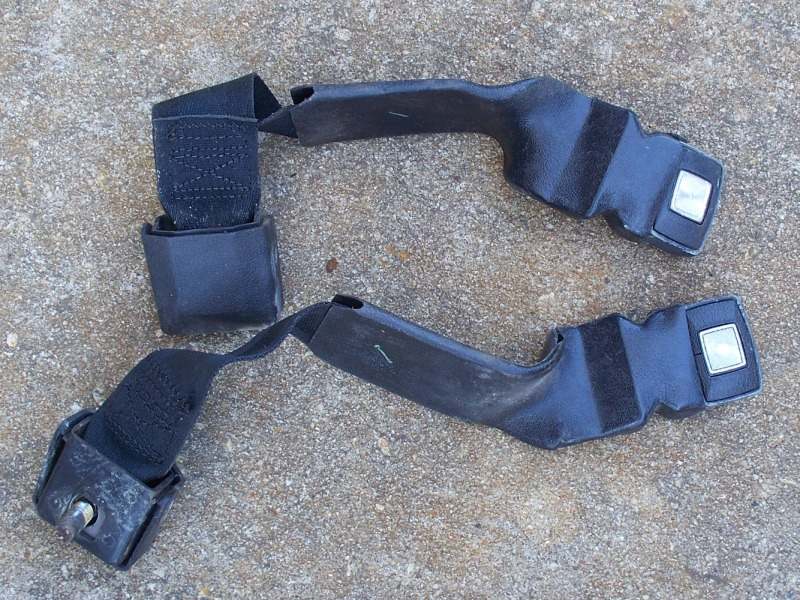

The '74  4-door seatbelts I got from the junkyard didn't want to act right on a 2-door. With the seat all the way back the belt buckle would not reach  though the back seat cushion.


Old Centerlines 15 x 8 x w/5.25 New Old Wheels Locking Relay For CATV

3-Way Valve For CTAV Rear Shocks New Shock Mounting Bolt

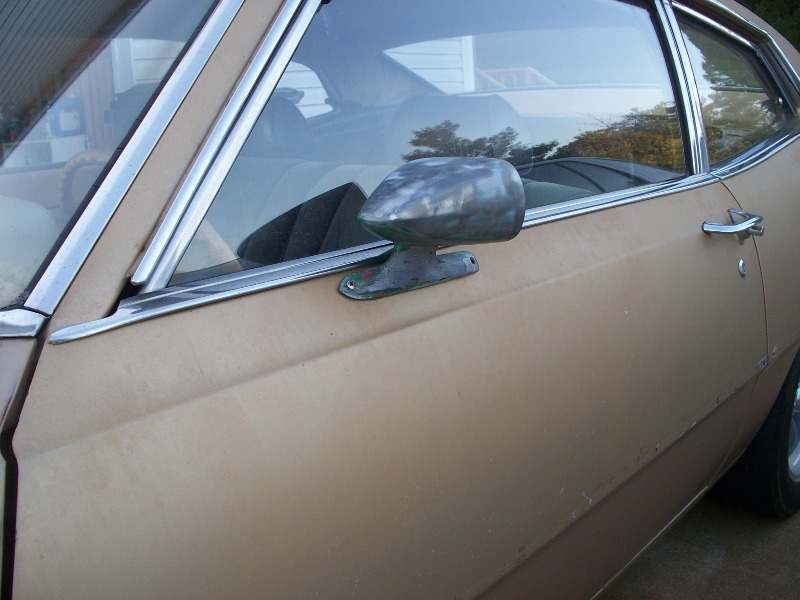

Old Shock Mounting Bolt New Bearing Retainer is Smaller Sport Mirror Installed

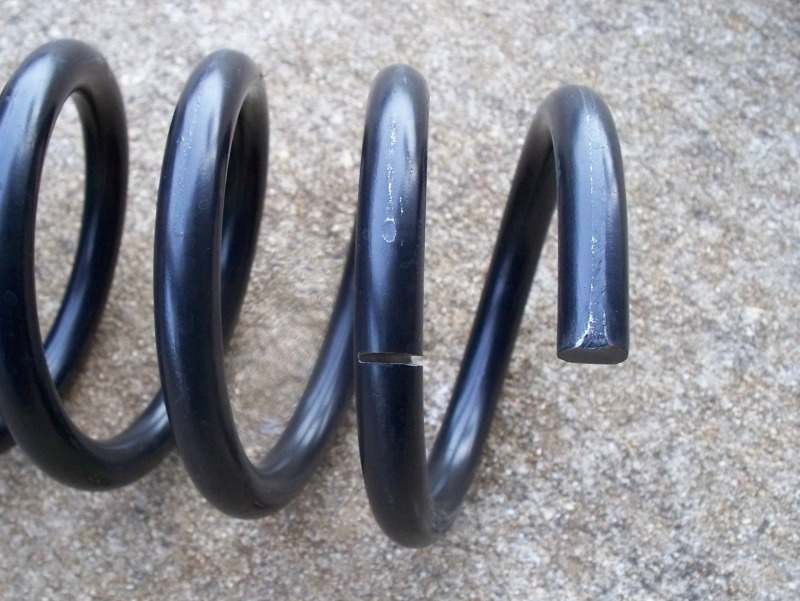

Seatbelt Buckle Cut One Coil Coil Spring
