Subframe Connectors

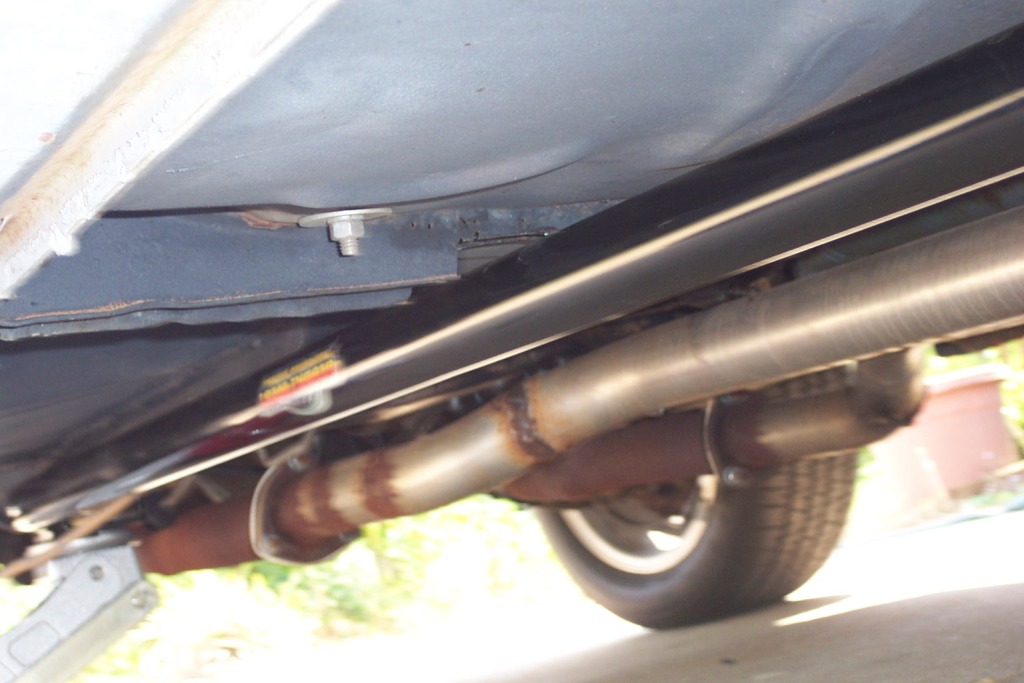

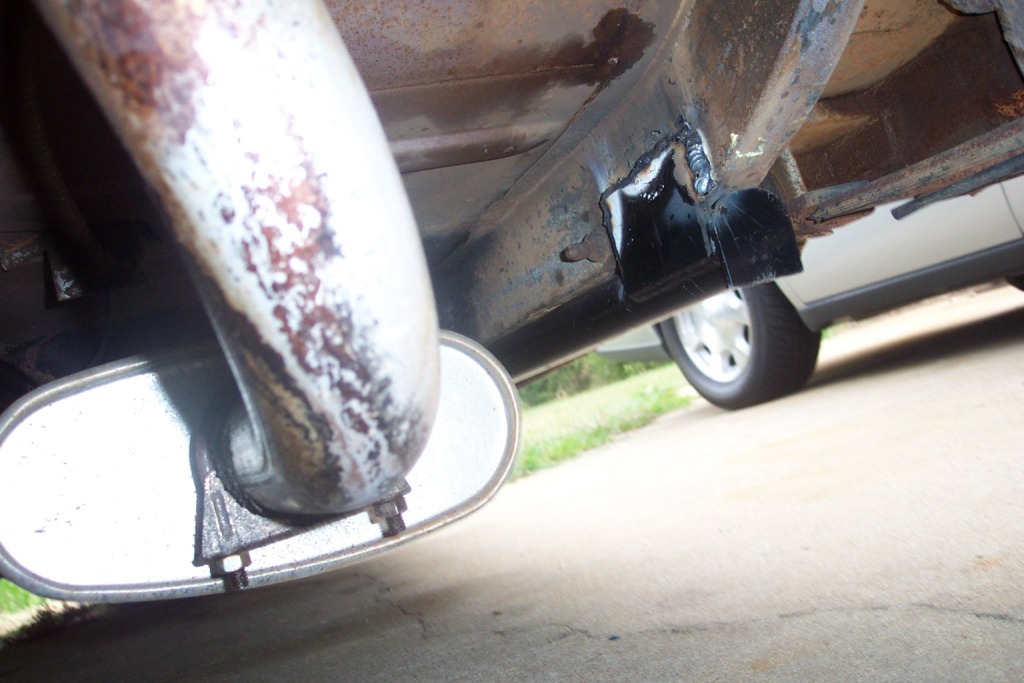

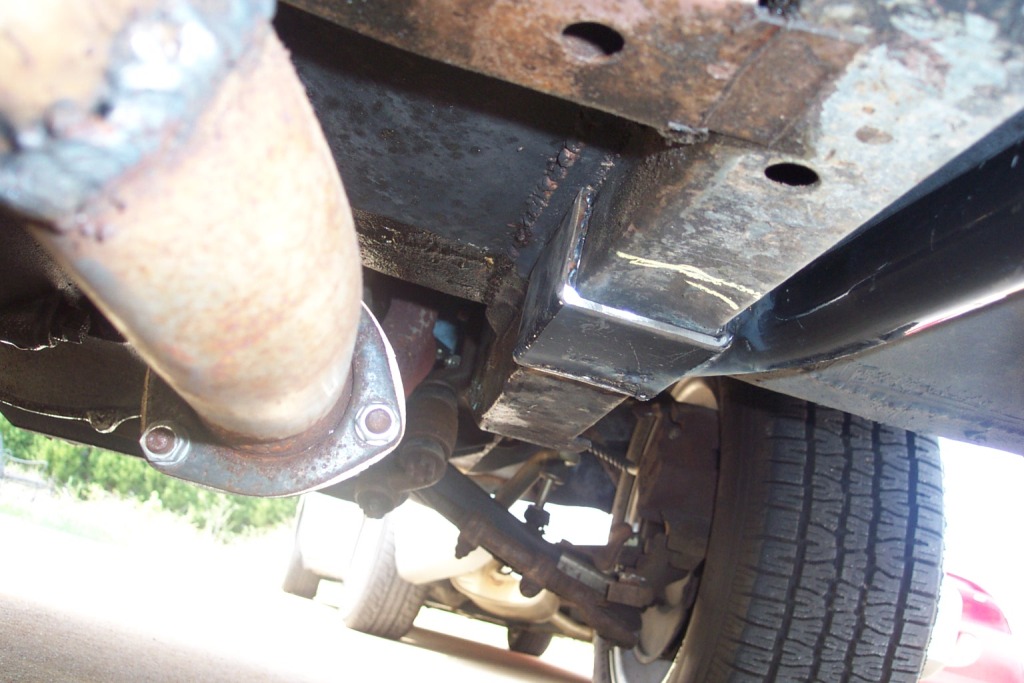

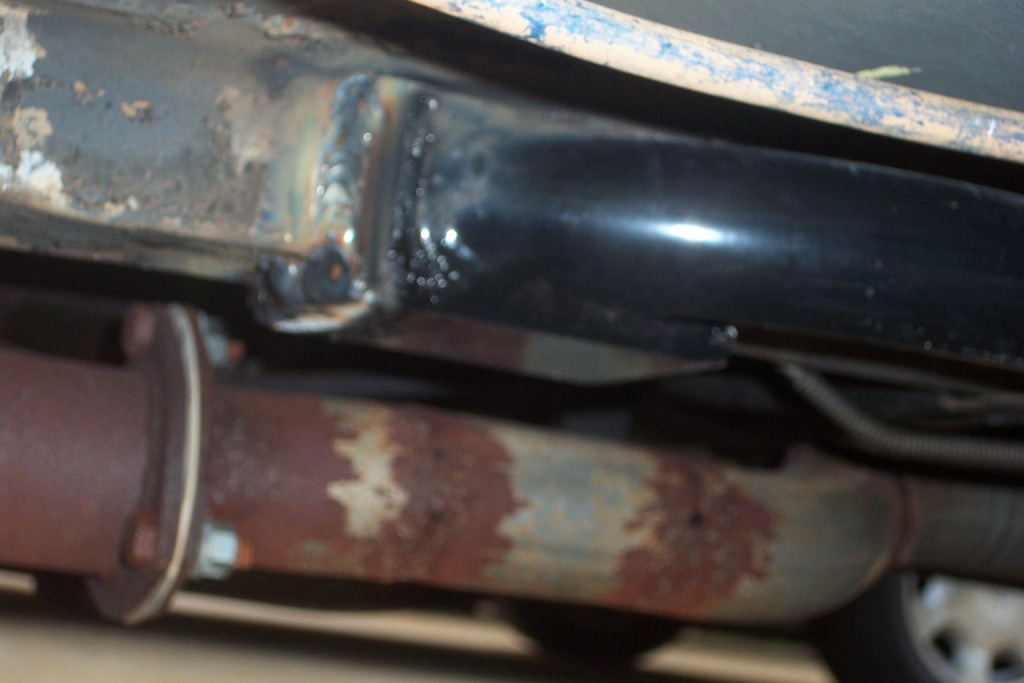

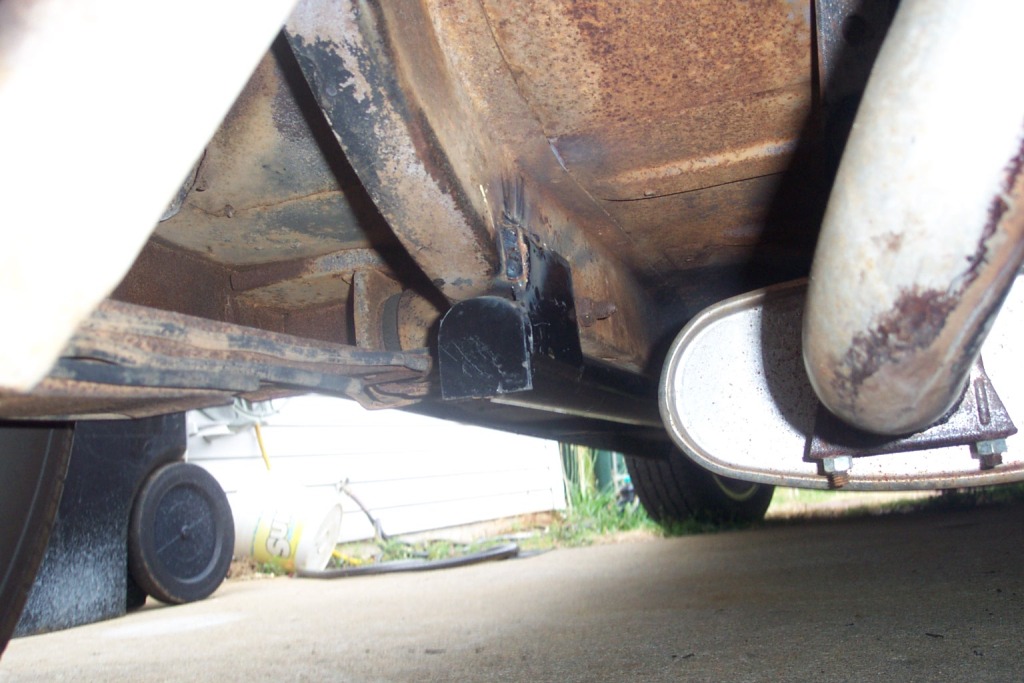

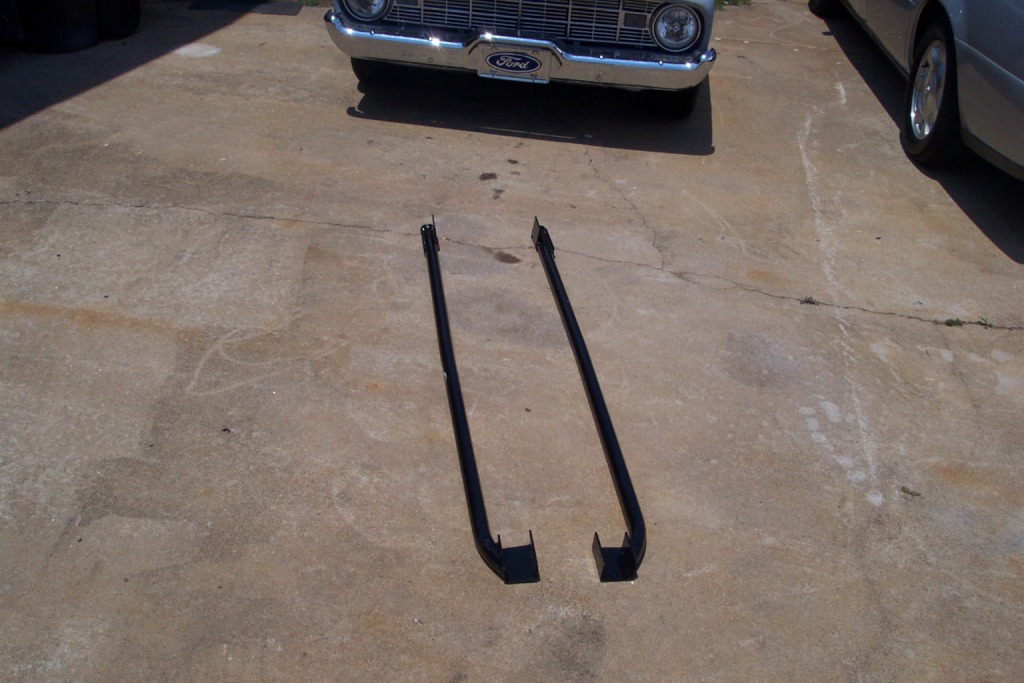

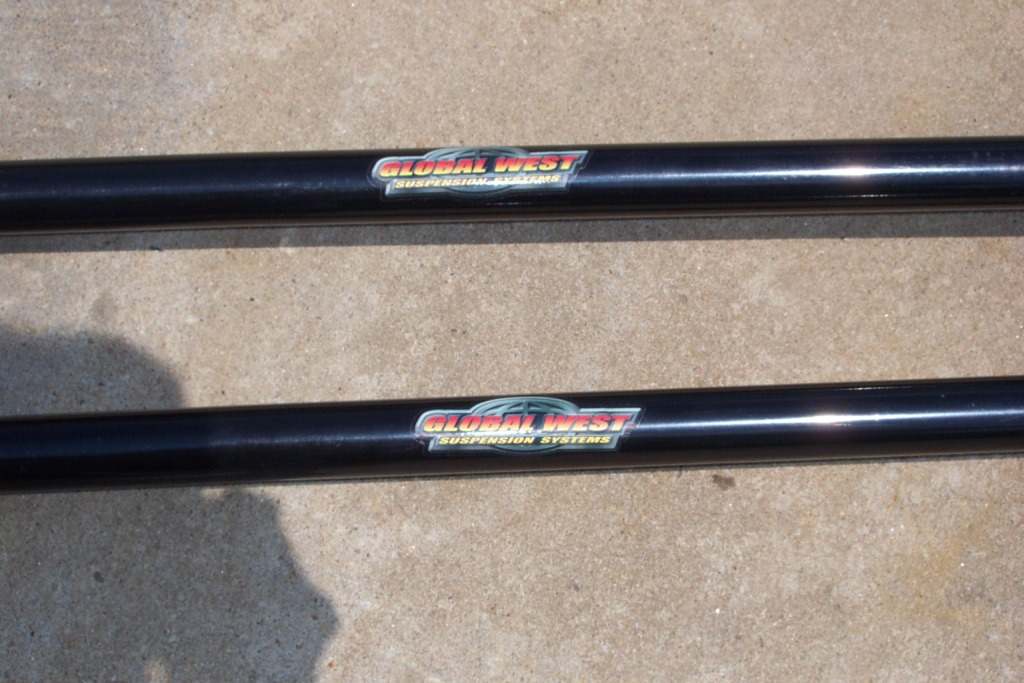

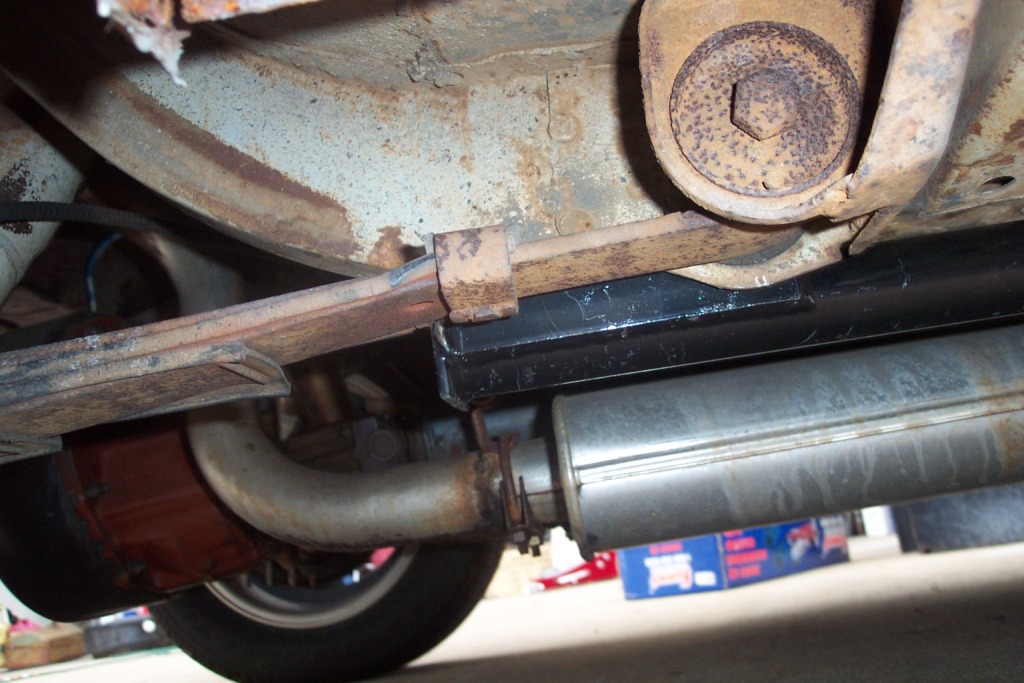

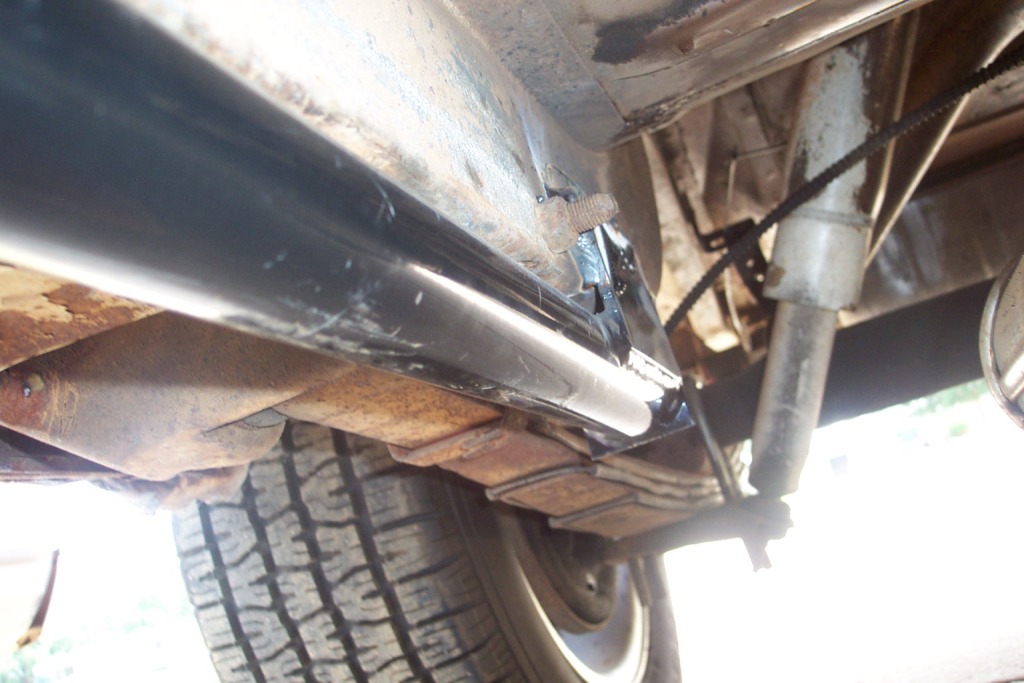

I purchase these Global West subframe connectors from Jeg's. I added some 18 gauge filler metal inside the channel to get a snug fit on my frame rail. I used a C-clamp to pull (1/4 in.) the subframe connector flat with the rear frame rail on one side. This held it in place long enough to weld. The other side fit like a glove. The seat support brace was notched for clearance. Other than that, and prepping the frame rails to get a clean bead when welding, it is a simple project. I could feel the difference before I got my foot off the clutch. This really tighten up the feel and handling. Thanks PBrown for crawling under your Falcon with a measuring tape and getting me the numbers I needed.
